Ebike Controller: How Do You Select The Right 48V Replacement?

Your ebike controller broke and left your bike powerless. Now you face a confusing market full of replacements that all claim to be the best. You found the right place to get help. The ebike controller acts as the "brain" of your machine. Picking the right 48V replacement is very important for performance, safety, and preventing costly damage to your motor or battery. Trying to navigate this without a plan can lead to buying the wrong part and wasting time and money.

We will give you a clear, step-by-step guide to make this process simple. Follow these steps, and you'll buy your next ebike controller 48v with complete confidence and get back on the road quickly and safely.

Pre-Purchase Checklist

Before you start shopping online, you need to work with your own e-bike first. Getting this information prevents buying mistakes and turns a confusing task into a simple matching game. This check of your existing system is the most important, time-saving step in the whole process. You must know your existing parts well to find a compatible replacement. Don't guess about any details. Grab your phone, a notepad, and let's create a technical profile of your e-bike.

Document Your System

The Checklist:

Battery Voltage: First, make sure you have a 48V system. The voltage is almost always printed on the battery case or label. It must say 48V.

Battery's Max Continuous Discharge: This is a very important safety number. Look on the battery label or its original spec sheet for the BMS (Battery Management System) rating. It will be listed in Amps (A), for example, "30A Max Continuous." This number is your absolute safety limit.

Motor Wattage & Type: Check the side of your motor hub or casing. There should be a label showing its power rating (like 500W, 750W, 1000W) and its type, which is usually a Brushless DC Hub Motor.

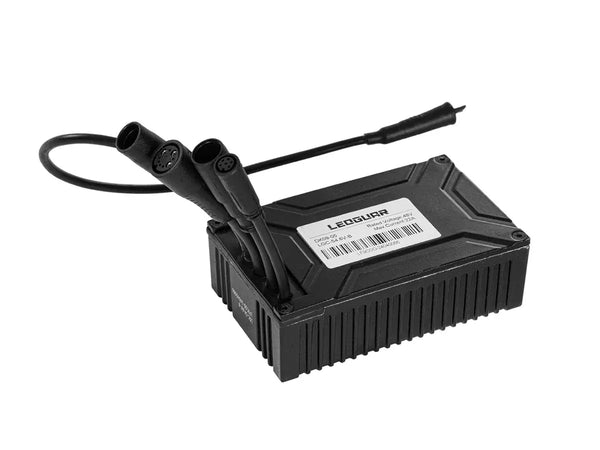

Old Controller Specs: If you can reach the old ebike controller, look at it for labels. Take a clear photo. You need to find its Voltage (V), which must be 48V, its Current (A), often listed as "Rated Current" and "Max Current" (like 22A), and its Low Voltage Cutoff or LVC (like 40V)

Connectors: This step cannot be skipped. Take clear, well-lit photos of every single connector coming from your old controller. This includes the main power plug to the battery, the thick motor phase wires, the multi-pin motor hall sensor plug, and all the smaller plugs for your display, throttle, and brake levers.

The Compatibility Trinity

With your system data collected, you can now look at potential replacements. Success depends on matching three main technical areas. Getting any of these wrong will result in a part that won't work, will perform poorly, or could damage your e-bike. We call this the compatibility trinity: Voltage, Amperage, and Connectors.

Pillar 1: Voltage

This is the golden rule, and it cannot be broken. Voltage must match exactly. If you have a 48V battery, you must use a 48V ebike controller. There are no exceptions to this rule.

The risks of a mismatch are serious and immediate. If you connect a 36V controller to your 48V battery, the extra voltage will likely destroy the controller's parts instantly. On the other hand, using a 60V controller on a 48V system might not work at all, as its Low Voltage Cutoff (LVC) will be set too high, causing it to think the fully charged 48V battery is empty.

Pillar 2: Amperage

Amperage, or current (A), controls how much power your controller can send to the motor. The simple formula is Watts = Volts x Amps. This determines your e-bike's acceleration and hill-climbing ability. Matching amperage involves two key rules.

Rule 1: Do not go over your battery's limit. The new controller's maximum current rating must be less than or equal to your battery's maximum continuous discharge rating (the BMS spec you found earlier). If your battery BMS is rated for 30A, choosing a 40A controller is asking for trouble. It will try to pull more current than the battery can safely provide, causing the BMS to constantly shut down power to protect itself, or in a worst case, leading to battery damage.

Rule 2: Match the motor's needs. A controller with an amp rating that is too low will give your motor less power, resulting in slow, disappointing performance. On the other hand, a controller with a much higher amp rating than the original can cause a motor not designed for it to overheat and fail early.

As a general guide:
- For standard 500W-750W motors used for commuting, a 48V controller with a 20A to 25A peak current is a very common and safe pairing.
- For more powerful 1000W+ motors intended for high performance or steep hills, look for a 48V controller in the 30A to 40A range, but only if you have confirmed your battery and motor are built to handle that load.

For advanced tuning, enthusiasts can use tools like powerful e-bike performance simulators to model how different amperage ratings will affect speed, torque, and range for their specific setup.

Pillar 3: Connectors

This is the physical connection between your parts and the most common point of failure for DIY replacements. A controller can be a perfect match on paper for voltage and amps, but it's useless if you can't plug it in. This is why you took photos in the checklist step. Carefully compare the connectors on a potential new controller with the photos of your old ones. Pay close attention to the number of pins, the shape, and the color-coding.

Common Connector Types:
- Main Power: Often yellow XT60, orange XT90, or red/black Anderson Powerpole connectors.
- Motor Phase/Hall: These are often waterproof, multi-pin circular connectors from brands like Julet or Higo. Count the pins carefully (like 9-pin motor connector).
- Peripherals: Your throttle, brake sensors, and display typically use smaller 2, 3, 4, or 5-pin Julet/Higo or JST connectors, often color-coded for easy identification.

What if they don't match? You have a few options:
- Best Option: Focus on finding a controller with identical connectors. The easiest path is often buying a full kit (controller, display, and throttle) from a single brand to guarantee compatibility.
- Alternative: Search for connector adapters. These small parts can convert one plug type to another, but they add another potential point of failure.
- Expert-Only Option: Rewiring the connectors. We strongly advise against this unless you are highly experienced with soldering and reading wiring diagrams. An incorrect connection can instantly and permanently damage your new controller, display, or motor hall sensors.

Controller Technology Types

Beyond the core specs, the technology inside the ebike controller determines the quality of your ride. The two main types are Square Wave and Sine Wave. Understanding the difference helps you choose between a budget-friendly option and a premium ride experience.

Square Wave Controllers

These are the traditional workhorses of the e-bike world. They deliver power to the motor in blocky, distinct on-off pulses.

• Pros: They are cheap to make, highly reliable, and can feel very "punchy" or powerful at full throttle.
• Cons: The main drawback is noise; they produce a very distinct, audible hum from the motor, especially under load. They can also feel jerky or less refined at low speeds or during initial acceleration. Overall, they are less efficient than their sine wave counterparts.
  Best For: Riders on a strict budget, or for utility e-bikes where raw power at full throttle is valued more than refinement and quiet operation.

Sine Wave (FOC) Controllers

Sine wave controllers, especially those using Field-Oriented Control (FOC), represent a more advanced technology. They deliver power in a smooth, continuous wave, which more closely matches the AC power motors are designed to use efficiently.

• Pros: The main benefit is a much quieter, almost silent motor operation. Power delivery is incredibly smooth and natural, making acceleration feel more like a natural extension of your pedaling. They are also more efficient, especially at partial throttle, which can translate to a slight increase in range.
• Cons: They are more complex and therefore more expensive. Some riders feel they are slightly less "punchy" from a dead stop compared to the raw kick of a square wave controller.
• Best For: The vast majority of riders. If you are a commuter or value a refined, sophisticated, and quiet ride, a sine wave controller is a worthwhile upgrade.

The experience of moving from a square wave to a sine wave ebike controller is immediately noticeable. The loud hum of the motor is replaced by a gentle whir, and the jerky starts from a traffic light become a smooth, controlled roll-on of power.

It transforms the feel of the ride from a raw machine to a sophisticated vehicle.

Final Practical Checks

You've matched the core specs and chosen your technology. Before you click "buy," there are a few final, practical details to confirm. Overlooking these can lead to the frustration of receiving a technically perfect part that simply doesn't work for your bike.

Size and Mounting

Controllers are not one-size-fits-all. Measure the physical space where your old controller was mounted, whether it's inside the frame, in a downtube, or in a separate controller box. Compare these dimensions to the product specifications of the new ebike controller. Be aware that higher-amperage controllers are almost always physically larger because they require bigger parts and more substantial heat sinks to manage the extra heat.

Weatherproofing IP Rating

If you're a commuter or ride in all weather, check the controller's IP (Ingress Protection) rating. A rating like IP65 indicates it is dust-tight and protected against water jets. Choosing a controller with at least some certified water resistance provides peace of mind. If your chosen controller isn't rated, make sure you can mount it in a location that is well-protected from rain and splashes.

Extra Feature Considerations

• Display Compatibility: Does the new controller require a specific display model to function (like a KT controller needs a KT display), or can it run "headless" without one? Check the product description carefully.
• Regenerative Braking: This feature, found on some more advanced controllers, uses the motor to slow the bike down, recharging the battery slightly in the process. It's a "nice-to-have" for most but can be genuinely useful for riders in very hilly areas to save on brake pad wear and add a little range.
• Programmability: Some high-end controllers allow for tuning via a PC connection or a Bluetooth app. This gives advanced users ultimate control over throttle response, power levels, and other parameters. For those building high-power or fully custom e-bikes, enthusiast communities offer deeply technical discussions on high-power setups and programmable controllers.

Making Your Choice

Selecting the right 48V ebike controller replacement doesn't have to be scary. By following a step-by-step process, you can ensure a successful and satisfying outcome. The key is to do your homework first. The time you spend checking your system is the best investment you can make.

Let's recap the critical path. Start by documenting your battery voltage, BMS amp limit, motor wattage, and all connector types. With this data in hand, filter your search based on the non-negotiable compatibility trinity: an exact 48V match, an amperage rating that respects your battery's limits while meeting your motor's needs, and physically matching connectors.

Finally, make an informed choice between the raw power of a square wave controller and the smooth, quiet refinement of a sine wave model based on your budget and riding style. By checking these boxes, you move from a position of confusion to one of control. You are now equipped to choose your next ebike controller with the confidence of an expert and get back to enjoying your ride.

FAQ

Q: Can I use a 36V controller with my 48V battery?
A: No, absolutely not. Voltage must match exactly. Using a 36V controller with a 48V battery will likely destroy the controller instantly due to overvoltage. Always use a 48V controller with a 48V battery.

Q: What happens if I choose a controller with higher amperage than my battery can handle?
A: If your controller's amp rating exceeds your battery's BMS limit, the battery will shut down to protect itself whenever you try to draw too much power. This causes frustrating power cuts and can potentially damage your battery over time.

Q: Do all connectors need to match exactly for the controller to work?
A: Yes, all connectors must match or you need proper adapters. The main power, motor phase wires, hall sensors, throttle, brake sensors, and display all need compatible connections. Mismatched connectors will prevent your system from working.

Q: Is a sine wave controller worth the extra cost over a square wave controller?
A: For most riders, yes. Sine wave controllers provide much quieter operation, smoother power delivery, and better efficiency. Unless you're on a very tight budget, the improved ride quality makes sine wave controllers worth the investment.

Q: How do I know if my new controller will physically fit in my bike?
A: Measure the space where your old controller was mounted and compare it to the dimensions listed in the new controller's specifications. Higher amperage controllers are typically larger, so ensure you have adequate space before ordering.
