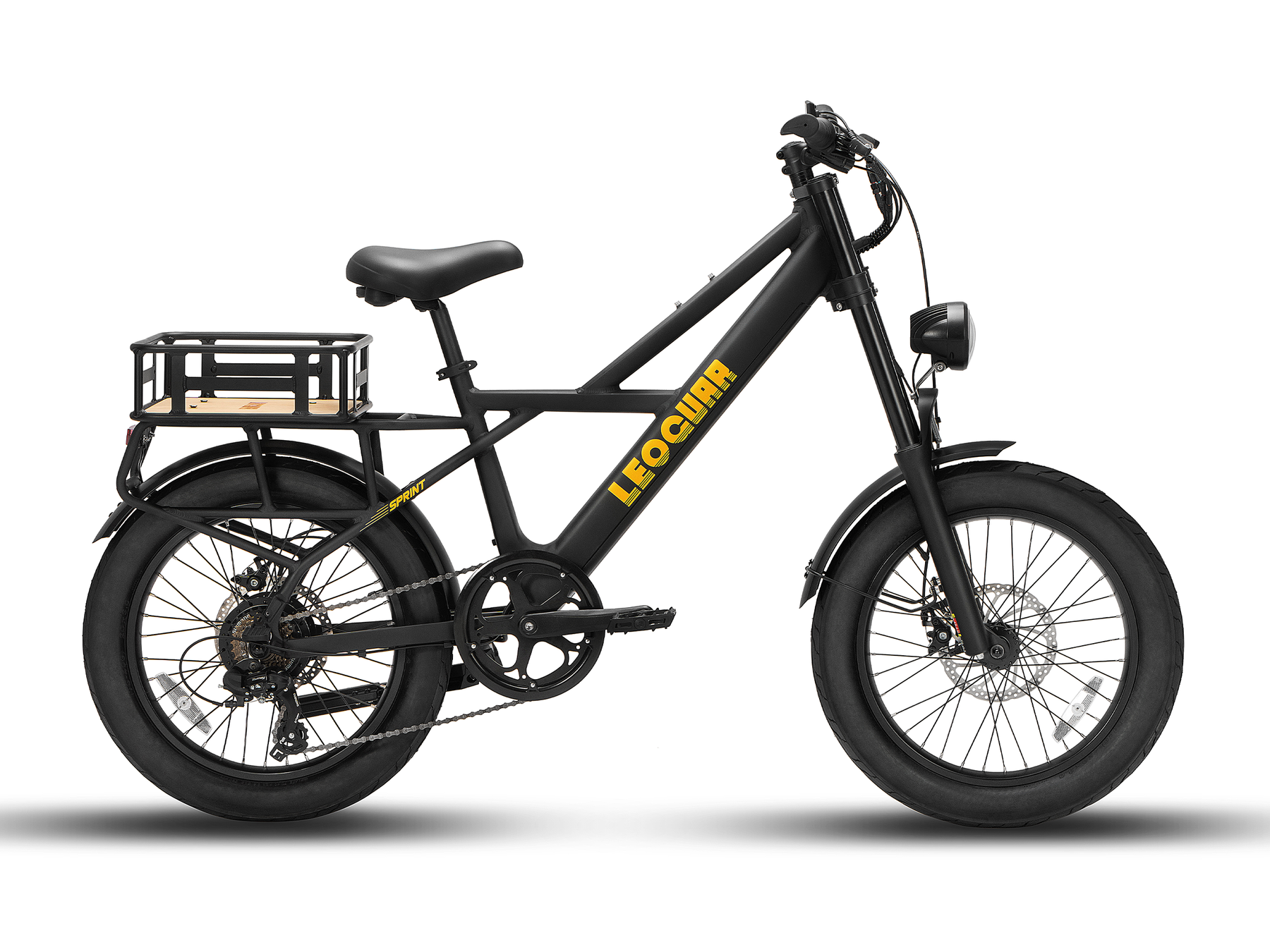

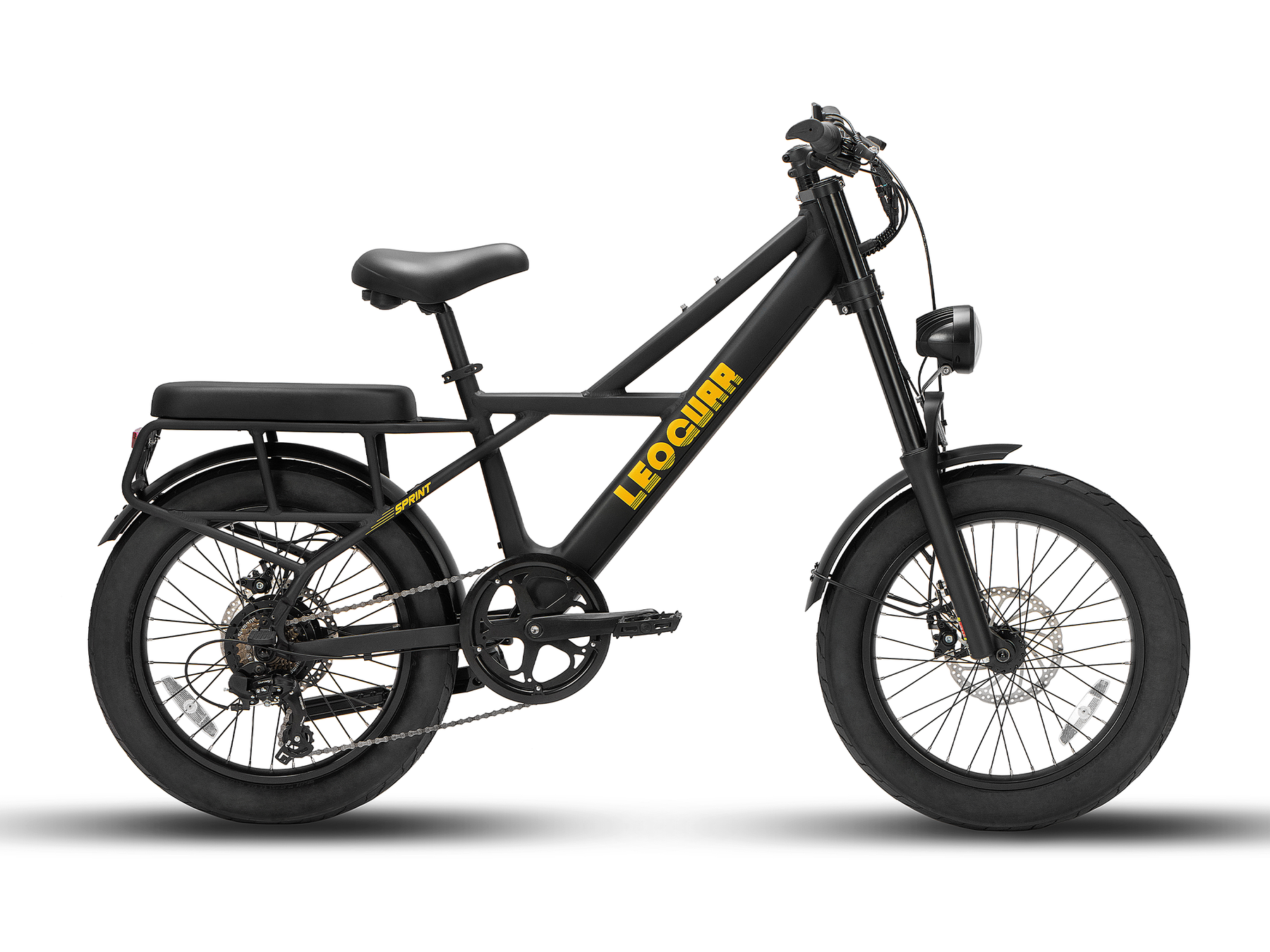

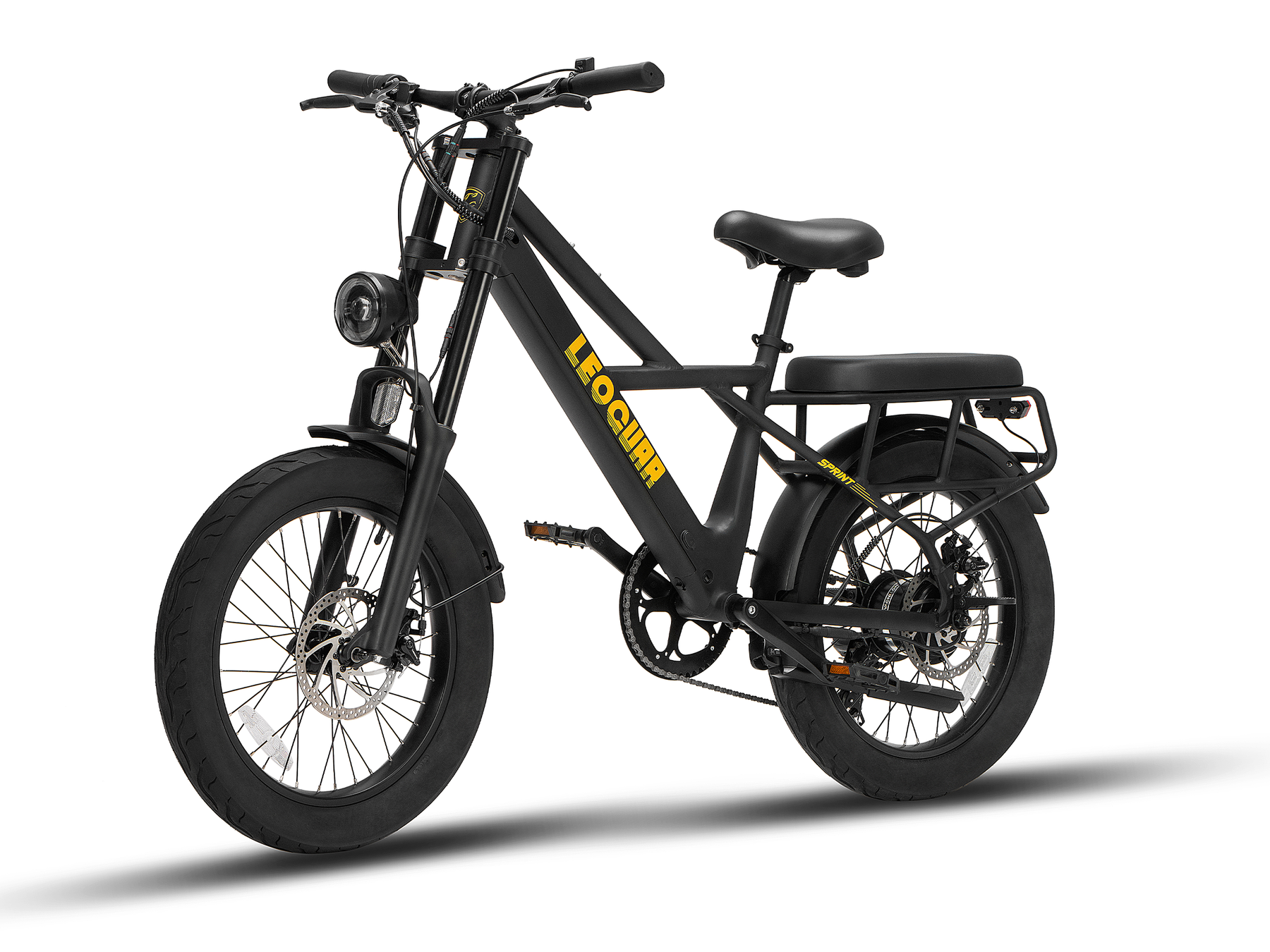

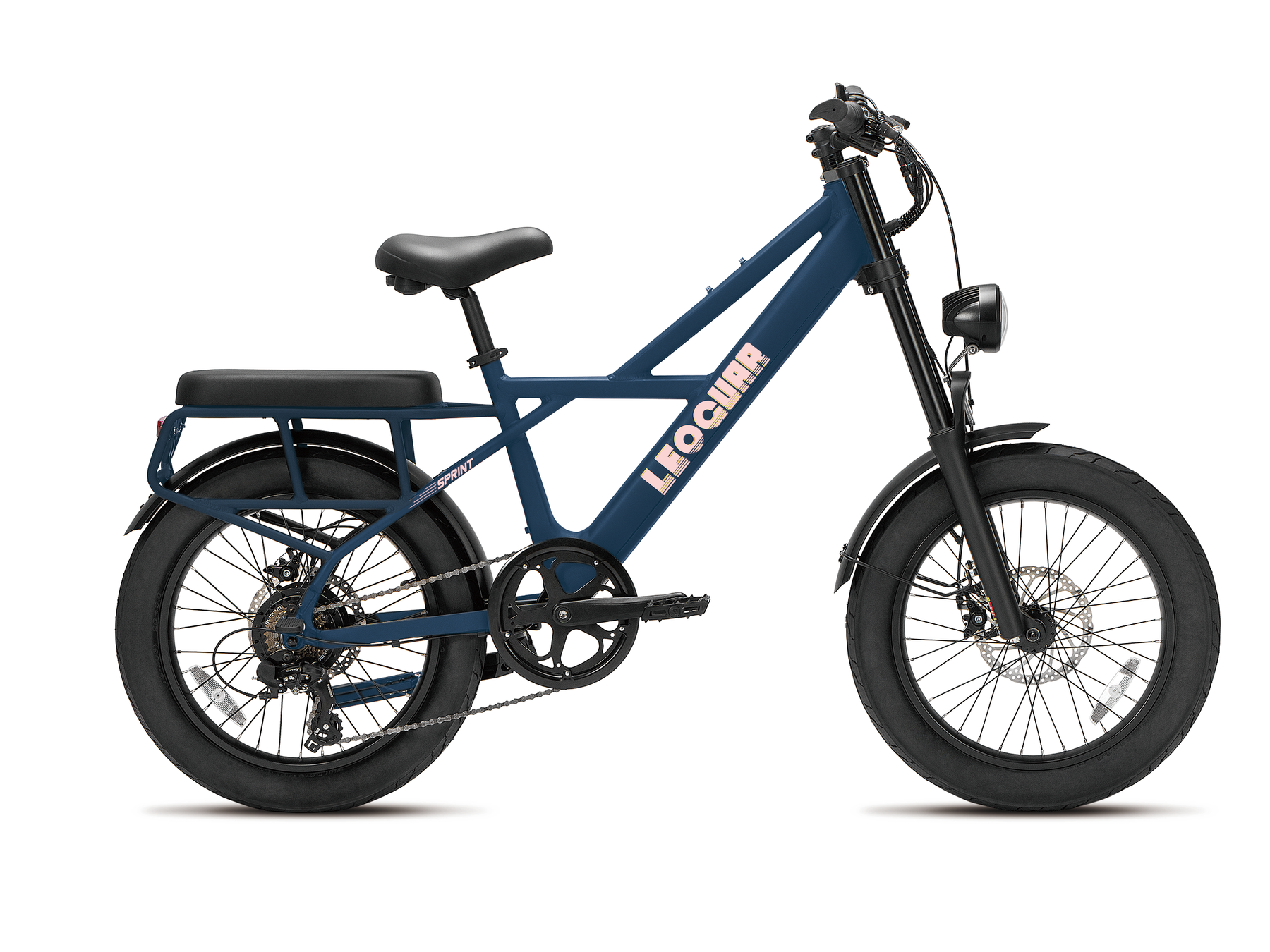

Leoguar Sprint Fat Tire Utility Ebike
Engineered for comfort and practicality, the Sprint Fat Tire Utility eBike glides over any surface with its wide fat tires. The 3-in-1 rear mount adds versatility, while the patented dual-lock removable battery guarantees reliable power. A sleek design combined with exceptional functionality makes this eBike a must-have for those who expect more.



Category
Fat Tire, Utility
Class
Class 2 E-Bike
Frame
Unisex Type
Brake
Mechanical Disc Brake
Front Fork
Double Crown Suspension
Compatibility

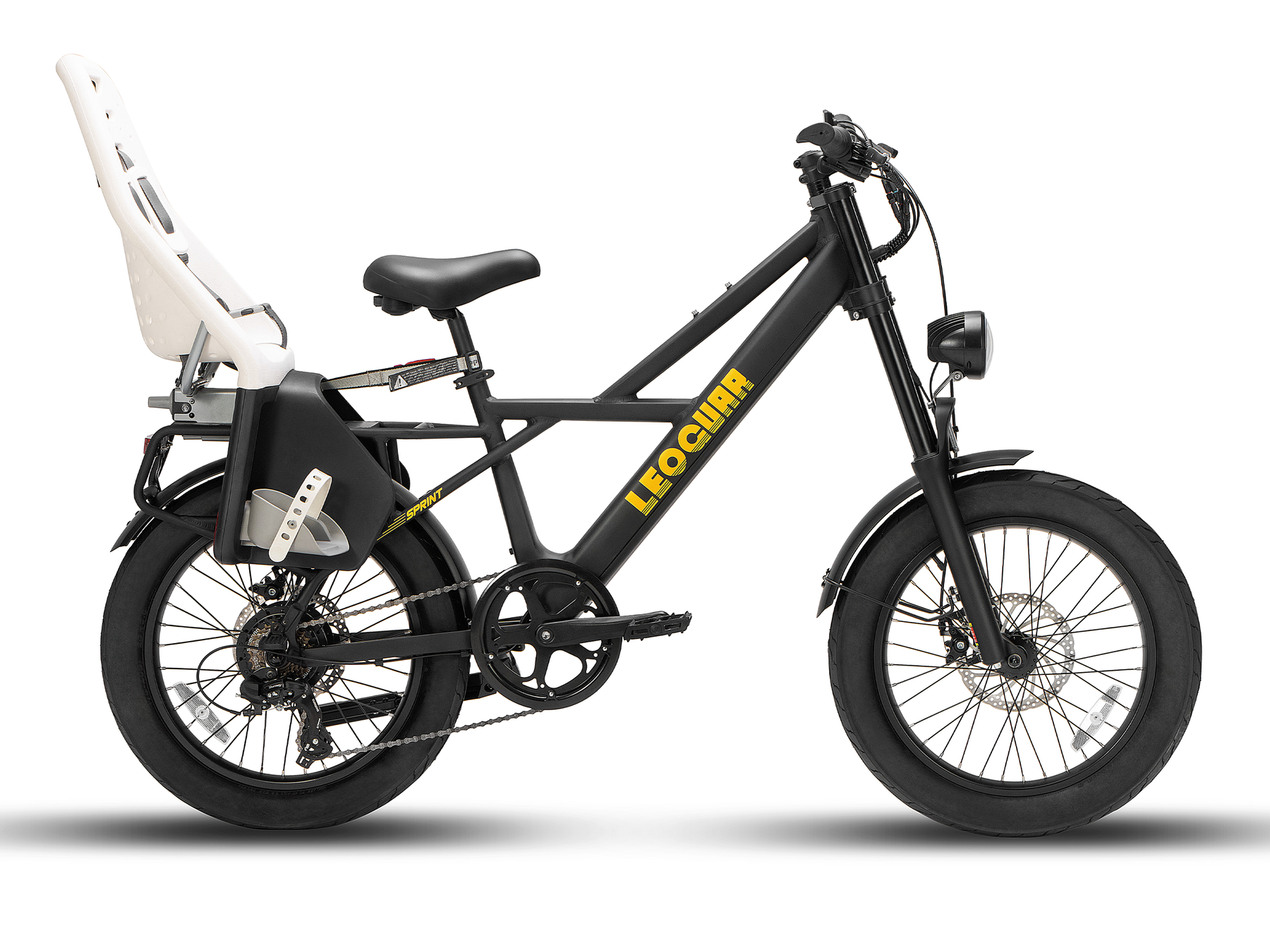

3-in-1 Rear Mount
Perfect For
Urban Streets, Paved Trails, Gravel Paths
Your Smart Security Assistant

By setting a four-digit password, you can prevent anyone from powering on your bike without your permission. This feature is particularly useful in high-traffic areas or when parking in public spaces. It's a small step that makes a big difference in protecting your investment.
Features
Stable Fat Tire

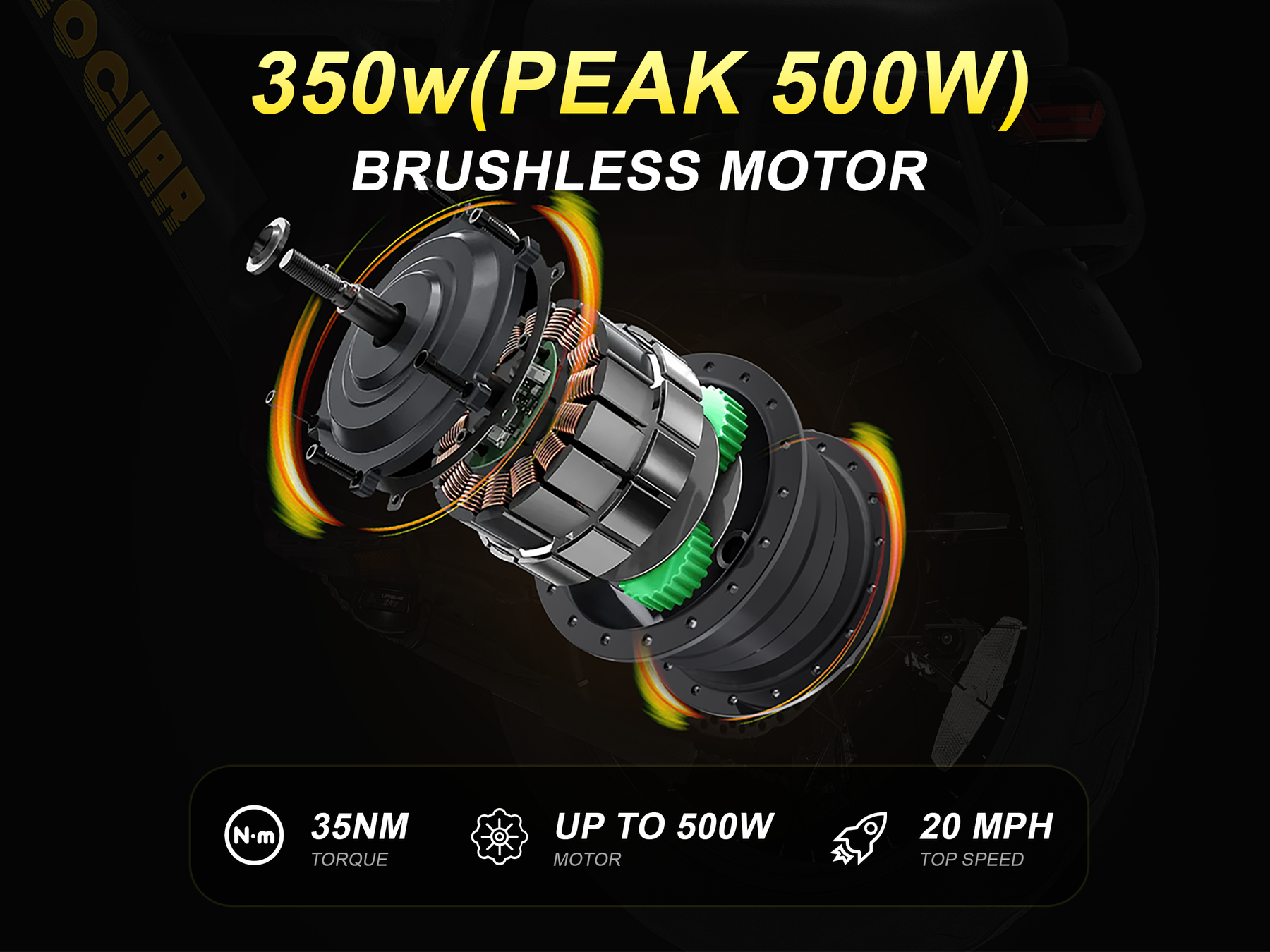

Efficient 350W Motor

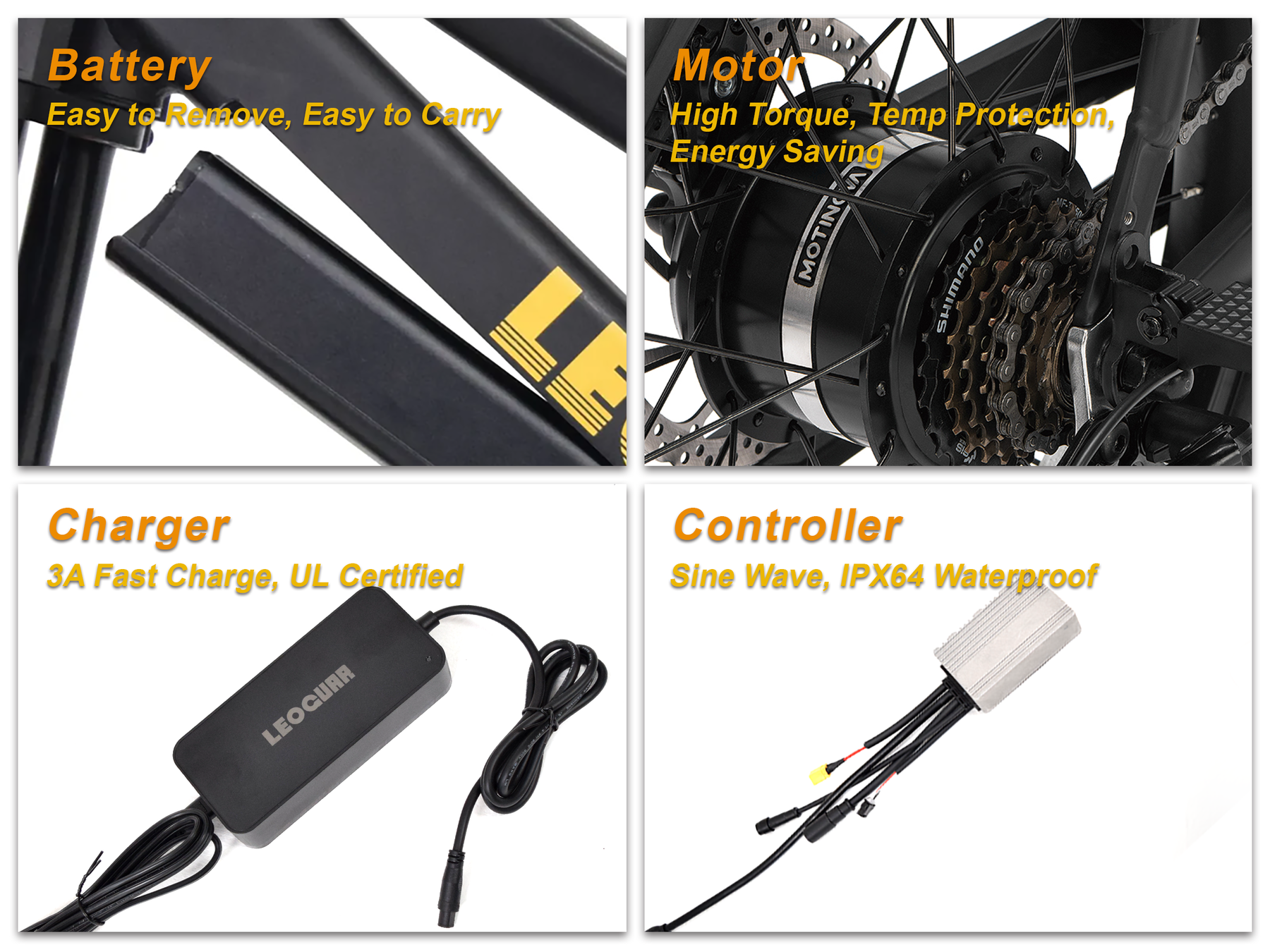

Portable Dual-lock Battery
Dual-Crown Suspension

Real-world Range Testing
Ride with Confidence






-
Frame 6061 Aluminum Alloy
-
Rider Height 5'3" - 6'5"
-
Speed Shimano 7sp
-
Type Fat Tire City Ebike
-
Bell Included
-
Total Weight Limit 275 lbs
-
Range Up to 55 Miles
-
Brake Levers Alloy with Power Cut Off
-
Brake Rotor (Front) 180mm Stainless Steel
-
Brake Rotor (Rear) 180mm Stainless Steel
-
Bike Weight 55 lbs Including The Battery
-

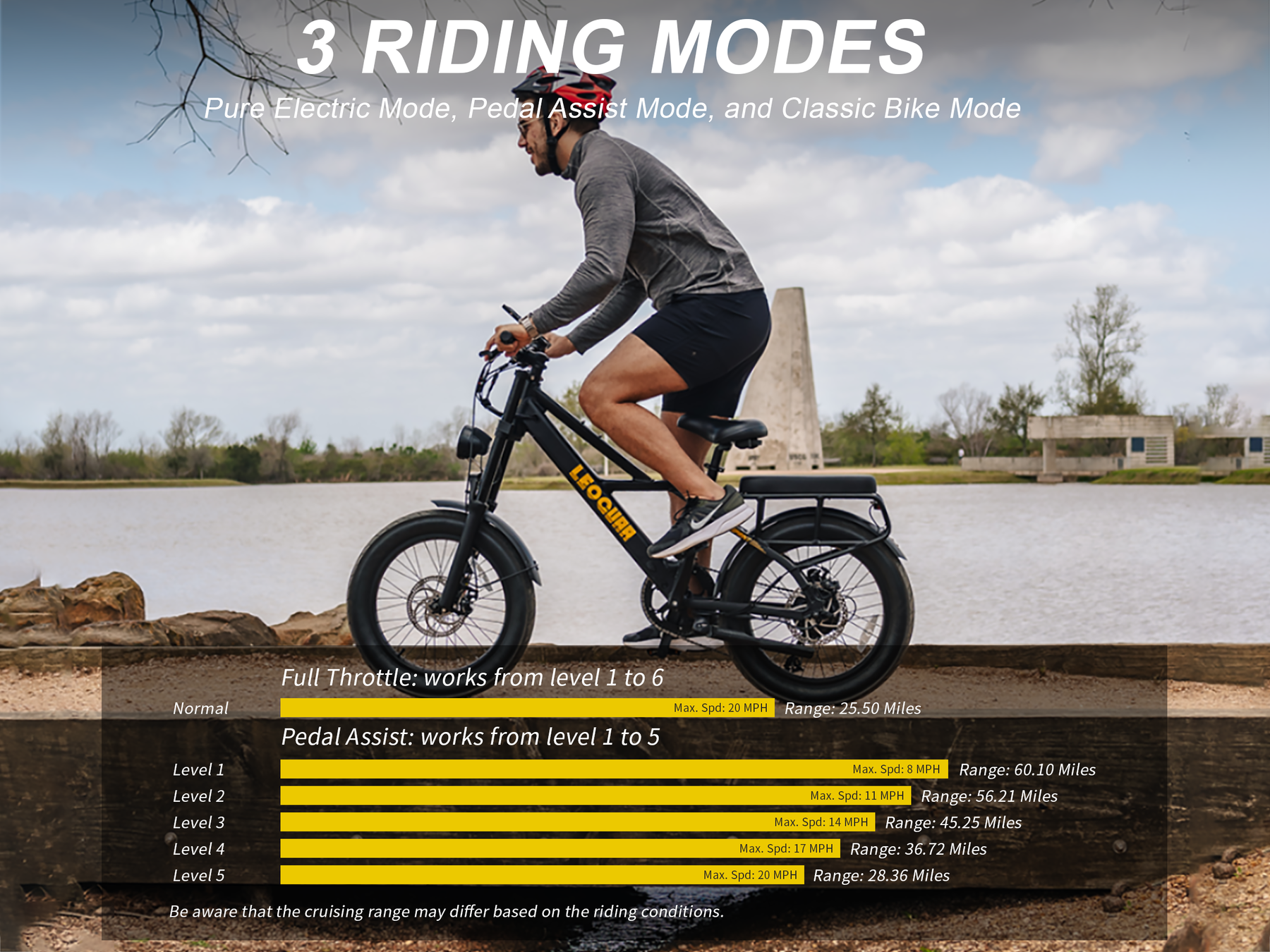

Pedal Assist 5 Levels
-

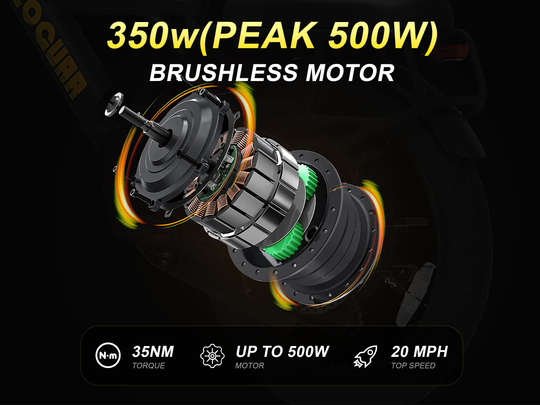

Motor 48V 350W Hub Motor 175mm Dropout
-
Sensor Cadence Sensor
-
Charging Time About 4.4 Hours
-
Charger 54.6V 3A/100~240v, 50~60hz
-
Battery Powertube LF-6/48v 12.8Ah, 614Wh
-
Cell 3300mah/18650
-

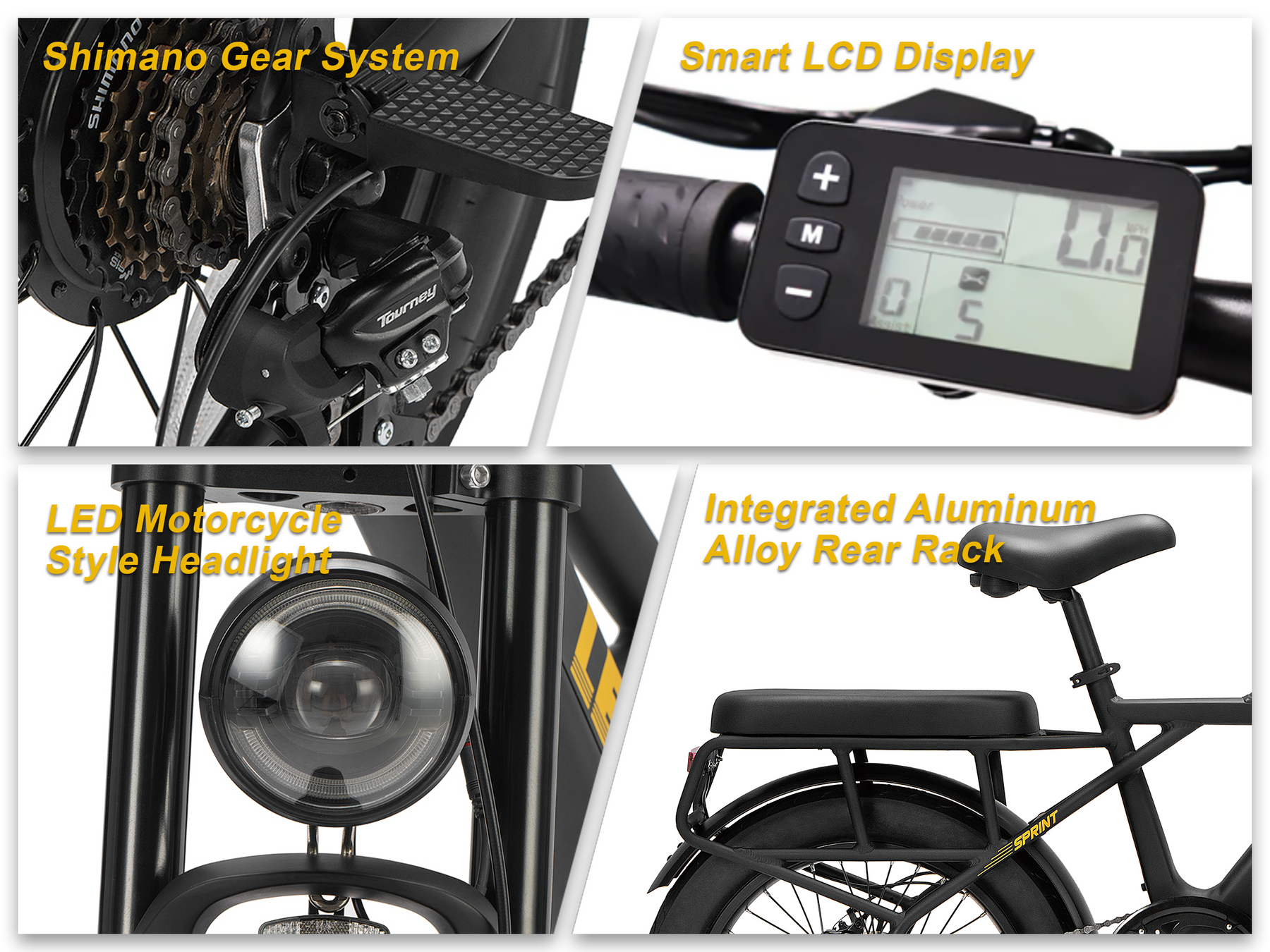

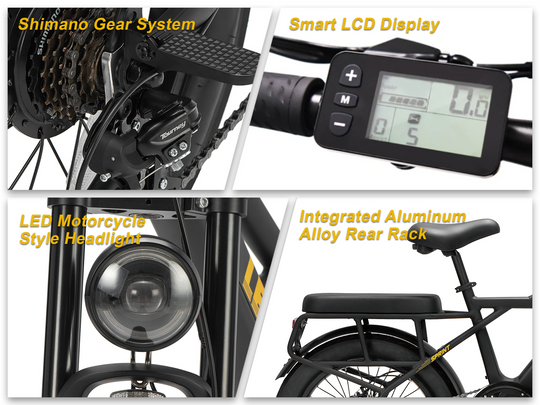

Display 48V LCD with Anti-theft Password Protection
-
Front Light LED Motorcycle Style Headlight for Clear Vision
-
Rear Light LED Taillight+Brake Light
-
Chainring 52T
-
Rear Derailleur Shimano 7sp
-
Rims 20"12G*36H Double Wall Alloy
-
Spokes F13G/R12G Stainless Steel
-
Stem Alloy 60mm /28.6*31.8mm
-
Seatpost 27.2*350mm
-
Pedals Wellgo Brand 2DU
-
Cassette 7sp 11-28T
-
Shift lever Trigger 7sp Shifter
-
Crank Arm 160mm
-
Brakes Mechanic
-
Tires 20*3.0''
-
Handlebars 660mm in Length
-
Saddle LEOGUAR Custom Made
-
Fenders Aluminum Alloy
-
Rear rack Integrated with the Frame
-

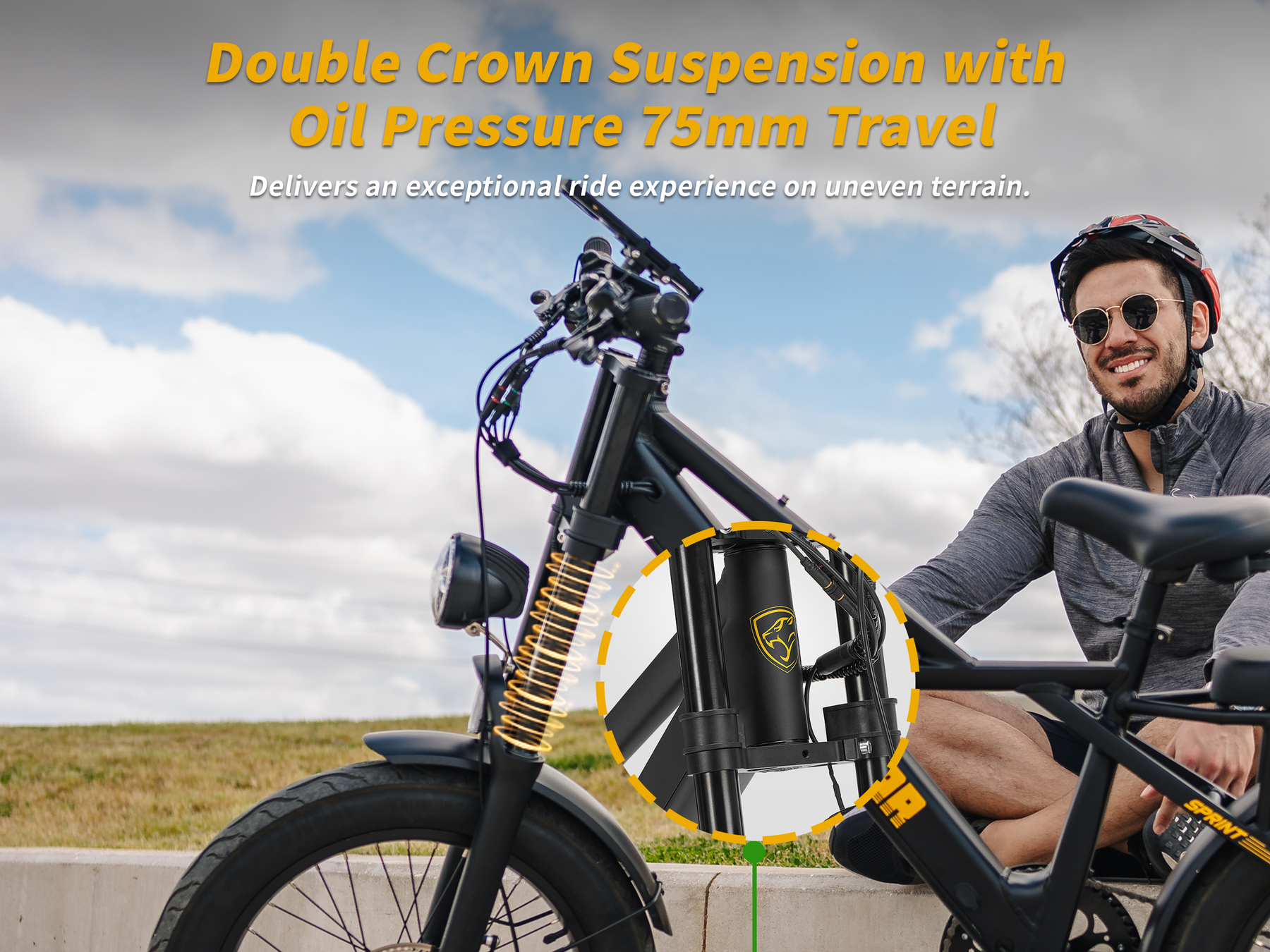

Front Fork Double Crown Suspension with Oil Pressure 75mm Travel
-
Chain KMC Rust-Proof EPT , 108 Links
-
Seat Clamp 31.8mm Alloy
-
Bottom Bracket 151mm Sealed
-
Kickstand Ursus Adjustable Alloy Kickstand, Black
-
Grips Ergonomic Rubber Comfort Grips
-
Headset 44mm Threadless Headset Made of Aluminum Alloy
-
-
A -- Head Tube Length 5.91"
-
B -- Top Tube Length 23.62"
-
C -- Seat Tube Length 15.75"
-
D -- Stack Height 24.96"
-
E -- Reach 15.98"
-
F -- Chainstay Length 15.75"
-
G -- Wheelbase 42.56"
-
H -- Wheel Diameter 21.65"
-
I -- Standover Height 42.13"
-
J -- Minimum Saddle Height 30.71"
-
K -- Maximum Saddle Height 38.98"
-
L -- Minimum Saddle to B.B height 22.05"
-
M -- Maximum Saddle to B.B height 27.56"
