How Pedal Assisted Electric Bike Technology Works

Your Secret Cycling Superpower

Have you ever looked at a steep hill and wished for a gentle push? Or maybe you dream of riding to work but worry about arriving sweaty and tired. This is where pedal assist technology comes in. It's the secret power that makes cycling easier, more fun, and more practical for millions of people.

This guide will explain the technology behind the pedal assisted electric bike. We will break down what it is, how the main parts work together, the important differences in how systems feel, and how you can choose the perfect one for your needs.

What is a Pedal Assisted Electric Bike?

A pedal assisted electric bike is an e-bike that gives you a boost from its motor only when you are pedaling. There's no throttle to twist like on a scooter.

The experience feels natural. It's just like riding a regular bicycle, but with your own strength made stronger. It flattens hills, makes distances feel shorter, and makes every ride feel like you have a powerful wind at your back.

Why This Guide is for You

The world of e-bikes can seem filled with confusing terms. Our goal here is to cut through the noise. We promise to explain the technology in clear, simple words. We'll focus not just on how things work but on how the ride actually feels.

By the end of this guide, you'll understand what makes a pedal assisted electric bike work and which one is right for you.

The Magic Behind Motion

Think of a pedal assist system as a small team with four key parts working together to create a smooth, powerful ride. When you look at a pedal assisted electric bike, these four parts define how it performs and feels.

Understanding their jobs is the first step to becoming a smart buyer.

The Motor

This is the muscle of the bike. The motor takes electrical energy from the battery and turns it into physical force that helps turn the wheels.

You'll see two main types: hub-drive motors in the center of the front or rear wheel, and mid-drive motors in the middle of the bike frame where the pedals connect. Hub motors are often found on cheaper bikes and work great on flat ground, while mid-drive motors feel more balanced and natural, especially on hills.

As experts on electric pedal-assist motors note, where the motor is placed and how powerful it is affects how the bike handles and performs.

The Battery

If the motor is the muscle, the battery is the fuel tank. This part stores the electrical energy needed to power the motor. Battery capacity is measured in watt-hours (Wh). A higher Wh number usually means a bigger fuel tank and longer range on a single charge.

Modern e-bike batteries are typically lithium-ion, similar to what's in your smartphone, and can be charged hundreds of times. They can be built into the frame for a sleek look or mounted outside for easier removal and charging.

The Sensors

The sensors are the brains of the system. This is the most important part for deciding how the bike feels to ride.

The sensor's job is to detect that you are pedaling and tell the controller to send power to the motor. There are two main types of sensors—cadence and torque—and the difference between them is huge. We will spend a whole section on these because understanding them is key to choosing a bike you'll love.

The Controller

The controller is like the conductor of a small orchestra. It's a small, sealed computer that acts as the control center for the whole system.

It gets information from you through your handlebar controls, from the sensors telling it you're pedaling, and from the battery about its status. It then processes all this data instantly to deliver smooth, steady power from the battery to the motor. It's the hidden hero that makes sure all the parts work together perfectly.

The All-Important Feel Factor

This is perhaps the most important idea for a new rider to understand. While motor power and battery size matter, the type of sensor a pedal assisted electric bike uses defines its personality more than any other part.

It decides whether the help feels like a simple switch being flipped or a natural extension of your own body. The choice between a cadence sensor and a torque sensor directly affects the ride experience.

Cadence Sensors

A cadence sensor is the simpler of the two systems. It works on a basic on/off principle.

A series of magnets is attached to the crank arm (the part your pedal screws into), and a sensor on the frame detects when those magnets pass by as you turn the pedals. Once you start pedaling, the sensor tells the controller, "The rider is pedaling!" and the motor starts at the power level you've chosen on your display.

It doesn't matter how hard you're pedaling—lightly or with maximum effort—the motor gives the same, steady amount of help for that level. What it feels like: There's a slight delay after you start pedaling, and then you feel a clear push as the motor kicks in. It can sometimes feel a bit jerky, especially at low speeds.

The feeling is less about making your power stronger and more about adding a separate, constant boost. This system is very common on cheaper e-bikes and works great for casual riders on flat ground who just want a simple, easy boost without much fuss.

Torque Sensors

A torque sensor is more advanced and natural technology. Instead of just detecting if the pedals are moving, it measures how much force you are applying to them.

It uses a precision strain gauge to detect the pressure you're putting on the pedals, millisecond by millisecond. The harder you push—for example, when starting from a stop or climbing a steep hill—the more power the motor delivers.

If you ease off, the motor help backs off proportionally. As noted by a leading gear review site, a torque sensor measures the force being applied and adds a matching amount of power, creating a more natural feel. What it feels like: This is the system that delivers the "super legs" experience. The help is instant, smooth, and perfectly matched to your effort.

It doesn't feel like a motor is pushing you; it feels like you are simply stronger. It keeps all the good parts of regular cycling and gives you amazing control, making it the better choice for hills, for fitness riders who still want a workout, and for anyone who values a truly natural and responsive ride.

Cadence vs. Torque

To make the choice clearer, here is a simple breakdown of the key differences:

Taking Control of Power

Once you understand the hardware, operating a pedal assisted electric bike is very simple. The system is designed to be easy to use, with simple controls that let you manage the power on the fly.

Understanding these controls, along with the legal classes for e-bikes, will give you the confidence to ride anywhere.

Your Handlebar Controls

Most e-bikes have a small display mounted on the handlebar, typically an LCD screen. This is your control center.

It's usually operated by a small keypad near your thumb with a power button and up/down arrows. At a glance, this display shows you important information:

• Current Speed: How fast you're going.
• Battery Life: A visual indicator, much like a cell phone, showing remaining charge.
• Assist Level: The current power setting you've selected (e.g., 1-5).
• Odometer/Trip Meter: Total distance ridden and distance for your current ride.

From Eco to Turbo

The "up" and "down" buttons on your controller let you cycle through the different pedal assist levels, which are commonly numbered from 1 to 5. Based on extensive experience riding and testing these bikes, here's what those levels typically feel like:

Level 1 (Eco/Low): This gives a very gentle nudge. It's perfect for getting the most battery range on long, flat rides or when you just want to take the edge off a headwind. It feels like riding with a pleasant tailwind. Levels 2-3 (Normal/Tour): This is the sweet spot for most daily riding.

It offers a clear boost that makes small hills and moderate climbs feel easy. It gives an ideal balance between helpful power and saving battery. Levels 4-5 (Turbo/Boost): This is maximum power. Use this setting to beat the steepest hills, speed up quickly from a stoplight in traffic, or simply for the thrill of speed. It's exciting but be aware that it will drain your battery much more quickly.

Pedal Assist vs. Throttle

It's important to know the difference between pedal assist and a throttle. A pedal assisted electric bike requires you to be pedaling for the motor to work.

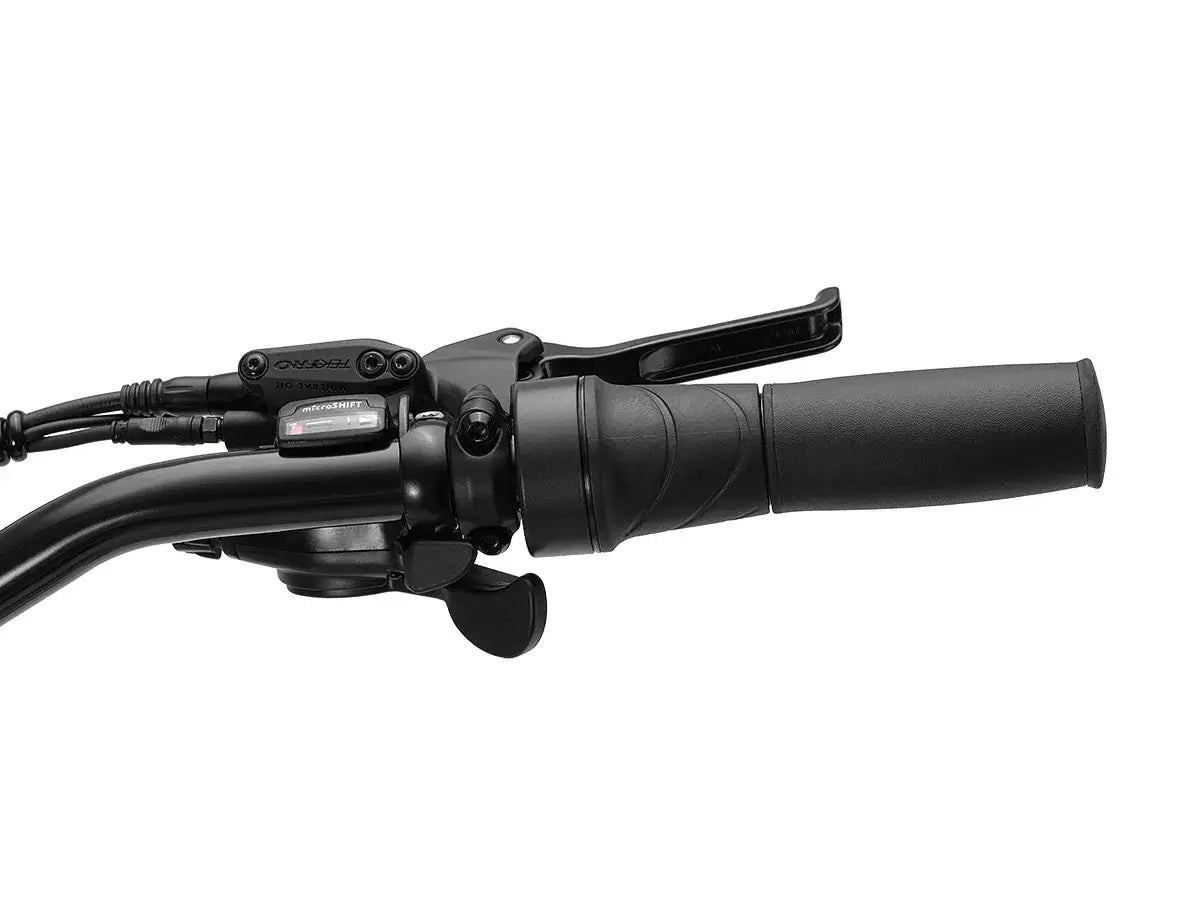

A throttle, on the other hand, is a feature (often a twist-grip or thumb lever) that lets you use the motor without pedaling at all, much like a moped or scooter. Some e-bikes have both, but a true pedal assist system requires rider input.

The E-Bike Classes

To control their use on roads and paths, e-bikes in the United States are put into three classes. Understanding these is important for knowing where you can legally ride.

Class 1: These bikes are pedal-assist only (no throttle) and the motor stops helping when you reach 20 mph. These are the most widely accepted and are generally allowed on any bike path or lane where regular bicycles are allowed.

Class 2: These bikes have a throttle and can provide motor help up to 20 mph. The pedal assist also cuts off at 20 mph.

Because of the throttle, they may face more restrictions on multi-use paths. Class 3: These are also pedal-assist only, but they are faster, providing help up to 28 mph. They are often called "speed pedelecs." Because of their higher speed, they are typically limited to roads and may have age or helmet requirements.

As publications like the New York Times Wirecutter note, understanding the difference between Class 1, 2, and 3 ebikes is a key part of the buying process.

Finding Your Perfect Match

Now that you understand the technology, the final step is to apply that knowledge to your own life. The best pedal assisted electric bike for you depends entirely on who you are as a rider.

The City Commuter

Your Needs: You need reliability for daily use, quick acceleration to get ahead of traffic at intersections, and a controlled, natural feel for navigating busy streets. The ability to carry gear like a laptop or groceries is a plus.

Our Recommendation: A torque sensor system is ideal. Its instant and proportional power delivery is perfect for the stop-and-go nature of city riding. It gives you precise control when you need it most. A Class 1 or Class 3 pedal assisted electric bike will serve you well, depending on the length and speed of your commute.

The Casual Cruiser

Your Needs: You're looking for comfort, simplicity, and an affordable way to enjoy easy rides on bike paths, boardwalks, or around the neighborhood. You want the ride to be easy and relaxing.

Our Recommendation: A cadence sensor system is often a great and budget-friendly choice. The simple "on/off" boost is perfect for relaxed, mostly flat-ground pedaling. It takes the effort out of cycling, letting you simply enjoy the scenery and the fresh air.

The Fitness Enthusiast

Your Needs: You love cycling for the workout but want to tackle bigger hills, ride longer distances, or keep up with a faster group. You want a bike that rewards your effort, not one that does all the work for you.

Our Recommendation: A torque sensor is a must-have. It is the only system that truly makes your own power stronger, letting you get exactly as much (or as little) help as you need.

It keeps the feeling of accomplishment after a tough climb while removing the barrier of impossible hills, letting you push your limits further than ever before.

Your Smoother Ride Awaits

The world of the pedal assisted electric bike is no longer just for early adopters; it's proven, refined technology that is changing how we move. By understanding the core parts—the motor, battery, controller, and especially the all-important sensors—you are now equipped with the knowledge to look past the marketing and understand how a bike will actually perform.

Whether you're seeking to flatten the hills on your commute, extend your weekend rides, or simply rediscover the joy of cycling without the strain, there is a perfect system waiting for you. The power to ride farther, faster, and with more fun than ever before is at your feet.

Your smoother ride awaits.

Frequently Asked Questions

Q: How long does the battery last on a pedal assisted electric bike?
A: Battery life depends on several factors including battery capacity (measured in Wh), assist level used, terrain, rider weight, and weather conditions. Most modern e-bike batteries provide 20-60 miles of range on a single charge. Using lower assist levels and pedaling more will extend your range significantly.

Q: Can I ride a pedal assisted electric bike without using the motor?
A: Yes, you can ride any pedal assisted electric bike like a regular bicycle with the motor turned off. However, e-bikes are typically heavier than regular bikes due to the motor and battery, so it may require more effort to pedal without assistance, especially on hills.

Q: Do I need a license or registration for a pedal assisted electric bike?
A: In most U.S. states, Class 1 and Class 2 e-bikes (up to 20 mph) do not require a license, registration, or insurance. Class 3 e-bikes (up to 28 mph) may have additional requirements like helmet use or age restrictions. Always check your local and state laws as regulations vary by location.

Q: How much does it cost to charge an electric bike battery?
A: Charging an e-bike battery is very inexpensive. A typical 500Wh battery costs about 5-15 cents to fully charge, depending on your local electricity rates. This means you can ride 20-50 miles for less than the cost of a candy bar.

Q: What's the difference between a hub motor and a mid-drive motor?
A: Hub motors are located in the wheel hub (front or rear) and are generally less expensive and simpler to maintain. Mid-drive motors are located at the bike's bottom bracket and provide better weight distribution, more natural handling, and better performance on hills. Mid-drive motors also allow you to use the bike's gears more effectively, making them preferred for varied terrain and longer rides.
