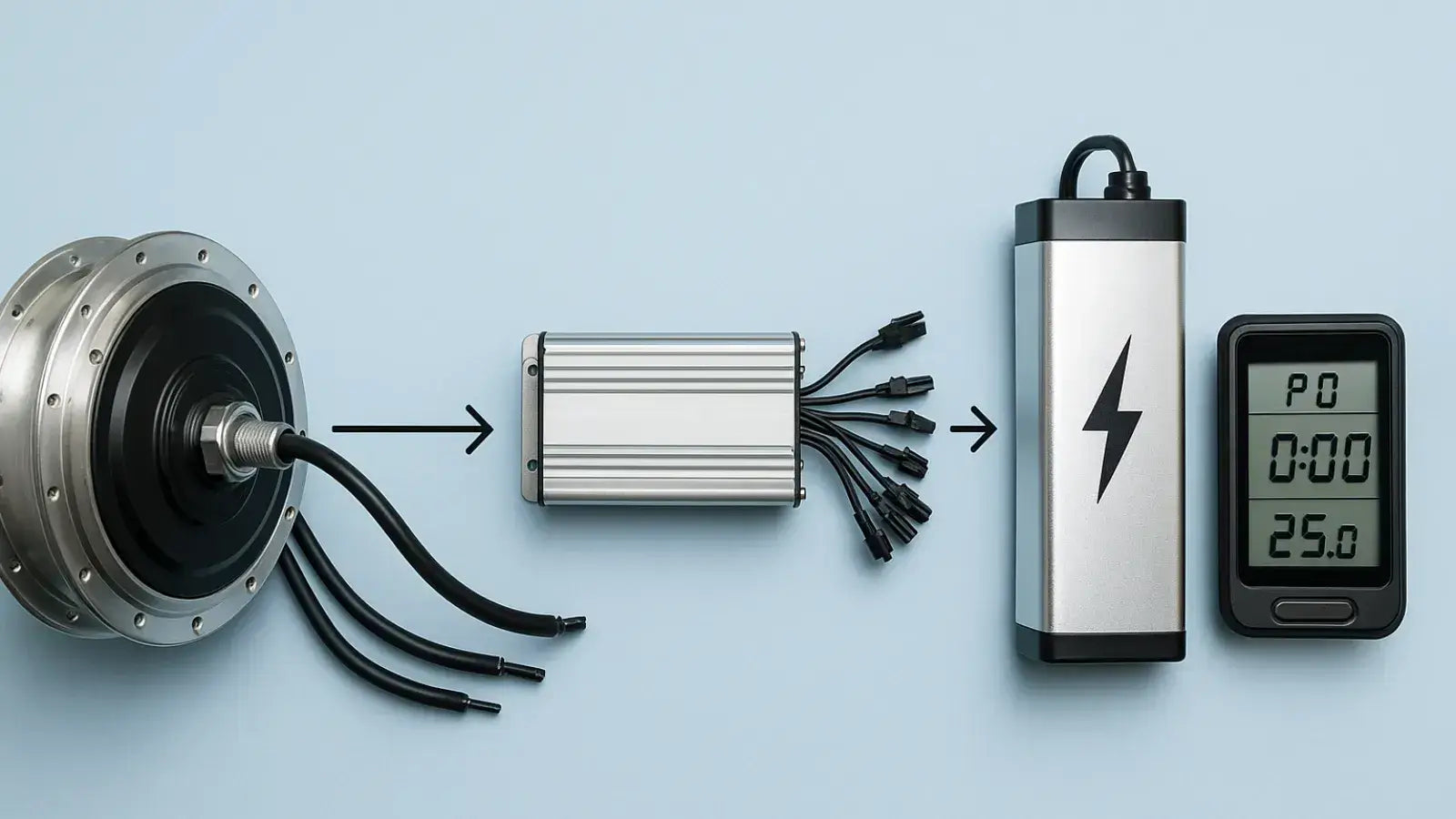

Electric Cycle Controller: Matching Specs With Your Ebike Motor

Picking a new electric cycle controller can be tough. As the "brain" of your ebike, it controls how power moves from the battery to the motor. Get it right, and you'll see better performance and longer rides. Get it wrong, and you might face poor performance, shorter range, or even broken parts that cost a lot to fix. The confusion around matching specs can stop you from making any choice at all. This guide will clear up that confusion. We'll give you a simple, step-by-step plan to make sure you pick an electric cycle controller that works perfectly with your motor and battery, so you can feel good about upgrading or fixing your bike.

The Non-Negotiable Specs

Three specs matter more than all others when matching an electric cycle controller to a motor. These basic numbers decide if your parts will work together safely. We call them the "Big Three," and you must get them right. Think of them as the basic rules of your ebike's electrical system. When you understand Voltage, Current, and Wattage, you can avoid most compatibility problems and build a system that's both powerful and safe. Let's look at each one.

1. Voltage (V): The Golden Rule

Voltage is the "electrical pressure" in your system. The most important rule is that your controller's voltage must match your electric bike battery voltage exactly. There's no wiggle room here. A 48V controller with a 36V battery and motor will likely not turn on because of the controller's low-voltage cutoff. On the flip side, connecting a 48V battery to a 36V controller will destroy the controller's parts almost instantly and probably damage other connected parts like your display. Your motor can handle a voltage range, but the main match is between the battery and controller. Common ebike system voltages are:

• 36V: Standard for many basic and city commuter ebikes.
• 48V: The most common voltage for good performance, found on trail bikes and powerful commuters.
• 52V: A popular upgrade for 48V systems, giving a small boost in speed and power.
• 72V: Used for high-performance, custom builds and off-road bikes.

Always check your battery's voltage before shopping for an electric cycle controller. It's the first and most important step.

2. Current (Amps, A): The Key to Power

If voltage is pressure, current (measured in Amps) is the "flow rate" of electricity. The amp rating of your controller directly controls your electric bike torque and acceleration. More amps mean more power sent to the motor, which gives you faster starts and better hill-climbing ability.

Controllers have two current ratings:

• Continuous Current: The maximum amps the controller can safely handle for long periods without getting too hot.
• Peak (or Max) Current: A higher amp level it can deliver for short bursts (like a few seconds during acceleration).

The key point is that your controller's peak amp rating must not be higher than your battery's Battery Management System (BMS) maximum continuous discharge rating. The BMS is the safety circuit inside your battery pack. Trying to draw more amps than the BMS allows will cause it to cut power to protect the battery cells. Your controller's continuous amp rating should work well with what your motor can handle without overheating. For a deeper understanding of how power ratings are determined, it's clear that amps, not just watts, define real-world performance.

3. Wattage (W): The End Result

Wattage measures overall power, but it's a result, not a starting point for compatibility. The formula is simple: Watts = Volts x Amps. A common mistake is trying to match a 500W controller to a 500W motor. This is too simple. The motor's wattage rating is often a basic number for legal or marketing reasons. The true power of your system comes from the controller's voltage and its peak amps.

Focus on matching voltage first, then pick an amp level that your battery's BMS and motor can handle. The resulting wattage will be your system's true peak power output. This table shows how voltage and amps combine to create power for different uses:

The Performance Triangle

To really master controller matching, we need to think beyond single parts and use a systems approach. We use a plan called the "Performance Triangle," which has three connected points: the Motor, the Battery (specifically its BMS), and the Controller.

Think of this as a three-legged stool. If one leg is shorter than the others, the stool is unstable and limited by its shortest leg. Similarly, your ebike's electrical system is only as strong as its weakest part. A high-power motor is useless if the battery's BMS can't supply enough current, and a high-discharge battery is wasted if the controller can't deliver that power to the motor. The goal is to create a balanced system where all three parts work together well.

How the Controller Mediates

In the Performance Triangle, the electric cycle controller acts as the "negotiator." It listens to your commands through the throttle or pedal sensor, checks the battery's capacity, and then delivers a carefully managed flow of power to the motor. A well-matched controller makes sure this process is smooth and efficient.

However, an imbalance can cause problems. A controller with a much higher amp rating than the battery's BMS can constantly try to over-draw from the battery, causing the BMS to trip and cut power, leading to a frustrating, stuttering ride. On the other hand, a controller that is too powerful for the motor can force too much current through its windings, causing it to overheat the motor, which can lead to loss of magnetism and permanent damage.

Finding Your Bottleneck

Before upgrading, you must find the bottleneck in your current system. Use this process to find your weakest link:

1. Check Your Battery's BMS: This is the most common bottleneck. Find the "max continuous discharge" rating, usually listed in amps. If it's only 20A, there's no point in buying a 40A controller; the BMS will always be the limiting factor.
2. Look at Your Motor: Is it a small, direct-drive hub motor or a large, geared hub motor? Smaller motors have lower heat tolerance and can't handle high amps for long. Look up your motor model to find its recommended continuous power or amp rating.
3. Check Your Current Controller: If your bike feels slow but you have a good battery and motor, your controller's low amp rating is likely the bottleneck. Upgrading it can unlock the hidden potential of your other parts.

By finding your system's weakest point, you can make a targeted, effective upgrade instead of wasting money on power you can't use.

Beyond the Numbers

Electrical specs are only part of the story. Once you've figured out the "Big Three," you must think about the controller's type and its physical compatibility. These factors determine the ride feel, noise level, efficiency, and whether the new part will even connect to your bike.

Controller Waveform

The controller's waveform controls how it delivers power to the motor, which has a major impact on the ride.

• Square Wave: Found on older or cheaper controllers. They are simple and provide a "punchy," torque-heavy acceleration from a stop. However, they are very noisy (making a distinct "humming" sound), less efficient, and can feel jerky.
• Sine Wave: The modern standard. These controllers deliver power in a smooth, continuous wave. This results in a much quieter, more efficient, and more "natural" feeling ride. The acceleration is fluid and controlled.
• FOC (Field-Oriented Control): The most advanced type. FOC is a smart algorithm, often considered a "smart" sine wave. It is very efficient, nearly silent, and provides incredibly smooth control, especially at very low speeds. FOC controllers are ideal for pairing with the different types of e-bike motors, especially high-end mid-drives, as they can precisely manage torque and cadence for the best possible ride experience.

Connectors and Physical Fit

This is the practical hurdle that trips up many DIY builders. An electrically perfect controller is useless if you can't plug it in. Before you order, you must check all connectors.

We've seen many DIY projects get delayed by a week simply because the new controller's 6-pin display connector didn't match the old 5-pin display. Always double-check or be prepared to do some rewiring.

Take pictures of your existing connectors and compare them to the product photos of the new controller. Key connectors to check include:

• Motor Phase Wires (usually 3 thick wires)
• Hall Sensor Connector (typically a 5 or 6-pin plug)
• Battery Power Connector (e.g., XT60, XT90, Anderson)
• Display Connector (varies widely, 4 to 6 pins)
• Throttle Connector (usually 3 pins)
• Brake Sensor / Cutoff Connectors (usually 2 pins)

Finally, measure the physical space where your old controller is housed. New, more powerful controllers are often larger and may not fit in the same compartment.

A Step-by-Step Matching Guide

With the knowledge you've gained, let's put it into an actionable checklist. Follow these five steps to confidently choose the right electric cycle controller.

Step 1: Identify Your Specs

First, gather the data. Look at your battery case for its Voltage (V) and your motor casing for its Wattage (W) or model number. Most importantly, find the specs for your battery's BMS, specifically its maximum continuous amp (A) rating. This may require contacting the manufacturer or looking up the battery model online.

Step 2: Define Your Goals

What are you trying to achieve? More torque for climbing steep hills? A quieter, smoother ride for commuting? Maximum possible speed for off-road fun? Your goals will guide your choice. For torque, you'll want a higher amp rating. For a smoother ride, you'll prioritize a Sine Wave or FOC controller.

Step 3: Select Voltage and Amps

Remember the golden rule: the controller's voltage must match your battery's voltage. Next, choose your amps. For a reliable and safe system, select a controller with a peak amp rating that is slightly below your battery's maximum BMS limit. This gives you a safety margin and ensures you don't constantly trip the BMS. Make sure this amp rating is also within the motor's recommended range.

Step 4: Verify All Connectors

Go back to the checklist in the previous section. Carefully compare every single connector on your bike to the new controller you plan to buy. Check the motor phase, hall, battery, display, throttle, and brake cutoff connectors. A direct match is always the best and easiest path.

Step 5: Read Community Reviews

Before you click "buy," do one final search. Use online forums and groups to see if others have used your proposed controller and motor combination. This is where you'll find real-world feedback on compatibility, performance, and potential quirks. Valuable insights are often shared in DIY e-bike builder communities, which can save you a lot of trouble.

The Power of a Perfect Match

Choosing the right electric bike controller is about creating a balanced, harmonious system. It ensures safety, maximizes performance, and delivers the exact ride feel you're looking for. By following this guide, you've moved beyond simple guesswork and can now make an informed, expert decision. Remember the core principles: matching voltage is mandatory, balancing amperage between the battery and motor is the key to unlocking power safely, and checking physical connectors is the final step that saves major headaches. Now you have the framework to build a better, more responsive ebike. Match Voltage, Balance Amps, Check Connectors, and Ride On!

Frequently Asked Questions

Q: Can I use a 48V controller with a 52V battery?
A: Generally no. While some 48V controllers can handle 52V batteries, this is risky and can damage your controller. Always match the voltage ratings exactly to avoid damaging your components and voiding warranties.

Q: What happens if my controller's amp rating is higher than my battery's BMS?
A: Your battery's BMS will cut power whenever the controller tries to draw more current than the BMS allows. This results in a stuttering, inconsistent ride experience where power cuts out during acceleration or hill climbing.

Q: Is it worth upgrading from a square wave to a sine wave controller?
A: Yes, in most cases. Sine wave controllers provide a much quieter, smoother, and more efficient ride. The upgrade is especially noticeable if you do a lot of city commuting where noise matters.

Q: How do I know if my motor can handle more amps from a new controller?
A: Check your motor's specifications for its continuous power rating or maximum current. If you can't find this information, contact the manufacturer or search online forums for your specific motor model to see what other users recommend.

Q: What should I do if the connectors don't match between my old and new controller?
A: You have three options: find a controller with matching connectors, purchase adapter cables if available, or rewire the connectors yourself. The safest option is to find a controller with matching connectors to avoid any wiring mistakes.
