E-Bike Forks Guide: Why Fat Bike Forks Matter

Introduction: The Hidden Key to Better Rides

Is your e-bike ride rougher than you want it to be? You might feel like you can't control your bike well, especially when you brake hard going into turns. These problems happen to many riders. The answer usually comes from a part that most people don't think about much: the fork.

The ebike fork does more than just hold your front wheel in place. It controls how comfortable your ride feels, how well you can steer, and how safe you are. This part protects you from bumps in the road and helps you steer exactly where you want to go.

In this guide, we will explain everything about ebike forks in simple terms. We'll show you why they need special design features and how they connect to fat bike forks. Learning about this part is the first step to making your rides much better.

Why E-Bikes Need Stronger Parts

Adding a motor and battery to a regular bike does more than help you climb hills easily. It completely changes how the bike works and puts much more stress on the fork. A regular bike fork often can't handle this extra pressure. It all comes down to numbers, and every number is bigger on an e-bike.

• Increased System Weight: An e-bike weighs 20-30 pounds more than a regular bike. This extra weight, plus your body weight, creates much more force when you hit bumps. Every pothole and drop puts more stress on the fork.

• Higher Average Speeds: E-bikes let you go faster for longer times, especially on flat roads and hills. This steady high speed puts constant stress on the fork's inside parts and makes them wear out faster.

• Greater Braking Forces: Stopping a heavier bike that's moving faster needs stronger brakes. This braking force goes straight into the fork's main parts and can make a weak fork bend or flex when you brake hard.

• Motor-Induced Torque: The motor system, especially on powerful mid-drive e-bikes, creates twisting forces through the whole bike frame. A strong, well-built fork helps keep the bike stable and makes sure it goes straight when you use the motor.

These forces work together, which is why bike frames are often designed with a specific suspension fork travel in mind. For an e-bike, matching the fork's strength to these higher stresses isn't just about better performance. It's about keeping the bike safe and strong enough to handle the extra demands.

Parts of an E-Bike Fork

To pick the right ebike fork, you need to know its main parts and the words people use to describe them. A modern suspension fork has complex engineering, but you can understand its main jobs by looking at a few key areas.

Suspension Type: Air vs. Coil

The "spring" holds you up and absorbs impacts when you hit something. There are two main types you'll see.

• Air Forks: These use pressurized air in a chamber as the spring. Most mid-to-high-end e-bikes use these forks. Their best feature is that you can adjust them easily by changing the air pressure with a special pump to match your weight and riding style perfectly. They work well for different riders and loads. They also weigh much less than coil forks.

• Coil Forks: These use a physical steel spring inside. They weigh more and you can't adjust them easily while riding (you have to change the whole spring to make them stiffer or softer). But they feel very smooth over small bumps and need less maintenance, which makes them good for people who ride to work or don't want to adjust things often.

Here's how they compare:

Key Structure and Damping Features

• Stanchion Diameter: These are the upper fork tubes that slide into the lower parts. For e-bikes, thicker tubes work much better because they resist bending and help you steer more precisely. Regular trail bikes might use 32-34mm tubes, but e-mountain bike forks often start at 36mm and go up to 38mm or 40mm for maximum stiffness. This helps handle the extra weight and braking forces.

• Damping (Compression & Rebound): If the spring absorbs the hit, the damper controls how fast that happens and how the fork returns to normal. Damping might be the most important thing that affects how your fork performs. Compression damping controls how the fork moves down when you hit a bump. E-bike forks often have firmer settings to stop the fork from diving forward too much when you brake hard. Rebound damping controls how quickly the fork comes back up after being pushed down. Too fast makes it feel bouncy like a pogo stick, and too slow makes it stay compressed and not work well over multiple bumps.

• Travel: This measures the maximum distance the fork can compress, shown in millimeters like 120mm. More travel isn't always better because the amount needs to match your bike frame's design and how you plan to ride. A commuter e-bike might only need 100mm, while an aggressive e-mountain bike could need 160mm or more.

The "E-Bike Rated" Standard

You might see stickers on forks that say "E-Bike Rated," "E-MTB Certified," or similar words. It's easy to think this is just marketing talk, but most of the time, this label means real engineering improvements designed to handle the specific challenges we talked about.

A true e-bike rated fork isn't just a regular fork with a new sticker. The differences are inside the fork and in how it's built.

• Reinforced Steerer Tubes and Crowns: The steerer tube is the "steering column" that goes through your bike frame, and the crown connects the steerer tube to the two main tubes. On an e-bike fork, both parts have thicker walls and stronger aluminum to handle the huge forces from hard braking and big impacts. This is the fork's backbone, and for an e-bike, it needs to be extra strong.

• Thicker Stanchion Walls: It's not just the outside width of the tubes that matters. The wall thickness inside is also increased to add crucial resistance to bending under load and make sure the front wheel goes exactly where you point it.

• Stronger Bushings: Inside the lower parts are bushings, which are smooth surfaces that let the tubes slide up and down easily. The higher loads on an e-bike can make regular bushings wear out fast, which causes a knocking or wobbling feeling. E-bike forks use tougher bushings to handle these loads and last longer.

• E-Tuned Damping: The inside damping systems are set up specifically for e-bike use. This usually means firmer base settings to provide more support and prevent the fork from feeling mushy or diving forward too much. The rebound systems are also adjusted to handle the higher energy of a heavier wheel and tire. Proper control of high-speed rebound damping becomes very important because it manages how the fork responds after a big, fast impact, which happens often on a heavier, faster e-bike.

The Fat Bike Fork Advantage

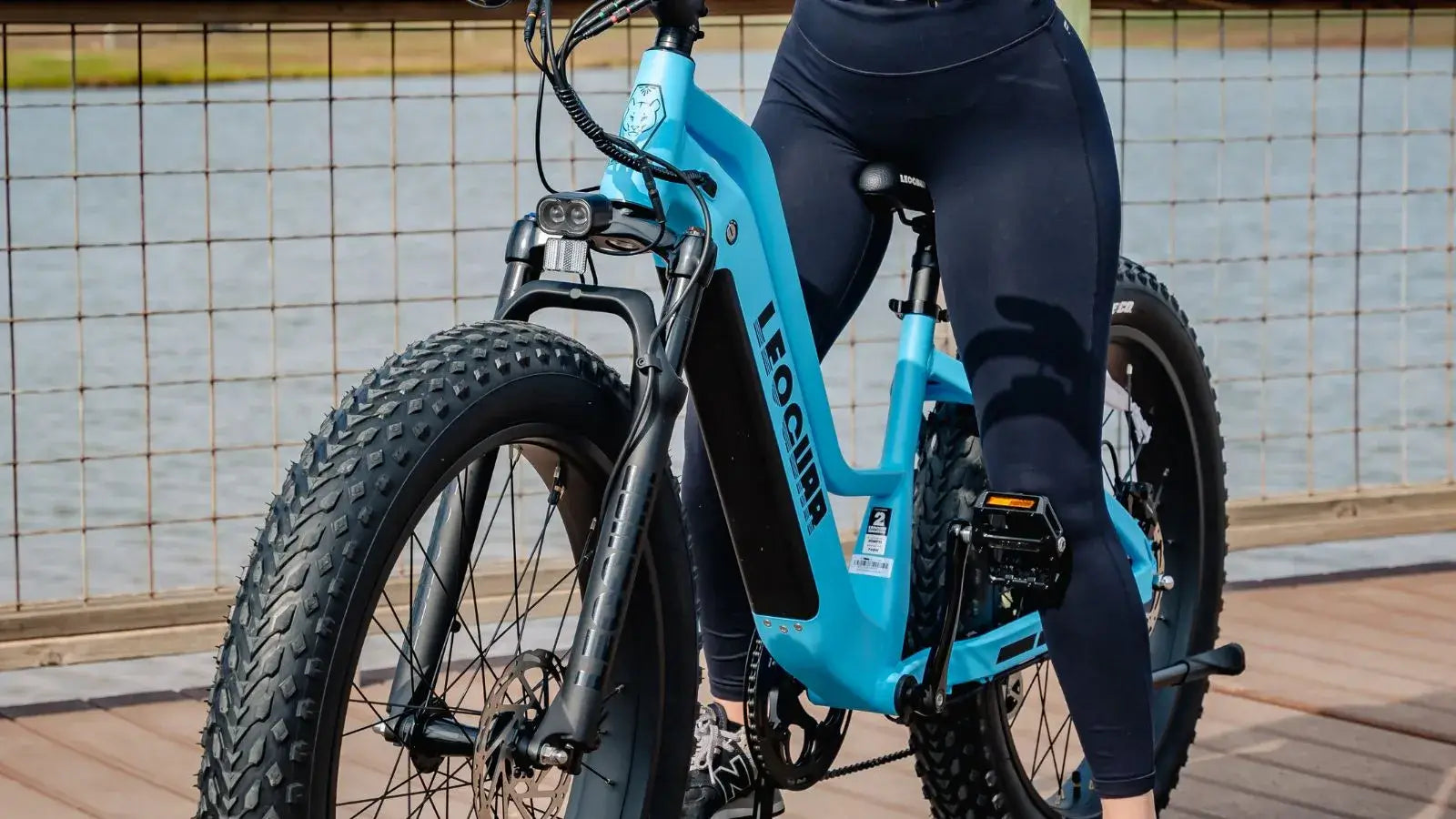

Now let's talk about a fork type that many riders don't consider: the fat bike fork. While these forks are made for bikes with huge 4-5 inch tires, their design makes them really good for many types of heavy-duty e-bikes, not just fat-tire models.

Fat bike forks are built for extreme conditions. They're designed from the start to handle the huge weight and spinning forces of a massive tire, plus the stress of riding through tough terrain like snow, sand, and mud. This "overbuilt" design is what makes them special.

Here are the main benefits for a regular or plus-tire e-bike:

• Better Stiffness: The biggest advantage is the wider hub spacing. Most fat bike forks use a 150mm front axle standard, compared to the 110mm "Boost" standard on modern mountain bikes. This extra 40mm of width creates a much wider angle for the spokes, which makes a much stronger and stiffer front wheel. For an e-bike, this means much less twisting and flexing, so steering feels more direct and confident, especially when cornering hard or braking on rough ground.

• Built-in Durability: Because they're designed to handle the forces of a heavy, high-traction fat tire, every part of a fat bike fork is naturally more robust. They're built with a higher safety margin. When you put this fork on an e-bike with a regular or plus-sized tire, you're using a part that's way overqualified for the job. This leads to amazing long-term durability and reliability.

• Tire Size Flexibility: The huge clearance of a fat bike fork means it can easily fit many different tire sizes. While it can fit a true 4.8" fat tire, it can also perfectly hold a 27.5+ or 29+ tire (usually 2.8-3.0" wide). These plus-sized tires are popular for e-bikes because they offer a great balance of grip, cushioning, and reasonable rolling resistance. A fat bike fork represents the ultimate in stiffness and strength. This makes it a perfect match for the stressed front end of a modern e-bike.

Choosing Your Upgrade

Picking the right fork upgrade means matching the fork to your bike, your riding style, and your budget. Follow these steps to make a smart choice.

Step 1: Match Your Bike's Specs

Before you look at performance features, you need to make sure everything fits together. Check these three things on your current bike:

• Steerer Tube: Most modern, quality bikes use a tapered steerer tube (wider at the bottom at 1.5" and narrower at the top at 1-1/8"). Older or basic bikes might use a straight 1-1/8" steerer. You must buy a fork that matches your frame's head tube.

• Wheel Size: Your new fork must be designed for your wheel's diameter (like 26", 27.5", or 29").

• Axle Standard: This is the system that holds your wheel in place. It could be an older Quick Release skewer or a modern, stiffer Thru-Axle (like 15x100mm, 15x110mm Boost, or 15x150mm for fat bikes). The fork's axle standard must match your front wheel's hub.

Step 2: Match Your Riding Style

• Commuter and Light Trail: If you mainly ride on pavement, bike paths, and smooth dirt trails, a quality coil or entry-level air fork with 100-120mm of travel and 32-34mm tubes will make your ride much more comfortable than a rigid fork.

• All-Mountain and e-MTB: For serious off-road riding on technical terrain, an "E-Bike Rated" air fork is the best choice. Look for 36mm or thicker tubes, advanced damping controls, and travel between 140mm and 170mm that matches your frame's original design.

• Heavy-Duty Haulers and Fat E-Bikes: If you have a cargo e-bike, a fat tire e-bike, or you're a heavier rider who wants ultimate stiffness and durability, a purpose-built fat bike suspension fork is an excellent choice.

Step 3: Consider Your Budget

Fork prices can range from a few hundred dollars for a basic coil fork to over a thousand for a top-tier, e-tuned air suspension fork. While it's a big investment, remember that the fork affects your ride quality and control more than almost any other part.

Conclusion: Building the Right Foundation

Your ebike fork isn't just an add-on part. It's a foundation component that defines how your bike feels and what it can do. As we've seen, the extra weight, speed, and braking forces of an e-bike create unique demands that a standard fork often can't handle well.

Understanding what an "E-Bike Rated" fork offers is key to making sure your bike lasts and performs well. These forks aren't just marketing terms—they represent real engineering with stronger structures and specially tuned internals.

For those who want the best stiffness and control, the often-overlooked fat bike fork gives a strong and highly effective solution for many types of e-bikes. Investing in a proper fork upgrade is a direct investment in your confidence, safety, and enjoyment of every ride.

FAQ

Q: Can I put any suspension fork on my e-bike?
A: No, you need to make sure the fork matches your bike's steerer tube size, wheel size, and axle standard. You also want to choose a fork that can handle the extra weight and forces of an e-bike, preferably one that's "E-Bike Rated."

Q: What's the difference between air and coil suspension forks for e-bikes?
A: Air forks are lighter and easily adjustable with a pump, making them great for riders who want to fine-tune their setup. Coil forks are heavier but provide excellent small-bump sensitivity and require less maintenance, making them good for commuters.

Q: Why would I consider a fat bike fork for my regular e-bike?
A: Fat bike forks are built extra strong to handle huge tires and extreme conditions. This makes them incredibly durable and stiff for regular e-bikes, providing better steering precision and long-term reliability, especially if you can fit one with your wheel and frame.

Q: How much travel do I need on my e-bike fork?
A: It depends on your riding style. Commuters typically need 100-120mm, while off-road e-mountain bikers might want 140-170mm. More travel isn't always better—it needs to match your frame's design and intended use.

Q: Is an "E-Bike Rated" fork worth the extra cost?
A: Yes, if you ride regularly and want long-term durability. E-bike rated forks have reinforced internal parts, stronger crowns and steerer tubes, and damping tuned specifically for the higher weights and forces of e-bikes, which means better performance and longer life.
