Cost to Replace Brake Pads and Rotors: eBike Repair Guide

Why Electric Bike Brake Repairs Cost More

When your electric bike brakes start to feel less responsive, you might worry about the repair bill. The cost to replace brake pads and rotors on an e-bike can range from $75 to over $300 per wheel. This price depends on the type of brakes you have, the quality of parts you choose, and local bike shop labor rates.

Unlike regular bikes or cars, your e-bike's braking system faces unique stress from extra weight and speed. This makes proper maintenance critical for safety. In this guide, we'll break down these costs, help you spot warning signs, and decide between DIY repairs and professional service.

Why eBike Brakes Differ

E-bike brakes aren't just regular bike brakes on a heavier frame. The system handles forces that normal bikes rarely face, which explains why repairs can cost more.

The main factors are weight and speed. A typical e-bike weighs 50-70 pounds, much more than a regular bike. When you add a rider and cargo, the total weight that needs stopping is huge. Combine this with assisted speeds up to 20 or 28 mph, and you create massive energy that your brakes must handle safely. This is why quality e-bikes use specific brake types:

• Mechanical Disc Brakes: These use a steel cable to pull the brake part that squeezes pads against the rotor. They cost less but offer less power than hydraulic brakes.
• Hydraulic Disc Brakes: These use fluid in a sealed system to transfer force from the lever to the brake part. They provide better stopping power and control, making them standard on mid-to-high-end e-bikes.
• Brake Cutoff Sensors: These sensors cut power to the motor instantly when you touch the brake levers. This vital safety feature prevents the motor from fighting you while you try to stop.

Signs for a Brake Repair

Your e-bike gives clear warning signs when brakes need attention. Ignoring them isn't just risky-it's dangerous.

Warning Signs for Pads

• Sound Warnings: Listen to your brakes when you use them. Light squealing might just be dirt or water, but constant metallic screeching means the pads are low. A deep grinding noise is an emergency-you've worn through the pad material completely.
• Visual Check: Look into the brake part where it sits over the rotor. You should see pad material on both sides of the rotor. If the material is less than 1.5mm thick (about as thick as a dime), replace them.
• Loose Lever Feel: With hydraulic brakes, a mushy feel at the lever often means worn pads or air in the system. For mechanical brakes, a lever that pulls to the handlebar without stopping means worn pads or stretched cables.

Warning Signs for Rotors

• Visible Damage: Look at the rotor surface for problems. A rainbow or blue-purple color means overheating from heavy braking. Deep grooves mean damage from worn-out pads.
• Shaking or Vibration: If you feel pulsing through the brake lever when you brake, your rotor is bent or warped. This uneven surface reduces braking power.
• Thinning: Rotors wear down over time and have minimum thickness marked on them. You can often spot a worn rotor by its dished-out look where the pads touch.

Breaking Down The Cost

Understanding what you pay for makes the repair bill clearer. The total cost to replace brake pads and rotors combines parts and labor costs.

Parts Cost: Pads and Rotors

The parts themselves make up a big portion of the final price.

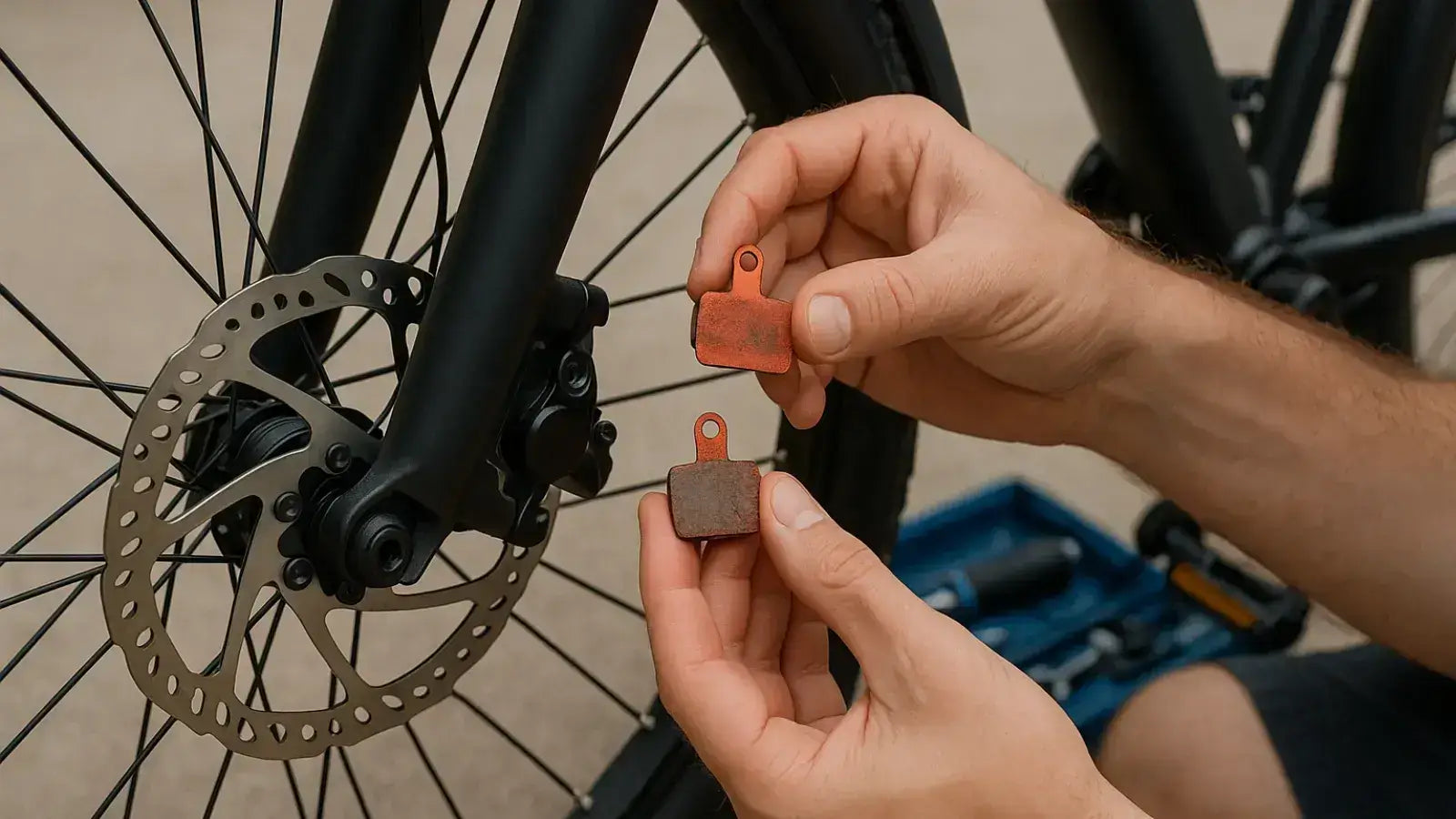

Brake Pads: The pad material affects how they work, noise, and price.

• Resin Pads: These are quieter and grab well at first but wear faster, especially when wet. Cost: $15-$25 per pair.
• Metallic Pads: Made from metal particles, these last longer and work better in wet conditions but can be noisier. Cost: $20-$40 per pair.
• Ceramic Pads: These blend the best of both-quiet like resin but last longer like metallic pads. Cost: $30-$50+ per pair.

Brake Rotors: Cost changes with size, brand, and how they're made.

• Standard Rotors: A solid steel rotor works well for most e-bikes. Cost: $20 - $50 each.
• Heat-Managing Rotors: These high-performance rotors handle heat better, reducing brake fade on long hills. Cost: $50 - $100+ each.

Labor Costs: Pro vs. DIY

• Professional Shop: Labor rates range from $60 to $120 per hour depending on your area. Simple pad replacement takes 15-30 minutes per wheel, costing $25-$50. Full service with pads, rotors, and brake bleeding takes an hour or more, costing $75-$150+ per wheel.
• DIY: If you do it yourself, you only pay for parts and tools.

Cost Comparison Table

This table shows what you can expect to pay.

The DIY Replacement Route

For those who like working on bikes, replacing your own electric bike brake parts can save money and teach you skills. However, brakes are safety equipment, so mistakes can be dangerous.

Is DIY Right for You?

Ask yourself these questions:
- Do you own or want to buy the needed tools?
- Are you comfortable following detailed instructions?
- Do you understand that mistakes could cause brake failure?
- Are you patient enough to learn and do the job right?

If you answered yes to these, you might be ready for DIY repair.

Essential Tools for the Job

• Basic Tools: Hex key set, needle-nose pliers, rubber gloves, rubbing alcohol, and clean rags.
• Brake Tools: A disc brake piston press and a torque wrench to tighten bolts correctly.
• For Hydraulic Brakes: A bleed kit specific to your brake brand is required for fluid changes.

Step-by-Step Overview

This is a summary, not a complete guide. Always follow your brake maker's instructions.

1. Remove the Wheel: Take the wheel off to access the brake part clearly.
2. Remove Old Pads: Pull out the pin or bolt holding the pads, then remove old pads.
3. Clean and Reset Pistons: Clean inside the brake part with rubbing alcohol, then push pistons back gently.
4. Insert New Pads: Slide new pads in and secure with the pin or bolt.
5. Put Wheel Back: Install the wheel and center the brake part over the rotor.
6. Break In the Brakes: Do 10-15 controlled stops from moderate speed to transfer pad material to the rotor.

Pro-Tips for Brake Life

Smart habits can make your brakes last longer and reduce the cost to replace ebike brake pads and rotors.

Ride Smarter, Not Harder

• Plan Your Stops: Look ahead and start slowing down early instead of braking hard at the last second.
• Use Both Brakes: Your front brake does most of the work, but using both brakes evenly makes them last longer.

Keep It Clean

Dirt and oil are bad for disc brakes.

• Clean Rotors Often: After washing your bike or dirty rides, wipe rotors with a clean rag and rubbing alcohol.
• Watch Out for Sprays: Never spray lubricants near your brake parts-the overspray can ruin the pads.

Check Regularly

Make brake checks part of your routine. Once a month, look at pad thickness and spin wheels to check that rotors are straight. Catching problems early is cheaper and safer than dealing with failure.

Your Safety is the Priority

The cost to replace brake pads and rotors is small compared to your safety. Whether you visit a professional for peace of mind or do the work yourself to save money, don't delay needed repairs. Well-maintained brakes give you confidence to ride faster, explore further, and stop safely every time. Choose what fits your budget and skill level, and enjoy the ride.

FAQ

How often should I replace my e-bike brake pads?

E-bike brake pads typically need replacement every 1,000-3,000 miles, depending on your riding style, terrain, and brake type. Heavy riders, hilly areas, and frequent stops wear pads faster. Check pad thickness monthly-replace when less than 1.5mm thick.

Can I use regular bike brake pads on my e-bike?

While some regular bike pads may fit, e-bikes need pads designed for higher speeds and weights. Using proper e-bike brake pads ensures better stopping power and safety. Always check your brake manufacturer's recommendations for compatible pad types.

How do I know if my brake rotors need replacing?

Replace rotors if you see deep grooves, blue discoloration from overheating, or if they're thinner than the minimum thickness marked on them. Bent or warped rotors that cause vibration when braking also need replacement.

Is it safe to replace e-bike brakes myself?

DIY brake replacement can be safe if you have the right tools, follow manufacturer instructions carefully, and understand the risks. Since brakes are critical safety components, consider professional service if you're unsure about any step in the process.

Why do hydraulic brake repairs cost more than mechanical ones?

Hydraulic brakes require special tools for bleeding air from the system and use specific brake fluid. The process is more complex and time-consuming than mechanical brake adjustments, leading to higher labor costs. However, hydraulic brakes typically offer better performance and longevity.
