Built for Safety, Comfort, and Off-Road Riding

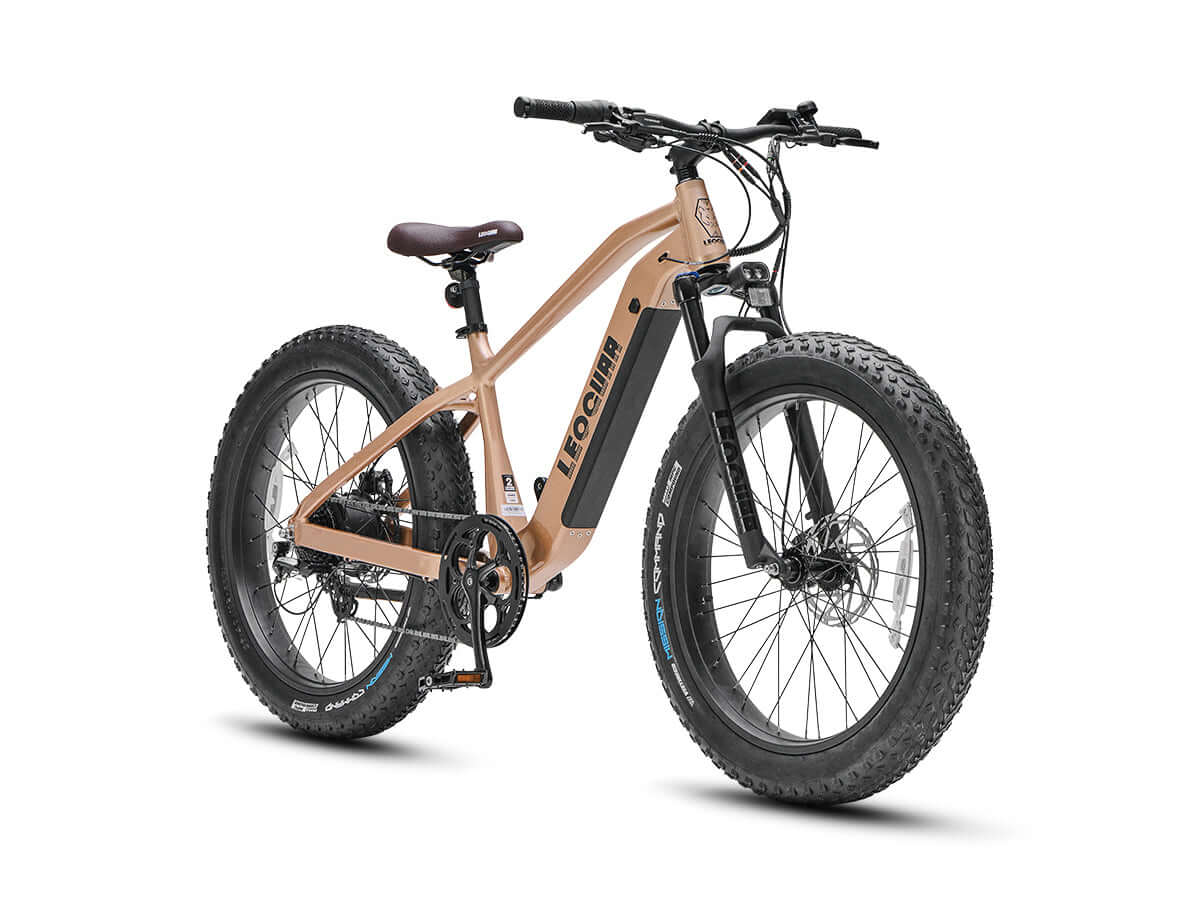

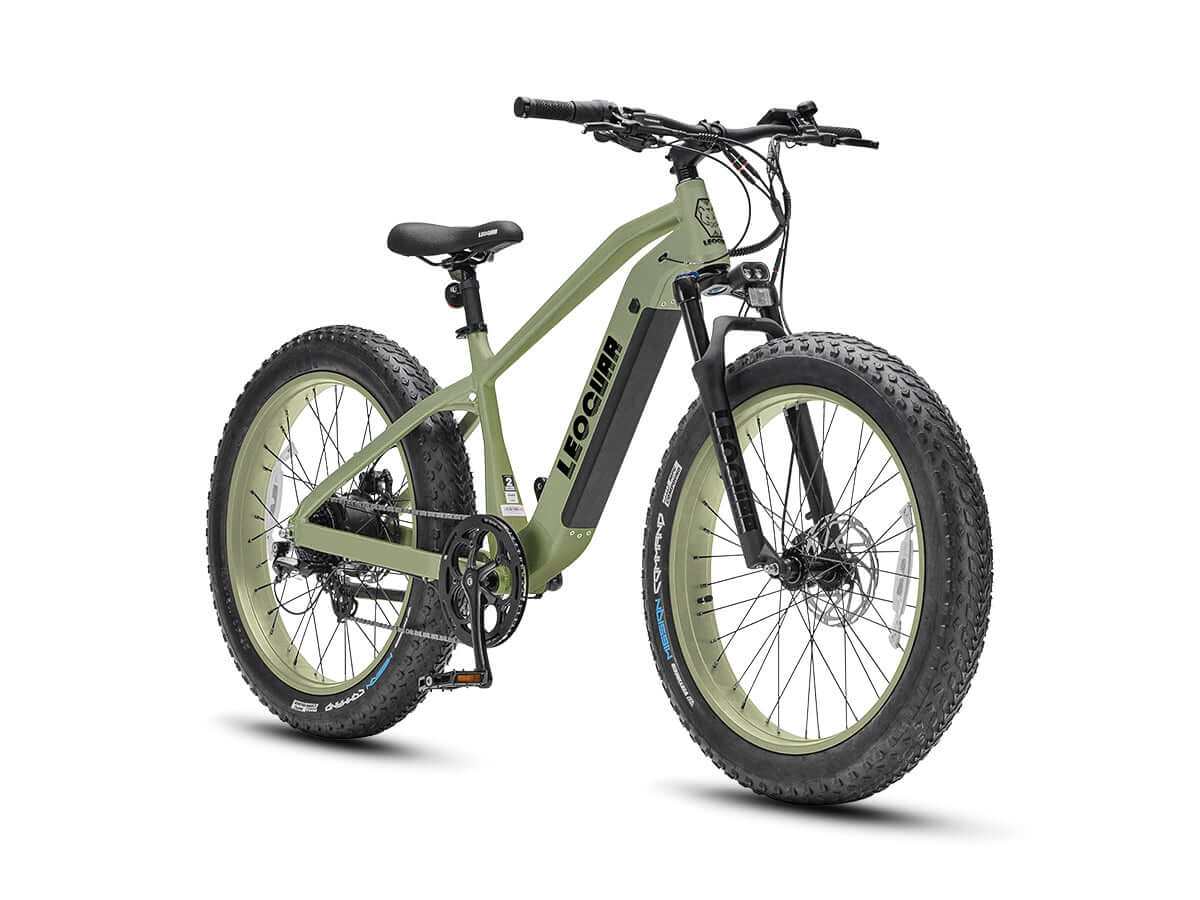

Glide with Fastron SO Ebike

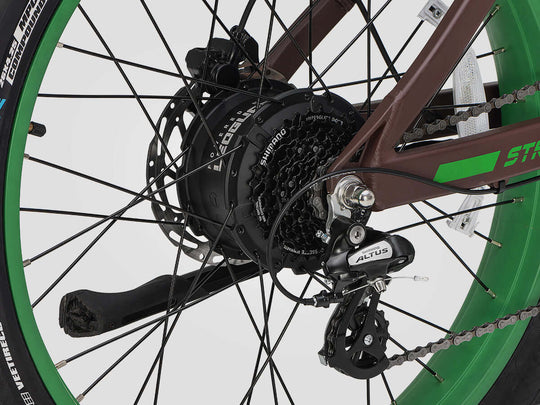

Enjoy smooth, quiet rides with our 750W rear hub motor and whisper-silent drivetrain. The 48V 15Ah battery gives you up to 60 miles of assisted range, while the half-twist throttle and 5 pedal assist levels make every hill effortless. Ideal for city or trail riding with confidence and ease.

Conquer Every Wild Terrain

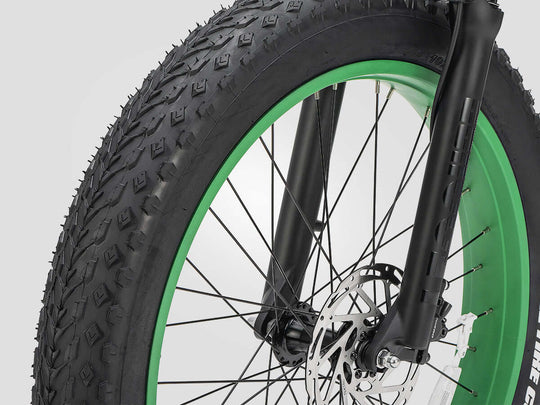

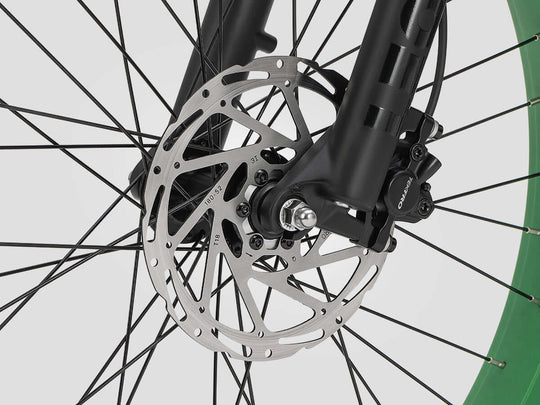

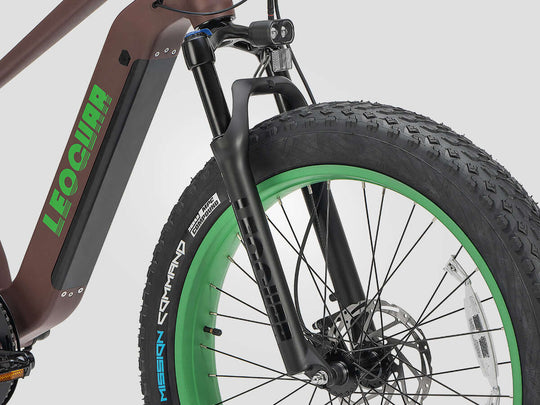

Tackle sand, snow, and trails with our 26"x4.0" fat tires and 3.14" front suspension. The Tektro hydraulic disc brakes deliver safe stopping in all weather. Built tough for off-road adventures, this ebike gives you control, grip, and stability on every ride.

Comfort in Every Ride

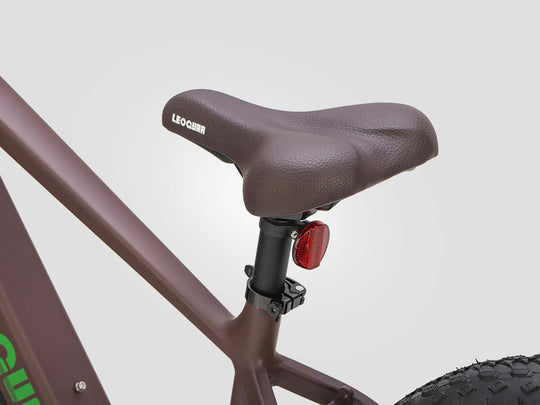

From adjustable leather saddle to ergonomic alloy handlebars, every detail puts comfort first. The sturdy step-over frame supports up to 300 lbs, fitting riders 5'3" to 6'5". Whether commuting or exploring, this ebike ensures a smooth and upright ride you’ll love.

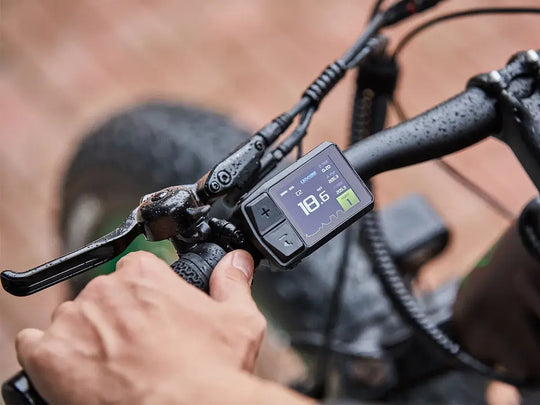

Smart Display, Simple Control
The full-color LCD display with CANbus technology keeps you updated on speed, battery level, and pedal assist mode—all clearly visible even under direct sunlight. Easily switch between 5 assist levels, charge your devices via the built-in USB port, and ride confidently in any weather thanks to its IP65 waterproof rating.
Features
General
Electronics
Components
General
-
Frame 6061 Aluminum Alloy
-
Rear Basket Load Capacity 55lbs, Optional, a separate purchase needed
-
Rider Height 5'3" - 6'5"
-
Frame Style Trail or off road
-
Speed 20 MPH, Unlockable to 28 MPH
-
Range Up to 60 Miles
-
Type Trail, Off-Road
-
Brake Levers Tektro Brake Lever with Power Cut-Off Sensor
-
Bell Included
-
Rotors 180mm Rotor
-
Kickstand Alloy Rigid Side Kickstand
-
Bike Weight 70lbs including the battery weight
-
Total Weight Limit 300 lbs
-
Ideal Use Trail or off road
-
Pedal Assist 5 Levels
-
Charger 54.6V DC, 3A smart charger, operates on 100V-240V AC power outlets
-
USB Port One USB-C port, located on display
-
Headlight 48V LED with quick disconnect
-
Motor Hub 48V 750W 85Nm
-
Battery 48V15Ah (720Wh) Canbus Protocol, Certified by UL 2271
-
Sensor Cadence Sensor
-
Cell LG 21700 5000mah cells
-
Charging Time About 5 Hours
-
Display Color Display and 5 Speed Levels, Canbus Protocol
-
Throttle Assist Half Twist Throttle
-
Tail Light LED with brake light
-
Chainrings 52T Alloy Forged
-
Crankset Alloy Forged 6.89"
-
Rear Derailleur Shimano RD-M360/acera
-
Brakes Tektro Hydraulic Disc Brakes
-
Rims 26'' * 3.15" 36h, Alloy Double Wall
-
Tires Vee 26''*4.0, 72TPI
-
Spokes Stainless Steel, 13G Front / 12G Rear
-
Handlebars Aluminum Alloy, D:1.25" W:29.53"
-
Stem Black 3D Forged, 3.15" Length, 7° Rise, 1.25" Handlebar Clamp
-
Saddle Custom made comfy Leather Seat (Litchi Texture)
-
Seatpost 1.21" 13.78" length, forged and rigid
-
Fenders Metal, Optional, a separate purchase needed
-
Pedals Wellgo Brand, Double Bearing and Forged
-
Rear rack Black Aluminum Alloy, Optional, a separate purchase needed
-
Cassette Shimano CS-HG20-8/12-32T/8sp cassette
-
Front Fork Alloy threadless and oil suspension with lockout, 3.14" travel
-
Shift lever 8sp Trigger Lever
-
Chain 128 links, 8sp, KMC Rust-proof
A -- Head Tube Length
5.91"
B -- Top Tube Length
24.41"
C -- Seat Tube Length
17.52"
D -- Stack Height
26.06"
E -- Reach
16.46"
F -- Chainstay Length
20.47"
G -- Wheelbase
49.21"
H -- Wheel Diameter
29.53"
I -- Standover Height
43.31"
J -- Minimum Saddle Height
33.07"
K -- Maximum Saddle Height
40.55"
L -- Minimum Saddle to B.B height
22.64"
M -- Maximum Saddle to B.B height
30.12"
Real-world Range Testing
Leoguar Ebikes Reviews
To unlock the top speed of your Fastron SO, which is set to a default of 20 MPH, follow these steps: Navigate to the settings page on the display -> Enter the advanced settings -> Input the password (please email us to obtain the password) -> Change the C3 option from 'off' to 'on' -> Save the settings and exit. This will activate the capability to reach up to 28 MPH.
Fat tires significantly improve traction and stability on a variety of terrains, offering a smoother, more comfortable ride. Their wide surface area enhances grip in both wet and dry conditions, reducing the impact of bumps and ensuring a safer, more controlled cycling experience across all terrain types.

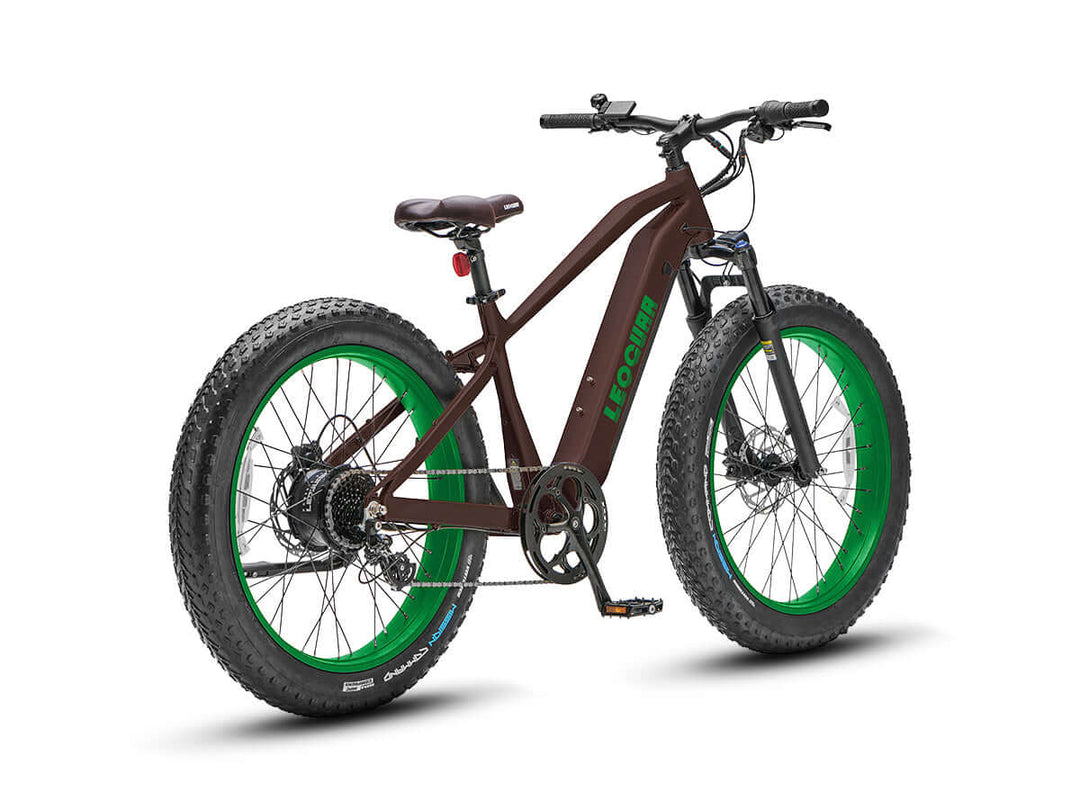

The Fastron SO, a step-over bike, features a high top tube for unmatched stability and power, providing better control and efficiency for those who love speed and adventure. It's perfect for off-road riding, making it ideal for active riders!
The only difference between the Fastron ST and Fastron SO is the design of the top tube. Your choice depends on personal needs and cycling habits. If you're looking for easy mounting/dismounting and a comfortable ride, the Fastron ST's step-thru design is for you. But if you crave speed, intense riding experiences, or need extra stability for challenging conditions, the Fastron SO's step-over design is the better option.
The recommended rider height is 5'3" ~ 6'4", payload 350lbs at maximum.
To charge your Fastron SO's battery, you have two options: Directly connect the charger to the charging port on the bike's frame, or use the key to unlock the battery package, remove the battery, and charge it separately. A full charge typically takes only 4-5 hours.
For further information and solutions, please refer to our FAQs or email info@leoguarbikes.com.
