Mid-Drive E-Bike Motors Explained: What You Need to Know Before Upgrading
The Heart of Performance
Have you ever found yourself grinding up a steep hill, wishing for just a bit more power? Or perhaps you own an e-bike but find the power delivery feels more like a sudden push than a natural extension of your own effort. If you're seeking a better ride, the answer lies at the center of the bike: the mid-drive motor.

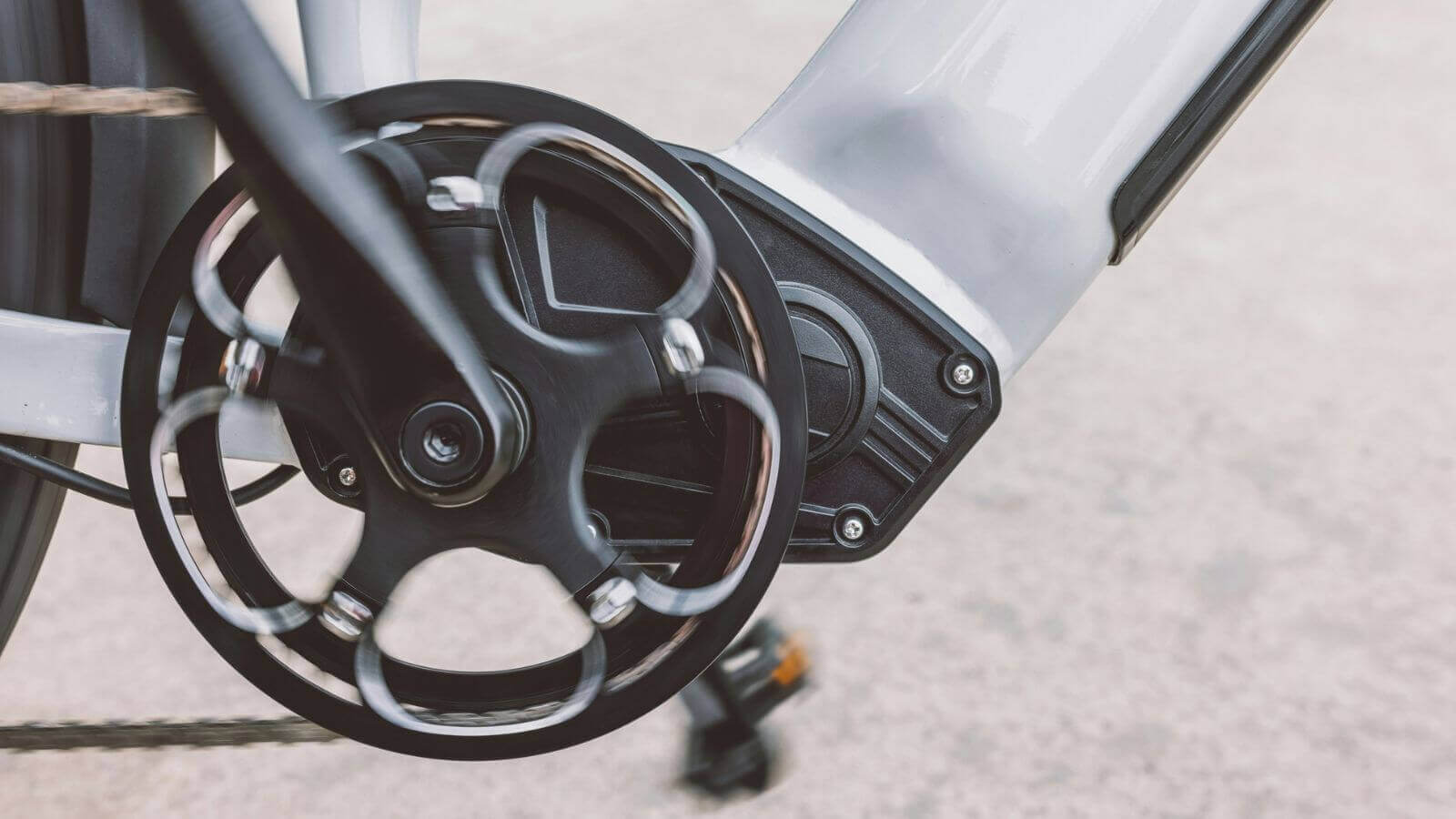

A mid-drive motor is an advanced power unit located at the bike's crankset, where the pedals attach. Instead of just spinning a wheel, it applies power directly to the drivetrain, which gives you much better control and efficiency. This article will provide all the information you need to understand this technology, compare it to other options, and confidently decide whether to purchase a complete mid drive electric bicycle or upgrade your current ride with an electric bicycle mid drive kit.
We'll explore why this system delivers exceptional natural ride feel, superior efficiency, and unmatched climbing power.
The Technical Advantage
To appreciate why mid-drive systems are the gold standard for performance e-bikes, it's essential to understand how they work. The design is fundamentally different from other motor types, and this difference is the source of its key advantages.
Powering the Drivetrain
A mid-drive motor's defining feature is that it powers the crankset, not the wheel directly. Think of it as adding a super-strong set of legs that work in harmony with your own. This allows the motor to leverage your bike's existing gears.
When you shift to a low gear to climb a hill, the motor also gets the advantage of that gearing, multiplying its torque to make steep ascents feel effortless. In contrast, a hub motor, located in the hub of the front or rear wheel, powers the wheel directly. It operates independently of your gears, which means it can't leverage mechanical advantage on hills and can struggle under high load at low speeds.
Torque vs. Cadence Sensors
The secret to the celebrated "natural feel" of a mid-drive system lies in its sensors. Premium systems don't just know if you're pedaling; they know how hard you're pedaling.
Torque Sensor: This sensor measures the force you apply to the pedals. The motor's assistance is directly proportional to your effort. Pedal lightly, and you get a gentle boost.
Push hard, and the motor responds with significant power. This creates an intuitive, seamless experience that feels like you're simply a much stronger version of yourself.
Cadence Sensor: This sensor simply detects that the pedals are rotating. Once it senses movement, it delivers a pre-set level of assistance. This can sometimes feel less responsive, with a slight delay or a sensation of the motor "kicking in" rather than blending with your input.
Most high-quality mid-drive systems from brands like Bosch and Shimano use sophisticated torque sensors, prioritizing a smooth and reliable user experience over raw power specs alone.
Real-World Scenarios
Technical specifications only tell part of the story. To truly understand the difference, let's see how mid-drive and hub-drive systems perform in common riding situations. We've ridden both extensively, and the feeling is what truly sets them apart.
A mid-drive feels integrated and controlled, while a hub drive can often feel like it's giving you a push from behind.
| Riding Scenario | Mid-Drive Motor Performance | Hub Motor Performance |
|---|---|---|
| Starting on a Steep Hill | Excellent. Leverages low gears for immense starting torque. Power application is smooth and controlled, allowing you to start from a dead stop with confidence. | Can struggle significantly. Without the benefit of gearing, the motor may not have enough torque to get you moving. Often requires a running start or intense leg power before the motor engages effectively. |
| Technical Trail Riding | Superior. The motor's weight is low and centered in the frame, providing excellent balance and nimble handling. The predictable, torque-based power delivery is crucial for navigating roots, rocks, and tight corners. | Can make the bike feel unbalanced, with a heavy rear wheel that can get bogged down or break traction. Power delivery can feel jerky or surge unexpectedly, making precise control difficult on technical terrain. |
| High-Speed Commuting | Efficient and stable. The motor integrates smoothly with your pedaling cadence at all speeds, providing consistent assist as you shift through the gears. Feels planted and secure. | Can be very effective on flat ground, providing a "tailwind" sensation. However, it may feel less efficient at higher pedaling speeds and the weight in the wheel can contribute to a less stable feeling at speed. |
| Battery Range on Hilly Routes | More efficient. By using the bike's gears, the motor can operate in its optimal RPM range, much like a car's engine. This conserves energy and maximizes battery range, especially on varied terrain. | Less efficient. The motor is forced to work harder at low speeds on hills, drawing more current and draining the battery much faster. The range difference can be substantial on a route with significant elevation changes. |
| Maintenance & Tire Changes | Simple. Both the front and rear wheels are standard bicycle wheels. Changing a flat tire is no different than on a non-electric bike, as there are no motor cables connected to the wheel. | More complex. The rear wheel is connected by power cables and often secured with heavy-duty axle nuts. Removing the wheel to fix a flat is more involved and requires disconnecting the motor. |
Complete Bike or DIY Kit?
Once you've decided a mid-drive is right for you, the next question is how to get one. You have two main paths: buying a purpose-built mid drive electric bicycle or converting your current bike with an electric bicycle mid drive kit.
The Case for a Complete Bike
For riders seeking a seamless, reliable, and hassle-free experience, a complete mid-drive e-bike is the clear winner. When you buy a bike from manufacturers like Trek, Specialized, or Ride1Up, every component has been designed to work together as a cohesive system. The frame is engineered to handle the motor's torque, the brakes are specified for higher speeds, and the drivetrain is robust enough for the added power.
You also get a comprehensive warranty covering the entire bike—motor, battery, and frame. This is the "peace of mind" option for those who want to ride, not wrench.
The Allure of a DIY Kit
The DIY route holds significant appeal for the hands-on cyclist. The primary benefits are cost-effectiveness and ultimate customization. If you already own a quality bike that you love, a conversion kit allows you to add electric power for a fraction of the cost of a new premium e-bike.
This path is for the tinkerer who enjoys building a bike to their exact specifications, from motor power to battery size. With quality kits, it's possible to achieve a natural ride feel that rivals many pre-built systems.
Choosing the Right Kit
If you're leaning towards a DIY conversion, navigating the market for an electric bicycle mid drive kit can be daunting. Success depends on careful planning and choosing the right components for your bike and riding style. Here are the critical factors to consider.
Bike Compatibility
This is the most crucial step. A motor that doesn't fit is a costly paperweight.
Bottom Bracket: You must measure your bike's bottom bracket shell width and determine its type. The vast majority of kits are designed for a standard threaded BSA bottom bracket with a shell width of 68mm to 73mm. Measure this carefully.
Some kits are available for wider fat bike bottom brackets (100mm or 120mm).
Frame Material & Geometry: Be cautious with carbon fiber frames, as most are not designed to have a motor clamped onto the bottom bracket shell. Aluminum and steel frames are generally ideal. Also, check for clearance around the bottom bracket area to ensure the motor casing will fit without hitting the chainstays.
For detailed compatibility charts, always check with e-bike conversion specialists before purchasing.
Power and Torque (Watts & Nm)
Don't just chase the highest numbers. Consider your needs and local laws.
Power (Watts): 250W to 500W is ample for commuting, general fitness, and tackling moderate hills. 750W to 1000W+ kits are for heavy-duty use, serious off-roading, cargo hauling, or riders who want extreme performance.
Torque (Nm): This is the measure of twisting force and is key for acceleration and climbing. Kits commonly range from 80Nm (similar to many Bosch or Shimano systems) to a massive 160Nm or more on high-performance models like the Bafang BBSHD.
Battery Specifications
The battery is your fuel tank. Its specs determine your power and range.
Voltage (V): Determines how forcefully the power is delivered. Common systems are 36V, 48V, and 52V. Higher voltage generally means more power and efficiency.
Amp Hours (Ah): This is the capacity, or how long the battery can sustain a current draw. More Ah means longer range.
Watt Hours (Wh): This is the best overall measure of a battery's total energy. Simply multiply Volts by Amp Hours (V x Ah = Wh) to compare total capacity. A 500Wh battery is a good starting point for most riders.
Brand Reputation and Support
You are your own mechanic with a DIY kit, so community support is vital.
Popular Brands: Brands like Bafang (with their ubiquitous BBS02 and BBSHD models) and Tongsheng (known for their torque-sensing TSDZ2) are popular for a reason. They have a proven track record and massive online communities.
Community Resources: Before buying, spend time on DIY e-bike forums to read real-world reviews and troubleshooting threads. You can also find in-depth reviews of mid-drive bikes to see what features you might want to replicate in your own build.
The DIY Reality Check
Converting a bike is an incredibly rewarding project, but it's more than just bolting on a motor. We want you to succeed, so it's important to go in with a clear understanding of the entire process.
Essential Tools and Skills
A successful installation requires more than the Allen keys that came with your furniture. You will absolutely need a crank puller and a bottom bracket tool specific to your bike to remove the old components. A chain breaker and a set of quality wrenches are also essential.
Beyond tools, you should be comfortable with basic bike mechanics, like adjusting derailleurs, and have a fundamental understanding of connecting simple color-coded electronics.
Drivetrain Durability
A powerful mid-drive motor puts significantly more stress on your drivetrain than your legs ever could. Your chain, cassette, and chainring are now wear items that will need to be replaced more frequently. Many builders choose to upgrade to stronger, e-bike specific chains and components to handle the extra torque and prevent premature wear or breakage, especially with higher-powered 750W or 1000W kits.
Cable Management and Aesthetics
A key difference between a professional-looking build and a messy one is cable management. You will have several new wires to route: from the battery to the motor, from the motor to the handlebar display, and to the various sensors and throttle. Taking the time to route these cables neatly using zip ties or adhesive guides is critical not only for aesthetics but also for safety, preventing them from snagging on branches or interfering with steering.
Troubleshooting and Support
When you build your own e-bike, you become the lead technician and support department. While brands like Bafang are reliable, issues can arise. There is no single warranty hotline to call when a connection is loose or a setting needs to be programmed.
The good news is that the online DIY community is vast and incredibly helpful, but you must be prepared to do the research, ask questions, and learn to diagnose problems yourself.
Frequently Asked Questions
Q: How much does it cost to convert my bike with a mid-drive kit compared to buying a complete e-bike?
A: A quality mid-drive conversion kit typically costs between $800-$1,500 including battery, while complete mid-drive e-bikes start around $2,000-$3,000. However, you'll need to factor in installation costs if you're not doing it yourself, plus potential upgrades to your existing bike's components to handle the added power.
Q: Can I install a mid-drive kit on any bicycle?
A: Not all bikes are suitable for mid-drive conversion. Your bike needs a standard threaded bottom bracket (68-73mm width), and the frame should be aluminum or steel rather than carbon fiber. You'll also need adequate clearance around the bottom bracket area for the motor housing.
Q: How does the range of a mid-drive e-bike compare to a hub-drive system?
A: Mid-drive systems are generally more efficient, especially on hilly terrain, because they can leverage your bike's gears to keep the motor operating in its optimal RPM range. This typically results in 10-20% better range compared to hub-drive systems on varied terrain, though the difference is less noticeable on flat ground.
Q: What maintenance issues should I expect with a mid-drive motor?
A: Mid-drive motors put more stress on your drivetrain components, so you'll need to replace chains, cassettes, and chainrings more frequently. The motor itself is generally reliable, but you should keep it clean and dry. Most quality mid-drive systems require minimal maintenance beyond regular drivetrain care.
Q: Is a torque sensor really that much better than a cadence sensor?
A: Yes, the difference is quite noticeable. Torque sensors provide a much more natural riding experience because the motor assistance is proportional to how hard you're pedaling. Cadence sensors simply detect pedal movement and provide a set level of assistance, which can feel less intuitive and sometimes results in sudden power delivery.
