How to Choose Between a Hitch Bike Rack and a Ladder Rack for Your RV?

Picking how to carry bikes on your RV trip is tough. You need something safe, secure, and right for your vehicle and how you travel. The two main choices are hitch-mounted racks and ladder-mounted racks, and each has good points and big limits. For RVers who want a quick answer, we have broken down the main differences.

Here's a direct comparison to help you quickly find the best choice.

This table shows you the big picture. If you're carrying anything heavier than two regular road bikes, or if safety is your top goal, a hitch rack is almost always your best bet. If you have two very light bikes and a strong ladder, a ladder rack is simple and cheap. Now, let's look at the details.

A Deep Dive Into Hitch Bike Racks for RVs

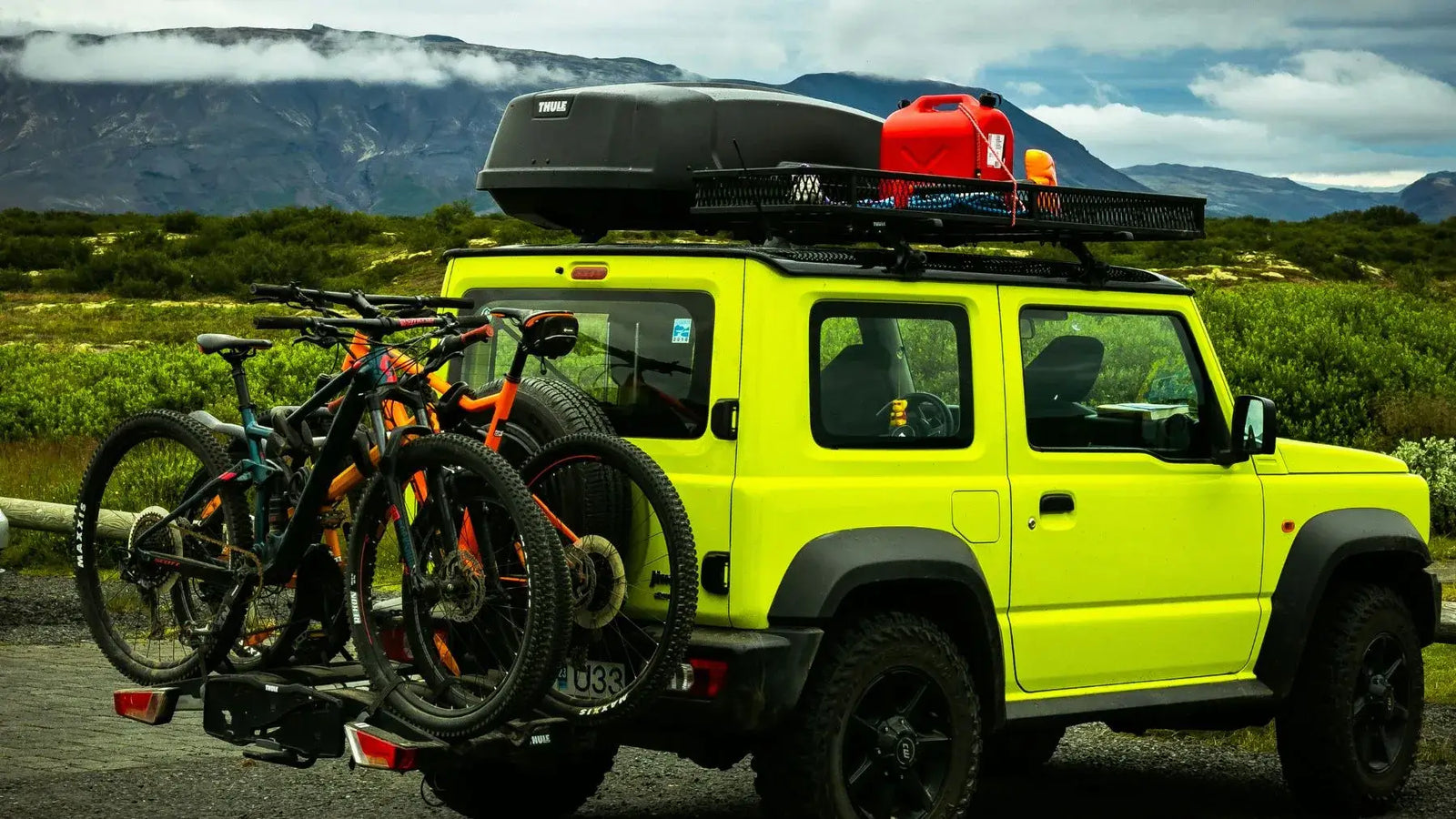

Hitch-mounted bike racks are the best choice for carrying bikes on an RV for good reasons. They connect right to the vehicle's frame through a hitch receiver, giving strength and stability that other systems can't beat.

Unmatched Strengths

Unrivaled Strength and Capacity: This is the main advantage. Hitch racks can handle serious weight. Many good models can support total loads between 100 and 250 lbs. This makes them the only safe choice for carrying multiple heavy mountain e bikes or the popular, heavy e-bikes.

Superior Security and Stability: The connection to the RV's frame gives a solid, secure ride for your valuable electric bikes. There's much less sway and bounce compared to other mounting systems. As experts point out, there are two aspects of security to consider: locking the rack itself to the hitch receiver and locking the bikes to the rack. Most good hitch racks offer strong, built-in locking systems for both.

Versatility in Design: Hitch racks come in two main styles: platform racks, where bikes sit on trays, and hanging racks, where bikes hang from the frame. Platform racks are usually more secure and easier to load. Also, many models offer features like a tilt-down function for trunk access or a swing-away design that moves the whole rack out of the way, letting you fully access rear storage areas or doors on your RV.

The Hurdles

The Hitch Requirement: A hitch rack won't work without a hitch. A proper, frame-mounted 2-inch hitch receiver is required. While many Class A and Class C motorhomes come with one, many travel trailers and smaller RVs do not. A bumper-mounted hitch is not safe for this use.

Complex Hitch Installation: If your RV doesn't have a receiver, you're looking at a big project. A proper hitch installation for bike rack use means more than just bolting a part to the bumper. It must be safely welded or bolted to the main frame of the RV to handle the forces of a loaded rack bouncing down the highway. This is often a job for a professional welding or RV service shop to make sure it's done safely.

Cost and Added Weight: Good hitch racks cost money, often several hundred dollars or more. When you add the possible cost of a professional hitch installation for bike rack readiness, the total can be big. Both the hitch and the rack also add weight to the very rear of the RV, which can affect handling and must be counted in your total cargo-carrying capacity.

A Deep Dive Into RV Ladder Racks for Bikes

Ladder-mounted racks are often the first type new RV owners think about because they seem simple and cheap. While they have a place, we suggest being very careful. Their limits are serious and must be respected for the safety of your bikes, your RV, and other drivers on the road.

The Appeal

Simplicity and Ease of Use: The main draw of a ladder rack is its easy installation. Most models simply hook over the ladder rungs and are held with brackets or straps. The average RV owner can usually install one in under 30 minutes with basic hand tools.

Cost-Effectiveness: This is usually the cheapest way to get bikes onto your RV. Ladder racks cost much less than most good hitch racks, making them attractive for those on a tight budget.

Keeps the Hitch Free: By using the ladder, you leave your hitch receiver available for its main purpose: towing a vehicle. It also keeps it free for other hitch-mounted accessories like a cargo carrier.

The Critical Warnings

Strict Weight Limitations: This is the most important point to understand. Most RV ladders, and the racks made for them, are not built for heavy loads. As detailed by RV travel experts, there are serious weight restrictions. The total weight capacity is usually between 50 and 60 pounds. This means, at most, two lightweight adult bikes. You should never try to carry an e-bike or even a heavy downhill mountain bike on a ladder rack.

Ladder Integrity is Paramount: These racks should only ever be mounted on strong, factory-installed ladders that are safely bolted to the RV's structure. Check the points where the ladder attaches to the RV body. If they look weak, are loose, or if the ladder was added later, do not use a ladder rack. The forces from bouncing bikes can easily rip a weak ladder right off the back of the rig.

Potential for Damage: The vertical, increased bouncing motion at the far rear of an RV puts huge stress on both the ladder and the bikes. This constant shaking can lead to straps loosening, bike frames rubbing against each other or the ladder, and stress cracks in the ladder's weld points over time.

Hitch vs Ladder: Your RV Bike Rack Decision Framework

Now that we've covered the technical details, let's make this personal. Answering these four questions about your specific situation will lead you to a confident and safe decision.

What RV Do You Own?

If you have a large Class A, Class C, or fifth wheel that either has a pre-installed 2-inch receiver or a strong frame that can handle an aftermarket one, a hitch rack is your most flexible and secure option. The chassis is built to handle the load.

If you have a travel trailer or a smaller RV, you must be careful about tongue weight and the strength of the rear frame. Not all travel trailer frames can safely support a new hitch. If a hitch isn't an option but you have a clearly strong, factory-installed ladder, a ladder rack could work for a pair of truly lightweight bikes.

What Bikes Are You Carrying?

If you are carrying even one e-bike, a fat-tire bike, or more than two heavy mountain bikes, a hitch rack is your only safe choice. The weight is simply too much for any ladder system. Do not try to put an e-bike on a ladder rack under any circumstances.

If you are only carrying two lightweight road bikes, hybrid bikes, or kids' bikes with a combined weight well under 50 lbs, a ladder rack becomes a possible option, provided your ladder is secure and in excellent condition.

How Important is Rear Access?

If you need frequent access to a rear storage bay, an engine compartment, or a rear door, this is a critical factor. A standard hitch rack will completely block access. A ladder rack will also be an obstacle. In this case, you should specifically look for a swing-away style hitch rack, which is designed to solve this exact problem.

What Is Your Budget?

If your budget is tight and you need a simple solution for light bikes, the easy installation and low cost of a bike rack for ladder on rv is very appealing. It's a working entry-level solution if you meet the strict weight and ladder requirements.

If you view this as a long-term investment for valuable bikes, the higher cost associated with the rack and a potential professional hitch installation for a bike rack is a worthwhile expense. It buys you peace of mind, better security, and prepares you for heavier bikes in the future.

Installation and Safety Tips for Hitch and Ladder Racks

Over the years, we've installed and traveled with both types of racks. Theory is one thing, but real-world experience teaches a few lessons that aren't always in the instruction manual.

The Ladder Shake Test

Before you even buy a ladder rack, do this simple test. Grab the ladder firmly with both hands at about chest height and try to shake it. Push, pull, and try to move it side-to-side. Is there any give? Do the mounting points flex? Does it feel anything less than rock-solid? If you feel any significant movement, your ladder has failed the test. Do not mount a bike rack to it. In our experience, this simple test prevents the most common and catastrophic failures.

The Hitch Installation Imperative

For hitch racks, the single most critical safety factor is the hitch itself. A common mistake we see is RV owners attaching a bike rack to a simple 4-inch square tube bumper, sometimes using a cheap bolt-on receiver. These bumpers are thin-walled steel and are not designed to handle the twisting, bouncing force of a 150-pound load hanging off the back. They will eventually tear and fail. A proper hitch installation for a bike rack means the receiver is welded or bolted directly to the solid frame rails of the RV chassis. If you are not 100% confident in identifying these frame rails and doing the installation, pay a professional. It is the best money you will ever spend on this project.

The Post-Trip Check

This applies to both systems. No matter how secure things feel when you leave, the road has a way of working things loose. Make it a non-negotiable part of your routine to check your rack after the first 50 miles of any trip, and then again every time you stop for fuel or for the night. Wiggle the bikes. Check the straps. Put a hand on the rack's main mast and make sure it's still tight. This five-minute check can be the difference between arriving with your bikes and arriving with a damage report.

Frequently Asked Questions

1. Can I use a ladder rack for my e-bike?

No, you should never use a ladder rack for an e-bike. E-bikes typically weigh 40-70 pounds each, which exceeds the 50-60 pound total weight limit of most ladder rack systems. The extra weight can damage your RV's ladder or cause it to fail completely.

2. Do I need a professional to install a hitch for my bike rack?

If your RV doesn't already have a frame-mounted 2-inch receiver, professional installation is highly recommended. The hitch must be properly welded or bolted to the RV's main frame rails to safely handle the dynamic forces of loaded bikes. Improper installation can lead to dangerous failures.

3. How do I know if my RV ladder is strong enough for a bike rack?

Perform the shake test: grab your ladder firmly at chest height and try to shake it in all directions. If you feel any movement, flexing, or looseness at the mounting points, your ladder is not suitable for a bike rack. Only use factory-installed ladders that are securely bolted to the RV's structure.

4. What's the difference between a platform rack and a hanging rack?

Platform racks hold bikes on individual trays or platforms, while hanging racks suspend bikes from the top tube of the frame. Platform racks are generally more secure, easier to load, and put less stress on the bike frame, but they typically cost more than hanging racks.

5. Can I access my RV's rear storage with a bike rack installed?

Standard bike racks will block rear access completely. If you need frequent access to rear storage, engine compartments, or doors, look for a swing-away style hitch rack that can pivot out of the way, or consider a tilt-down model that provides limited access to trunk areas.
