How Frame of a Bike Affects Your Riding Experience
Anatomy of a Bike Frame
The frame is the heart of any bicycle. It's more than just a skeleton that holds everything together; it's the blueprint that controls everything from all-day comfort to race-winning speed. For any rider, understanding the frame is the first step toward understanding the ride itself.
Two key parts of frame design work together to define a bike's personality. These are geometry (the angles and lengths of the tubes) and material (what it's made of). These factors are the main drivers behind how a bike feels and performs on the road, trail, or bike path.
In this guide, we will explore how these parts create different riding experiences. We will also look at special needs for electric bike frames and give you the knowledge to choose the perfect frame of a bike for your needs. This will help make your next ride your best one yet.
To understand how a frame works, we first need to know its parts. While frames look different across bike types, most use the classic diamond shape. This design gives a proven balance of strength and low weight. Learning this basic vocabulary helps you understand the detailed discussions on geometry that follow.
Here are the core parts and what they do:
Top Tube: This tube connects the front of the bike to the seat area. Its length affects your reach and riding position.
Down Tube: The largest and most important structural tube connects the head tube to the bottom bracket. It gives most of the frame's stiffness and fights twisting forces.
Seat Tube: This tube holds the seatpost, which holds your saddle. Its length is the traditional way of measuring regular frame sizes and controls your saddle height range.
Head Tube: Located at the front, this short tube holds the fork and headset bearings. It acts as the pivot point for steering.
Chain Stays & Seat Stays: These pairs of tubes form the rear triangle. The chain stays run from the bottom bracket to the rear wheel, while the seat stays connect the top of the seat tube to the rear wheel. Together, they manage power transfer and rear-end comfort.
How Geometry Shapes Ride
If the frame is the blueprint, geometry is its posture. These are the specific angles and lengths that determine how you sit on the bike and how it works with the ground. It is the most important factor in a bike's handling and feel.
Key Geometry Metrics
While geometry charts can look scary, a few key numbers tell most of the story. Understanding them is the moment when numbers connect to real-world feel. As experts at Cycling Weekly note, a bike's geometry directly influences its handling.
Head Tube Angle: This is the angle of the head tube compared to the ground. A steep angle (closer to vertical, like 73°) gives quick, responsive steering that's ideal for race bikes. A slack angle (more angled, like 65°) provides more stability at high speeds and over rough terrain, which is why mountain bikes use it.
Seat Tube Angle: This angle determines your position over the pedals. A steeper angle (like 74-75°) puts you more directly over the bottom bracket for aggressive power delivery. A slacker angle gives a more relaxed, set-back position for cruising comfort.
Wheelbase: This is the distance between the center of the front and rear wheels. A longer wheelbase creates a more stable, predictable ride, while a shorter wheelbase makes a bike feel more nimble and quick.
Stack & Reach: These are the two most important measurements for bike fit. Stack is the vertical distance from the center of the bottom bracket to the top of the head tube; it controls how upright you will sit. A higher stack means more comfort. Reach is the horizontal distance between those same two points; it determines how stretched out you are. A longer reach creates a more aggressive, wind-cutting position.
Guide to Frame Materials
The material used to build the frame of a bike is just as important as its geometry. The choice of material balances four competing factors: weight, stiffness, compliance (ride comfort), and cost. Each material offers a unique mix of these traits. A deep-dive into bike frame materials shows there is no single best option, only the best option for a specific purpose and budget.
Today, aluminum and carbon fiber are the most common materials in the modern bike market for performance bikes. Steel maintains a strong, loyal following in touring, custom, and niche communities. Titanium remains the premium choice for those seeking a lifetime frame.
| Material | Key Characteristics | Best For |
|---|---|---|
| Steel (Chromoly) | Durable, comfortable (naturally dampens vibrations), easily repairable, but relatively heavy. | Touring bikes, bike-packing, commuters, and classic road bikes where durability and comfort trump low weight. |
| Aluminum | Lightweight, very stiff for good power transfer, corrosion-resistant, and highly affordable. Can feel harsh on rough surfaces. | Entry-to-mid-level road and mountain bikes. An excellent choice for achieving high performance on a budget. |
| Carbon Fiber | Ultra-lightweight and incredibly versatile. Can be engineered to be stiff in one direction and compliant in another. Very strong, but expensive and can be vulnerable to sharp impacts. | High-performance road, gravel, and mountain bikes where low weight and tuned performance are the top priorities. |
| Titanium | Combines the low weight of aluminum with the comfortable ride and durability of steel. It will not rust or corrode, creating a forever frame. The primary drawback is its very high cost. | Premium, custom-built bikes for discerning riders seeking a lifetime investment in ride quality and longevity. |
Comfort vs. Performance
Every bike exists on a spectrum between pure comfort and pure performance. Where a bike falls on this spectrum is determined by how its geometry and frame material work together. Understanding this trade-off is the key to judging any bike and knowing its intended purpose. There is no single best frame; there is only the best frame for the kind of riding you want to do.
Finding Your Spectrum Position
Comfort-Oriented Design: This is the armchair of the bike world. These frames use slack geometry (especially a slack head tube angle), a high stack, and a shorter reach. This creates a relaxed, upright riding position that takes pressure off your back and hands. The wheelbase is typically longer for maximum stability. Paired with a compliant material like steel or specially designed carbon layup, the result is a bike that smooths out road buzz and is comfortable for hours. Think cruisers, hybrid bikes, and endurance road bikes.
Performance-Oriented Design: This is the Formula 1 car of cycling. These frames use steep geometry, a low stack, and a long reach to put the rider in a low, wind-cutting, and powerful position. The wheelbase is short for razor-sharp, agile handling. The frame is built with stiff materials like aluminum or high-grade carbon fiber to ensure every watt of power goes directly to the wheels with minimal flex. This design puts speed and efficiency above all else.
The All-Rounder: Many modern bikes, like endurance road and gravel bikes, aim for the sweet spot in the middle. They blend performance materials with slightly more relaxed geometry than a pure race bike. This creates a machine that is fast and efficient but won't leave you feeling beaten up after a long day in the saddle, making it a perfect compromise for most riders.
The E-Bike Difference

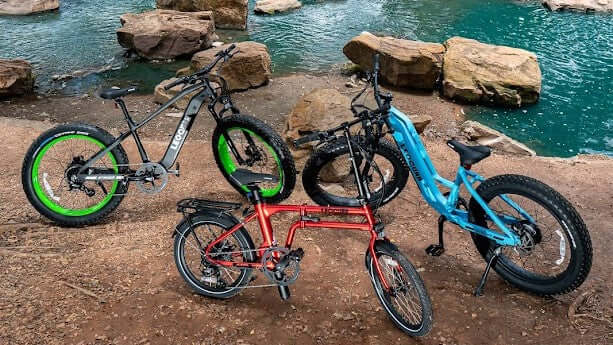

An electric bike frame is not simply a standard frame with a motor and battery bolted on. The added weight and forces require a purpose-built design. The frame of a bike designed for electric assist must be engineered from the ground up to handle these unique demands safely and effectively.
Managing Weight and Torque
The motor and battery can easily add 20-30 lbs (9-14 kg) to a bike's weight. This extra mass, combined with the torque generated by the motor, places huge stress on the frame. To cope, electric bike frames are significantly reinforced, particularly around the down tube (which often houses the battery) and the bottom bracket area (where the motor is mounted). Tube walls are thicker, and junctions are strengthened to prevent flexing and ensure long-term durability.
Battery integration is another key design factor. External batteries are easy to remove for charging but can disrupt the bike's balance. Integrated batteries, which fit inside the down tube, offer a cleaner look and a more balanced feel but require a much larger and more complex down tube design to maintain structural integrity.
E-Bike Geometry Adjustments
The geometry of an electric bike frame is also tailored to its function. Because electric bikes carry more weight and often travel at higher average speeds, stability is a top priority. Designers typically use a longer wheelbase and a slacker head tube angle than on a comparable non-electric bike. This makes the bike more predictable and easier to control, especially when cornering or descending with the extra momentum. The goal is to create a ride that feels secure and confidence-inspiring, allowing the rider to make the most of the electric assist.
Choosing Your Perfect Frame
We have seen that the frame of a bike is a complex system where every detail matters. Geometry dictates the bike's handling and fit, defining its core personality. The frame material fine-tunes that personality, influencing its weight, comfort, and price.
From the aggressive posture of a carbon race bike to the stable, reinforced chassis of an electric bike, the frame is the foundation of your experience. By understanding these core principles, you are now equipped to look past the paint and components. You can analyze a geometry chart, weigh the pros and cons of different materials, and understand the trade-offs between comfort and performance.
The final step is to think about your own priorities. What kind of riding excites you? What is your budget? Answering these questions will guide you to the perfect frame—the one that feels less like a machine and more like an extension of yourself.
FAQ
Q: What is the most important factor when choosing a bike frame?
A: The most important factor is matching the frame's geometry and material to your riding style and comfort preferences. Consider whether you prioritize speed and performance or comfort and stability.
Q: How do I know what frame size I need?
A: Frame size is traditionally measured by the seat tube length, but stack and reach measurements are more accurate for proper fit. It's best to test ride different sizes or consult with a bike shop professional.
Q: Are carbon fiber frames worth the extra cost?
A: Carbon fiber frames offer the best weight-to-strength ratio and can be engineered for specific ride characteristics. They're worth it if you prioritize performance and have the budget, but aluminum frames offer excellent value for most riders.
Q: What makes electric bike frames different from regular bike frames?
A: Electric bike frames are reinforced to handle the extra weight and torque from the motor and battery. They typically have thicker tube walls, strengthened junctions, and geometry adjusted for stability at higher speeds.
Q: How long should a bike frame last?
A: A quality bike frame can last decades with proper care. Steel and titanium frames can last a lifetime, while aluminum frames typically last 10-20 years, and carbon fiber frames can last 15-25 years depending on use and care.
