Fat Wheel Bikes vs Standard: What Fat Bike Wheels Do Differently

When you first see a fat wheel bike, the wheels grab your attention. They look huge and almost funny compared to a regular bicycle. The first question is: what do they actually do? The answer comes from two main differences: huge width (usually 3.8 to over 5 inches) and the ability to use very low air pressure (often 5-15 PSI). This is very different from a regular mountain bike tire at 25-40 PSI or a road bike tire at 80-100 PSI.

This design gives amazing floating power on soft surfaces like snow and sand, plus incredible grip on almost anything. These bikes go where others simply can't. Of course, this comes with trade-offs like more weight and harder pedaling on hard, smooth surfaces. This article will explore the unique parts, science, and real-world performance of fat bike wheels, helping you understand exactly what they do differently and if a fat wheel bike is right for your adventures.

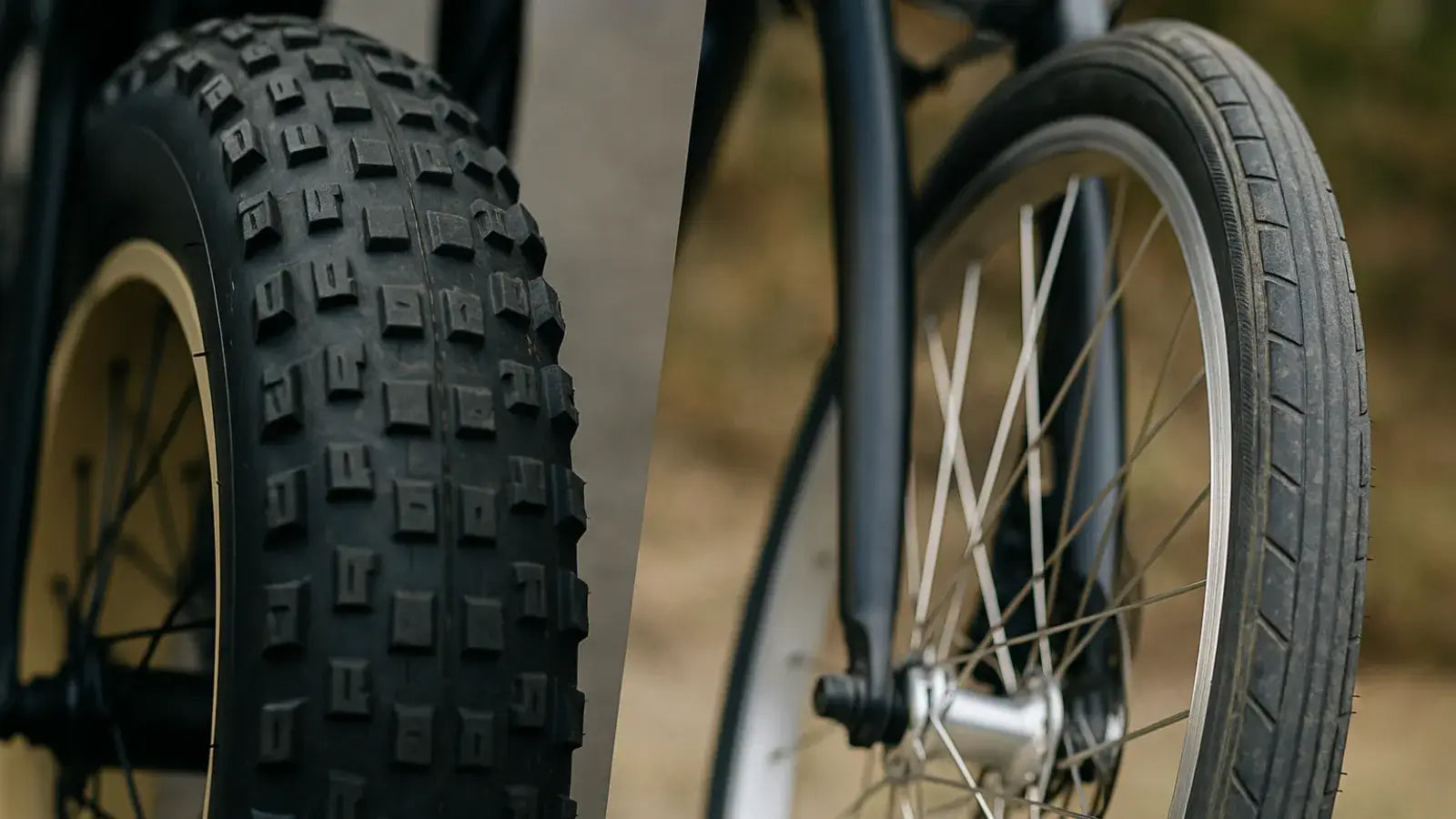

Fat Bike Wheel Anatomy vs Standard Wheels: What Sets Them Apart

To understand a fat bike, we need to look past the obvious and see the wheel as a complete system. It's much more than just a wide tire put on a bike. Each part is specially made to work together to handle the unique forces and deliver the special fat bike ride.

The Tire

This is what you notice first and the star of the show. Fat bike tires are known for their massive size. Widths usually start at 3.8 inches and can go over 5 inches for maximum floating. For comparison, a regular mountain bike tire is usually between 2.1 and 2.6 inches, while a road bike tire is a skinny 25 to 32 millimeters. This huge size holds the large amount of air that creates the bike's unique features.

The Rim

You can't put a 4-inch tire on a regular rim. Fat bike rims are the wide, strong base of the wheel, with inside widths from 65mm to over 100mm. This width is important for giving the tire the right shape and preventing it from folding or moving under pressure at low air levels. To fight the weight of such a large rim, companies often use a single-wall design and add large cutouts between the spoke holes, which also looks very cool when a colored rim strip is used.

The Hub

To fit such a wide tire and rim, the frame and fork of the bike must also be wider. This means wider hubs are needed. Regular mountain bike rear hubs are usually 142mm or 148mm wide. Fat bike hubs, however, are much wider, with 177mm and 197mm being common rear sizes. This extra width is needed to provide room for the tire while keeping a working chainline, making sure the chain can shift across all the gears without hitting the tire.

The Spokes

The complete wheel system—tire, tube, and rim—is much heavier than a regular wheel. This creates a lot of spinning weight. Fat bike wheels are built with strength in mind, often using 32 strong spokes in a 3-cross pattern to handle the force generated while pushing through tough terrain.

How Fat Bike Wheels Change the Ride: Physics Behind the Grip

The magic of a fat wheel bike isn't just in its size; it's in the science of how that size works with the ground. By controlling the relationship between tire volume, air pressure, and contact area, fat bikes completely change the rules of where and how you can ride.

Flotation: Riding On Top

The most important idea to understand is flotation. Think of the difference between walking in deep snow with regular boots versus wearing snowshoes. Your boots sink because your whole body weight is focused on a small area. Snowshoes spread that same weight over a much larger surface area, reducing the pressure per square inch and letting you float on top of the snow.

A fat bike wheel works on the exact same idea. At low pressures, the wide tire flattens out where it meets the ground, creating a huge contact area. This spreads the combined weight of the rider and bike over a large area, preventing it from sinking into soft surfaces like snow, sand, or deep mud. It's this idea that lets riders glide over terrain that would instantly trap a regular bike. As experts have noted, understanding pressure and contact area is the key to learning how fat bike tires maximize flotation.

Unbelievable Traction

The second major benefit of the low-pressure, high-volume system is amazing grip. A regular, high-pressure tire tends to bounce off obstacles like rocks and roots. A fat bike tire, however, is soft and bendable. Instead of bouncing off, it bends and wraps around the shape of the obstacle. This means more of the tire's tread is touching the ground at any given moment, creating a strong grip on surfaces where other bikes would spin out. Climbing a loose, rocky hill or riding a trail covered in wet roots becomes a show of grip, as the tire shapes to every bump.

Built-in Suspension

The massive amount of air in a fat bike tire acts as a natural shock absorber. While it won't replace a proper suspension fork for big hits, it does an incredible job of soaking up small bumps, trail vibration, and shaking. This cushioning effect provides a surprisingly smooth and comfortable ride, even on a fully rigid frame. It reduces rider tiredness on long, bumpy rides and adds a layer of forgiveness that makes the bike feel incredibly stable and planted.

Fat Tires vs Standard: The Key Trade-Offs You Should Know

No single bike design is perfect for every situation. The very features that make fat bike wheels amazing on loose terrain create problems on firm ground. Understanding these trade-offs is important for deciding if a fat bike fits your riding style. They are a specialized tool, and like any tool, they excel at some jobs and are less efficient at others.

The large, bendable contact area that provides so much grip and flotation also creates significant friction, or rolling resistance, on hard surfaces like pavement or smooth, packed dirt. You can hear and feel this drag. On the road, a fat bike is clearly slower and requires more pedaling effort to maintain speed compared to a mountain bike, and especially a gravel or road bike. It's simply not a machine built for speed on smooth terrain.

Fat bike wheels are heavy. The large tires, wide rims, and strong hubs add up to a lot of spinning weight. This weight makes the bike slower to speed up and harder to spin up to speed. It also affects the bike's agility. A fat bike feels planted and stable, but it doesn't have the quick, easy-to-move character of a lighter trail bike. Quick changes in direction and lifting the bike over obstacles require more body movement and effort.

On hardpack trails, especially when cornering at speed, the low-pressure tires can sometimes feel unclear or squirmy. Because the tire sidewall is bending, the steering response isn't as sharp or direct as it is with a narrower, higher-pressure tire. This isn't a problem on the soft terrain the bike is designed for, but it's a noticeable trait on fast, flowing singletrack where precision is key.

Performance at a Glance

Fat Wheel Bike Performance on Sand, Snow, and Pavement

Brochures will tell you fat wheel bikes are for snow and sand. That's true, but it barely scratches the surface. Here's what it's really like to ride these bikes across different types of terrain, based on our real-world experience.

Deep Snow

This is the fat bike's original purpose. In fresh powder, the experience is magical. You feel like you're floating, pedaling across a landscape that is completely impossible to reach with other bikes. Breaking a new trail is a serious workout, but riding on a packed snow trail is fast, flowing, and pure fun. Tire pressure is everything here. We often drop our pressure to as low as 4-5 PSI in soft conditions to maximize the tire's footprint and stay on top of the snow.

Sand

Riding on a beach is another classic fat bike use. On the firm, wet sand near the waterline, a fat bike feels like a race car—it's smooth, fast, and you can hold incredible momentum. Going into the deep, dry sand is a different challenge. Here, momentum is king. You need to keep pedaling and maintain your speed, as the sand will try to grab your wheels the moment you slow down. It's a unique challenge that fat bikes make possible.

Muddy & Rooty Trails

Many riders are surprised by how capable a fat bike is on a regular trail, especially in poor conditions. After a rain, when trails are slick with mud and roots, the fat bike's immense grip provides a huge confidence boost. It claws its way up slippery climbs and holds a line over wet roots that would send a regular tire sideways. The trade-off is that the wide tires can sometimes be pushed by off-camber trail sections or get grabbed by deep ruts. But for raw, all-conditions capability, they excel at carrying you over all types of terrain.

Pavement & Commuting

Riding a fat bike on pavement is a unique experience. It's not fast, and the hum of the large tires on the asphalt is a constant reminder of the rolling resistance. But it's also surprisingly fun. We call it the monster truck feeling. You sit high, roll over potholes and curbs with ease, and feel completely unshakable. For some, a fat bike makes an excellent all-weather urban assault vehicle, providing ultimate stability and traction in rain or even light snow.

Are Fat Wheel Bikes Worth It? The Final Verdict

So, after exploring what makes fat bike wheels different, the final question remains: is one the right tool for your job? The choice depends entirely on where you ride, what you value in a ride, and what you want your bike to do. There is no single best bike, only the best bike for a specific purpose.

A fat wheel bike is likely an excellent choice for you if:

• You live in an area with significant snowfall and want to ride through the winter.
• You have regular access to sandy beaches, dunes, or desert terrain.
• You prioritize ultimate traction and stability on loose, technical, or unpredictable trails over outright speed.
• You are looking for a highly capable plus-one bike to add to your collection for year-round adventures.
• You value a comfortable, forgiving ride and aren't concerned with setting speed records on your local loops.

You might be happier with a standard bike (like a MTB or Gravel Bike) if:

• The vast majority of your riding is on pavement, hardpacked dirt, or well-maintained trails.
• You prioritize speed, low weight, and agile, responsive handling above all else.
• You are looking for one do-it-all bike, but snow and sand are not part of your typical riding plans.
• You participate in races or enjoy fast-paced group rides where efficiency is critical.

Ultimately, fat bike wheels are not a gimmick. They are a brilliant piece of engineering that solved a specific problem, opening up new seasons and entire landscapes to cycling. They perform their job differently from standard wheels because their job is different. And for the right conditions, they do that job better than anything else.

Frequently Asked Questions

1. Q: How much air pressure should I use in fat bike tires?
A: Fat bike tires typically run between 5-15 PSI, much lower than regular bikes. For snow and sand, you might go as low as 4-5 PSI. For harder surfaces, 10-15 PSI works better. Always start higher and let air out until you find what works best for your weight and the terrain.

2. Q: Are fat bikes harder to pedal than regular mountain bikes?
A: Yes, fat bikes require more effort to pedal, especially on pavement and hard surfaces. The large, soft tires create more rolling resistance. However, on snow, sand, and loose terrain where they're designed to excel, they can actually be easier to ride than regular bikes that would get stuck.

3. Q: Can I use a fat bike as my only bike for all types of riding?
A: While fat bikes can handle many different terrains, they're not ideal as an only bike if you do a lot of road riding or racing. They're slower and heavier on pavement. If most of your riding is on trails, snow, or mixed terrain, a fat bike could work as your main bike.

4. Q: How much do fat bike wheels typically weigh compared to regular mountain bike wheels?
A: Fat bike wheels are significantly heavier, often weighing 2-4 pounds more per wheel than standard mountain bike wheels. This extra weight is in the tires, rims, and hubs. The total weight difference for a complete wheelset can be 4-8 pounds more than regular wheels.

5. Q: Do I need special tools or equipment to maintain fat bike wheels?
A: Fat bike wheels use standard bike maintenance tools for most tasks. However, you may need wider tire levers for the large tires, and a pump with a large volume chamber helps when inflating such big tires. The low pressure means you'll need a good low-pressure gauge to get accurate readings.
