Electric Bike Tire Replacement: Inner Tube Guide

Electric Bike Tires and Inner Tubes: What You Should Know Before Replacing

Maybe you got a flat tire, or your tread looks worn out. You might just want to make your ride better. Either way, you're in the right place. Picking a new tire for your electric bike can seem scary. But this guide will make it simple. An electric bike tire isn't like a regular bike tire at all.

It's made to handle special challenges that e-bikes create. The battery and motor add extra weight. E-bikes also go faster than regular bikes. The motor gives instant power when you pedal, which puts more stress on your tires. These things affect your safety and how far your battery will last. This guide will teach you everything step by step. You'll learn to pick and install the perfect electric bike tire and inner tube with confidence.

Why E-Bikes Need Specific Tires

You need to understand why e-bike tires are different before you buy new ones. Sure, you can put some regular bike tires on an e-bike. But using tires made for e-bikes gives you better performance, longer life, and most importantly, better safety.

The main differences come from handling the extra forces that e-bikes create. An electric bike can weigh 50-70 pounds or more, which is much heavier than a regular bike. This extra weight, plus higher speeds, needs a tire with stronger construction.

E-bike specific tires have stronger frames and reinforced sides to prevent bending or breaking under weight. They give you stability and predictable handling, especially when turning corners.

Handling Higher Loads and Speeds

The extra mass, combined with higher average speeds, requires a tire with a more robust construction. E-bike specific tires feature stronger casings and reinforced sidewalls to prevent flexing or failure under load. This provides stability and predictable handling, especially when cornering.

The ECE-R75 Certification

In Europe, tires for faster e-bikes must have an ECE-R75 certification. While not required everywhere, this "E-rating" has become a global standard for quality and safety. It means the tire has been tested and approved for higher speeds and loads.

• E25: Certified for e-bikes that provide assistance up to 25 km/h (15.5 mph).
• E50: Certified for S-Pedelecs that can reach speeds up to 50 km/h (31 mph).

Choosing an E-rated tire, even for a standard e-bike, gives you peace of mind that it's built to a higher standard.

Grip, Braking, and Rolling Resistance

The power from an electric motor needs a tire that provides great grip to prevent the rear wheel from spinning during acceleration. This same grip is important for braking, as the bike's extra weight requires shorter, more controlled stopping distances. However, there's a trade-off here.

Stickier compounds often create more rolling resistance, which can slightly reduce battery range. Companies work to find the perfect balance, and as data from specialized testing sites like Bicycle Rolling Resistance shows, e-bike specific tires are made to optimize this balance for powered performance.

Enhanced Puncture Protection

Getting a flat tire on any bike is annoying, but on an e-bike it can be a major problem. The process of removing the wheel is harder because of wiring and heavier parts. Because of this, most quality electric bike tires are built with advanced puncture protection.

This often includes a built-in belt of special material or a thicker layer of rubber under the tread to stop glass, thorns, and other road debris from reaching the inner tube.

Decoding Your Current Tire

Before you can buy a new tire, you need to know what size you have. Luckily, all the information you need is printed right on the side of your existing tire. Take a moment to find this series of numbers - it's your key to a perfect fit.

Finding the Numbers

You will typically see two numbers that represent the tire's diameter and width. The format can vary, but it will look something like 26 x 4.0 or 700c x 45mm. The first number is the outer diameter of the tire, and the second is the width.

For most replacements, simply matching these numbers is enough.

Understanding Sizing Standards

To be absolutely certain, it's helpful to understand the different sizing standards. While you might see inches (e.g., 26 x 4.0) or a French system (e.g., 700x45c), the most accurate and universal standard is ETRTO (European Tire and Rim Technical Organisation). The ETRTO size is usually shown in millimeters (e.g., 47-622), where the first number is the tire width and the second is the inner diameter of the tire—the part that sits on the rim.

Using the ETRTO number guarantees a perfect fit on your rim.

Here is a quick guide to how these standards relate:

Choosing Your New Tire

Replacing a worn tire is a perfect chance to upgrade your ride. Instead of just getting the same tire, think about one that better suits how you ride most often. The right tread pattern and tire type can change your e-bike's performance completely.

Ask yourself: "What kind of riding do I do most often?"

Match Tire to Terrain

The tread pattern is the most obvious difference between tire types. A smoother tire rolls faster on pavement, while a knobby tire provides grip on loose surfaces. Choosing the right one is about matching the tire's strengths to the terrain you ride.

To Go Tubeless or Not?

Some e-bike riders are switching to tubeless systems. A tubeless setup gets rid of the inner tube, with the tire sealing directly against the rim. A liquid sealant is added inside the tire to automatically plug small punctures.

• Pros: Fewer "pinch flats" (where the tube gets pinched against the rim), the ability to run lower tire pressures for better traction, and self-sealing of small punctures.
• Cons: Setup is more complex and messy, requires tubeless-compatible rims and tires, and the sealant needs to be topped up every few months.

For most riders, a traditional tire and inner tube setup is simpler and more than adequate.

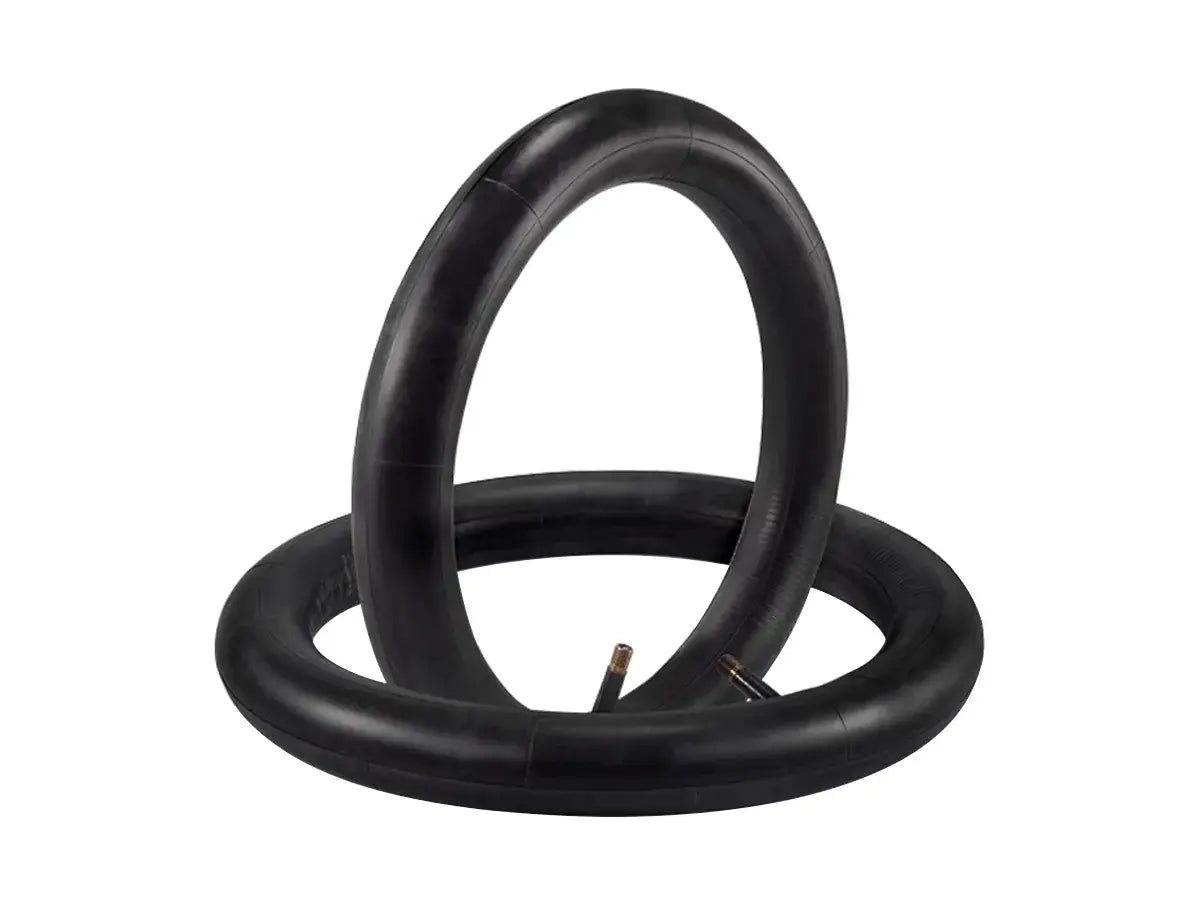

Selecting the Right Inner Tube

The inner tube is the unsung hero of your wheel assembly. It's a simple part, but choosing the wrong one can lead to immediate problems. Pairing a high-quality electric bike tire with a cheap or wrong inner tube is a recipe for a flat.

Size Compatibility is Non-Negotiable

The inner tube must be the correct size for your tire. The tube's box will list the tire sizes it works with. This is often a range - for example, a tube might be labeled to fit tires from 26 x 1.9" to 2.3".

Make sure your tire's width falls within this range. Using a tube that is too small will stretch it thin and make it prone to punctures. A tube that is too large will be hard to install without creasing, which can also lead to failure.

Schrader vs. Presta

This is a critical detail where beginners often make a mistake. There are two common valve types, and your wheel's rim is drilled for one or the other.

• Schrader: This is the same type of valve found on a car tire. It's wider and has a spring-loaded pin in the center. It's common on cruisers, mountain bikes, and fat bikes.
• Presta: This valve is thinner and has a small locknut at its tip that you must unscrew before you can inflate it. It is typically found on road, gravel, and some hybrid bikes.

Look at your current valve to see which one you have. You must buy a new tube with the same valve type.

Are Thicker Tubes Worth It?

For e-bikes, investing in a slightly stronger inner tube is a smart choice. Many companies offer heavy-duty or "thorn-resistant" tubes that are made with thicker rubber. Some even come pre-filled with a liquid sealant that can plug small punctures automatically.

• Pros: Much more resistant to punctures from small debris.
• Cons: They are heavier, which can slightly impact battery range, and they cost more than standard tubes.

For a commuter or anyone who wants maximum peace of mind, the small extra cost and weight are often well worth it.

How to Replace Your Tire

With your new electric bike tire and inner tube ready, it's time for installation. While it may seem scary, especially with a motor involved, it's a simple process if you work step by step.

Gather Your Tools

Having the right tools makes the job much easier and safer for your bike.

• A new electric bike tire and matching inner tube
• Tire levers (use plastic ones to avoid scratching your rims)
• A bike pump with the correct head for your valve type (Schrader or Presta)
• Wrenches that fit your wheel's axle nuts (if you don't have a quick-release skewer)
• A clean rag

The Replacement Process

Prepare the Bike: Turn the e-bike's power completely off. For a rear wheel, shift the chain into the highest gear (the smallest cog). This moves the derailleur out of the way.

Carefully flip the bike upside down, resting it on the handlebars and seat, or use a bike repair stand if you have one.

Remove the Wheel: This is the most important step for an e-bike. If you have a hub motor, you must disconnect the motor cable. Look for a waterproof connector along the chainstay.

It often has alignment arrows. Pull it straight apart without twisting. Do not force it.

Once disconnected, use your wrenches to loosen the axle nuts and remove the wheel.

Deflate and Unseat the Tire: Let all the air out of the old tube. Press the pin inside a Schrader valve or unscrew and tap a Presta valve. Once flat, push the tire bead toward the center of the rim all the way around.

Now, use your tire levers to hook under one side of the tire bead and pry it up and over the rim wall.

Remove Old Tube and Tire: Pull the old inner tube out. Then, pull the entire tire off the rim.

CRITICAL STEP: Inspect Everything: Take your rag and carefully wipe the inside of the tire. Then, run your fingers carefully along the inside to feel for any sharp objects like glass, metal, or thorns that may have caused the flat.

Also, inspect the rim strip—the rubber or fabric band that covers the spoke holes. Make sure it's in good condition and centered.

Install the New Tire and Tube: Mount one bead of the new tire onto the rim. Put a small amount of air into the new inner tube, just enough to give it shape.

Place the tube inside the tire, starting by pushing the valve through the hole in the rim.

Seat the New Tire: Starting opposite the valve, use your thumbs to work the second bead of the tire up and onto the rim. Work your way around both sides.

For the last, tight section, avoid using tire levers if possible, as this can pinch and puncture the new tube.

Inflate and Check: Inflate the tire to the recommended pressure (PSI) listed on the tire's sidewall. As you inflate, watch the bead line on the tire to ensure it's seating evenly all the way around the rim.

Reinstall the Wheel: Carefully place the wheel back in the dropouts. Reconnect the motor cable, making sure the alignment arrows line up perfectly.

Tighten the axle nuts securely and check your brakes before riding.

For a great visual walkthrough, we recommend watching a detailed guide from industry experts at Park Tool.

5 Common Mistakes to Avoid

Learning from an expert means learning what not to do. Avoiding these common mistakes will save you time, money, and the frustration of a failed repair. Pinching the New Tube: This is the most common rookie mistake. When using a tire lever to force the last bit of the tire onto the rim, it's easy to pinch the new inner tube between the lever and the rim, creating a hole.

The Fix: Use your hands and thumbs as much as possible. If you must use a lever, be extremely careful and check that the tube is not in the way. Forgetting to Inspect the Old Tire: You successfully change a flat, go for a ride, and get another flat a mile later. The cause is often the tiny piece of glass or thorn that you never removed from the inside of the tire.

The Fix: Always run a rag, then your fingers, carefully along the inside of the tire before installing a new tube. Ignoring the Rim Strip: The rim strip is a simple band that protects your inner tube from the sharp edges of the spoke holes inside the rim. If this strip is damaged, shifted, or broken, the tube will bulge into a spoke hole and pop.

The Fix: During every tire change, check that the rim strip is intact and properly centered. Buying the Wrong Valve Type: You do everything right, only to find the valve on your new tube doesn't fit through the hole in your rim. A Presta valve will be loose in a Schrader hole, and a Schrader valve won't fit in a Presta hole at all.

The Fix: Always double-check your current valve type before buying a new tube. Mishandling the Hub Motor Cable: The motor cable connector has delicate pins inside. Forcing it, twisting it, or yanking on the wire instead of the connector body can bend or break these pins, leading to a costly repair.

The Fix: Be patient. Look for alignment arrows on the connector and pull it straight apart.

Conclusion: Ride with Confidence

Your tires are the single point of contact between your e-bike and the ground. Choosing the right ones is fundamental to your safety, performance, and overall enjoyment of the ride. By understanding the unique demands of an e-bike, knowing how to find the correct size, and selecting a model that matches your terrain, you are investing in a better, more reliable experience.

Replacing a tire and tube is a skill every rider can learn. With this guide and a little practice, you'll be able to handle this essential maintenance task yourself. Now you can ride with the confidence that comes from knowing your e-bike is equipped with the perfect tires for your journey.

Frequently Asked Questions

Q: Can I use regular bicycle tires on my electric bike?
A: While you can technically fit some regular bike tires on an e-bike, it's not recommended. E-bikes are heavier and faster than regular bikes, so they need tires specifically designed to handle these extra forces. E-bike specific tires have stronger construction and better puncture protection for safer riding.

Q: How do I know what size tire I need for my e-bike?
A: Look at the sidewall of your current tire where you'll find numbers like 26 x 4.0 or 700c x 45mm. The first number is the diameter and the second is the width. For the most accurate fit, look for the ETRTO number (like 47-622) which guarantees compatibility with your rim.

Q: What's the difference between Schrader and Presta valves?
A: Schrader valves are wider and look like car tire valves with a spring-loaded pin in the center. Presta valves are thinner with a small locknut you must unscrew before inflating. Your rim is drilled for one specific type, so you must match your current valve when buying a new inner tube.

Q: Are thicker inner tubes worth the extra cost for e-bikes?
A: Yes, especially for commuters or riders who want maximum reliability. Heavy-duty tubes are more resistant to punctures from debris like glass or thorns. While they cost more and add slight weight, this trade-off is usually worth it to avoid the hassle of changing flats, especially with e-bike motors making wheel removal more complex.

Q: How often should I replace my electric bike tires?
A: Replace your tires when the tread is worn down, you notice frequent flats, or you see cracks in the sidewall. Generally, e-bike tires last 1,000-3,000 miles depending on riding conditions, tire quality, and maintenance. Check your tires regularly for wear patterns and replace them before they become unsafe.
