Electric Bike Motor Guide: From Motor to Complete Kit
The Heart of Your E-Bike
An electric bike motor powers your e-bike. It gives you the electrical boost that makes the whole ride special. This motor is what turns a hard hill climb into an easy ride. An electric bike motor kit is different - it's everything you need to change your regular bike into an e-bike. The kit has the motor plus all the other parts you need. You can transform the bike you already own and love.
This difference is important to understand. Whether you want a new e-bike or plan to convert your current bike, you need to know how these parts work. We'll explain these components clearly and help you pick the right option for your needs and budget.
The Engine of Your Ride
Electricity into Motion
An electric bike motor is actually quite simple. It takes power from a battery and uses magnetism to create spinning force called torque. This force goes to either the wheel or the bike's chain system to help you pedal or move the bike on its own.
Motor power is measured in watts (W). Most e-bikes sold in North America and Europe have motors between 250W and 750W. These limits exist because of local laws that let e-bikes use bike paths without special licenses. High-performance kits can go over 1000W, but you need to check your local rules first.
Two Design Philosophies
You'll see two main motor types when shopping for e-bikes and kits. Knowing the difference helps you make a smart choice.

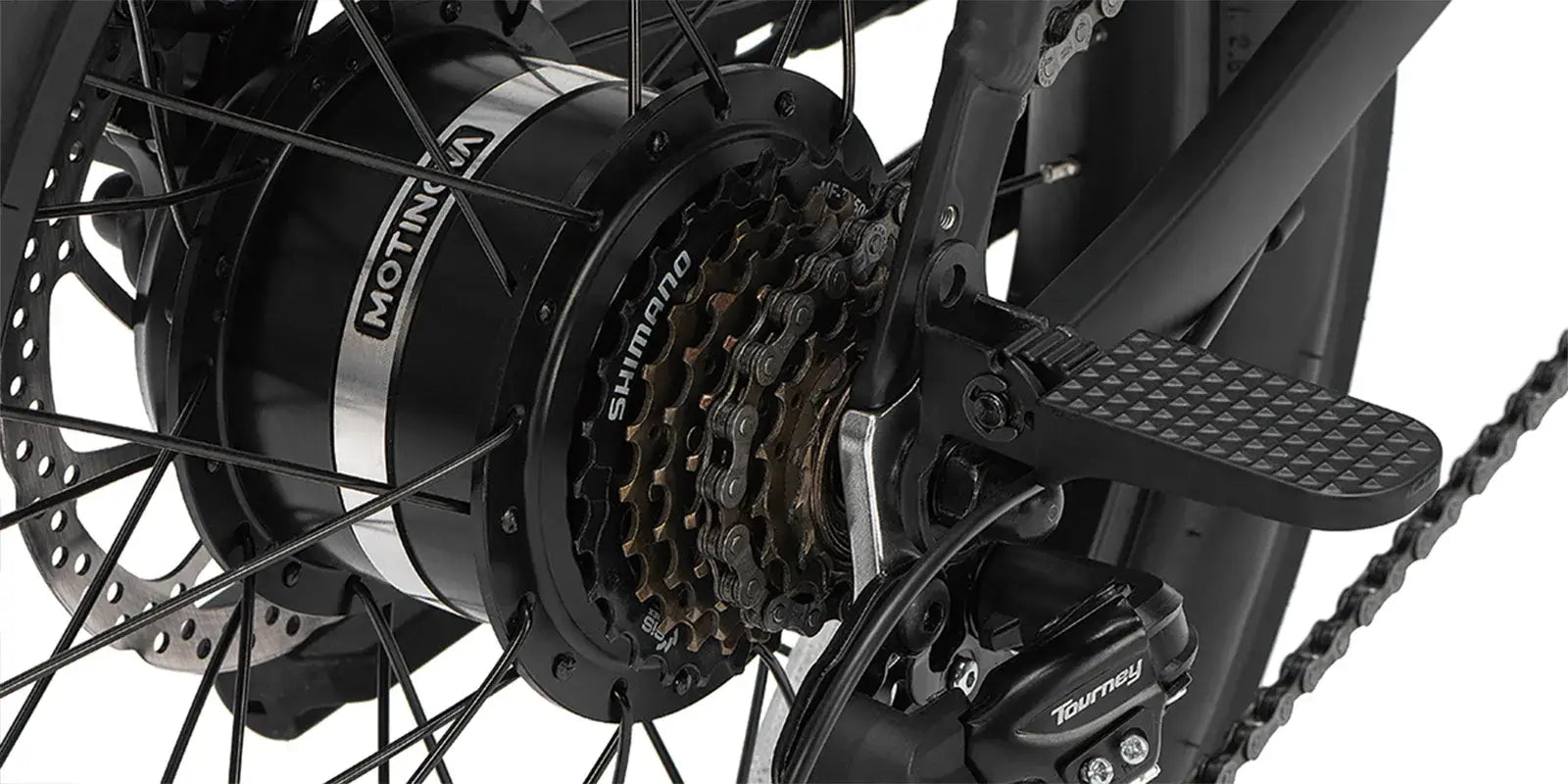

Hub-Drive Motor: This motor sits in the center of your front or rear wheel. It spins the wheel directly and is very common because it costs less and works well for most riders.
Mid-Drive Motor: This motor goes at the bottom bracket where your pedals connect to the frame. Instead of spinning a wheel, it powers your bike's chain and gears. This design feels more natural when you ride.
A Head-to-Head Comparison
Choosing between hub-drive and mid-drive motors is your most important decision. Each type works better for different kinds of riding.
| Feature | Hub-Drive Motor | Mid-Drive Motor |
|---|---|---|
| Location | In the center of the front or rear wheel. | At the bottom bracket, in the center of the frame. |
| Weight Distribution | Concentrates weight at the front or rear, affecting balance. | Central and low, providing an excellent center of gravity. |
| Ride Feel | Feels like being "pushed" (rear hub) or "pulled" (front hub). | Feels like an extension of your own power; natural and intuitive. |
| Efficiency & Hills | Less efficient on hills as it operates at a fixed gear ratio. | Highly efficient on hills by leveraging the bike's existing gears. |
| Maintenance | Simpler system. Tire changes can be more complex. | More complex system integrated with the drivetrain. |
| Installation (Kits) | Generally simpler; similar to changing a wheel plus wiring. | More involved; requires specialized tools like a crank puller. |
| Cost | Typically lower cost for both complete bikes and kits. | Typically higher cost due to mechanical complexity. |
| Ideal Use Case | Commuting, cruising on flat or rolling terrain, budget-conscious builds. | Mountain biking, serious touring, performance road riding, hilly areas. |
The details matter more than the basic facts. A mid-drive motor feels natural because it adds power where your legs do - at the pedals. This lets you use your bike's gears to keep the motor working efficiently, which really helps on steep hills.
Hub motors work separately from your gears, so they can struggle on long, steep climbs. This is why serious mountain e-bikes almost always use mid-drive systems. The weight stays centered, which keeps your bike balanced for technical trail riding.
More Than Just a Motor
An electric bike motor kit includes everything needed to electrify your bike. You're buying a complete system, not just one part. Here's what comes in a quality kit:
The Motor
This is the main component - either a hub motor built into a wheel or a mid-drive unit for your frame.
The Battery
This stores your power and is measured in Amp-hours (Ah) and Volts (V). Higher Ah means longer rides, while higher voltage usually means more power.
The Controller
This small box sits between your battery and motor to control the electricity flow based on your throttle or sensor input.
Throttle & Sensors
Your kit includes either a throttle for power on demand or a pedal-assist sensor that turns on when you pedal. Advanced sensors measure how hard you pedal and give matching help.
Display
This shows your battery level and assist settings at minimum. Better displays show speed, distance, power output, and other useful information.
Wiring & Mounts
All the cables, connectors, and hardware needed to attach everything to your bike and connect the system together.
The DIY Decision Framework
Picking the right kit means more than just comparing motor types. You need to match the technology to your specific situation. Ask yourself these key questions to make the perfect choice.
What Is Your Bike?
Look at your bike before looking at kits. The parts must work together.
Frame Material: Most kits work with aluminum or steel frames. Installing a powerful motor on carbon fiber can be risky and might void your warranty.
Bottom Bracket: For mid-drive kits, you must know your bottom bracket size (like 68mm or 73mm) and type to make sure the motor fits.
Dropout Spacing: For hub motors, measure the distance between your frame's rear dropouts to match the motor hub width.
Brakes: Make sure the kit works with your brake type, whether rim brakes or disc brakes.
What Is Your Riding Style?
Be honest about how you'll use the bike.
The Commuter: If you want reliable transportation for town riding on mostly flat roads, a geared hub motor is an excellent, affordable choice.
The Trail Rider: For singletrack and steep climbs, you need the better balance, efficiency, and natural feel of a mid-drive motor.
The Casual Cruiser: For easy rides on bike paths or flat areas, a simple hub motor kit gives you all the help you need.
What Is Your Budget?
Your money and mechanical skills are real factors in your decision. Hub motor kits cost less and install easier. If you can change a bike tire, you can probably install a hub motor.
Mid-drive kits cost more and need higher mechanical skills. You'll need special tools like a crank puller and bottom bracket tool. A mid-drive installation can take a beginner a full afternoon, while a front hub motor takes under two hours.
What Do Specs Mean?
When comparing kits, you'll see lots of numbers. The two most important are Watts and Newton-meters.
Watts (W): This measures the motor's sustained power output, like horsepower. A 750W motor is more powerful than a 250W motor, but that's not the whole story.
Torque (Nm): This measures rotational force or "grunt." It gets you moving from a stop and powers you up steep hills. For hilly areas, torque rating often matters more than peak wattage.
A mid-drive motor with high torque can feel much more powerful on climbs than a hub motor with higher wattage. The industry keeps improving these numbers, creating lighter, more powerful, and more efficient motors that blend into bike designs.
A Real-World Conversion
Theory differs from practice. Let's walk through what a typical DIY conversion actually feels like, based on real mid-drive kit installation experience.
Our Mid-Drive Journey
The process started long before using any tools. We spent time watching three different installation videos for our specific kit. This helped us expect tricky steps and make a complete tool list.
Our first rule became clear: get all the right tools before starting. The first real challenge was removing the old bottom bracket, which was stuck in the frame. This led to the classic "oh, I need that tool" moment - a trip to the bike shop for a longer wrench to get more leverage. This happens often, so measure twice and order once for tools, not just parts.
Once the motor was mounted, cable management became the next challenge. Simply letting wires hang looks bad and can be unsafe. We spent nearly an hour carefully routing cables along the frame, using zip ties and wraps to create a clean, professional look.
Don't underestimate cable management - it makes a huge difference. Finally came the moment of truth: the first test ride. The feeling of that first assisted pedal stroke is genuinely magical. The bike feels alive.
The final step was adjusting the controller's settings through the display, tuning the pedal assist sensitivity to create responsive but smooth power delivery.
The Power is in Your Hands
Choosing an electric bike motor or conversion kit means matching technology to your personal needs. There's no single "best" option, only what's best for you. Your decision depends on your existing bike, riding style, budget, and mechanical confidence.
Hub motors offer incredible value and simplicity, making them perfect for commuters and casual riders. Mid-drive motors cost more but provide unmatched performance, efficiency, and natural ride feel that serious cyclists and trail riders need.
By understanding these core differences and asking the right questions, you become an informed enthusiast instead of just a consumer. The power to choose, build, and ride is literally in your hands.
FAQ
Q: Can I install an electric bike motor kit on any bicycle?
A: Not every bike works with every kit. You need to check frame material, bottom bracket type for mid-drive motors, dropout spacing for hub motors, and brake compatibility. Carbon fiber frames may not be suitable for powerful motors.
Q: How long does it take to install an electric bike motor kit?
A: Installation time varies by kit type and your mechanical skills. A front hub motor kit typically takes under 2 hours, while a mid-drive kit can take a full afternoon for beginners. Having the right tools ready beforehand saves significant time.
Q: What's the difference between watts and torque in electric bike motors?
A: Watts measure sustained power output like horsepower, while torque (measured in Newton-meters) is the rotational force that gets you moving and helps climb hills. For hilly terrain, torque rating is often more important than peak wattage.
Q: Which motor type is better for commuting - hub-drive or mid-drive?
A: Hub-drive motors are typically better for commuting because they're more affordable, require less maintenance, and work well on flat to rolling terrain. They're also simpler to install and repair.
Q: Do I need special tools to install an electric bike motor kit?
A: Hub motor kits usually only need basic bike tools. Mid-drive kits require specialized tools like crank pullers and bottom bracket tools. Check your kit's requirements and have all tools ready before starting installation.
