Electric Bicycle Throttle Control Light Guide
A Confusing Warning Light
If you're here because you're searching for what an "electronic throttle control light" means on your electric bicycle, you're not alone. It's confusing. Your e-bike isn't working right, you see a warning light or error code, and your search leads you to a term that sounds right but feels wrong. Let's clear this up now: the Electronic Throttle Control (ETC) light is a warning for cars and trucks with gas engines. It does not exist on electric bicycles.
However, your main concern is valid. A problem with your throttle or power system is common for e-bike riders. The good news is that these problems are often easy to find and fix. This guide will help you solve the problem. We will first explain what the ETC system is in a car to clear up any confusion. Then, we will explain how your electric bicycle throttle actually works, give you steps to find the real problem, and show you how to get back on the road.
Car ETC Systems Explained
To understand why the ETC light isn't on your e-bike, it helps to know what it does in a car. Modern cars use a "drive-by-wire" system. When you press the gas pedal, you aren't pulling a cable connected to the engine anymore. Instead, a sensor measures how far you've pressed the pedal and sends that information to the car's computer, which then opens the engine's throttle.
The ETC light warns the driver of a fault in the throttle control system. This system has several key parts:
- Accelerator Pedal Position (APP) Sensor: This sensor is attached to your gas pedal and tells the main computer how much you want to speed up.
- Engine Control Unit (ECU): This is the car's brain. It takes the signal from the APP sensor and decides how much to open the throttle.
- Electronic Throttle Body: This is a motorized valve on the engine that controls air flow. The ECU sends a command here to adjust the engine's power.
An electric bicycle is much simpler and different, using a direct command system instead of this complex loop.
How E-Bike Throttles Work
The power system on your electric bicycle is simple and elegant. Unlike a car's drive-by-wire system, it's a direct chain of command from your hand to the motor. When you use the throttle, you're sending a simple voltage signal that tells the motor how much power to deliver.
First, there are two main types of throttles you'll find on an electric bicycle:

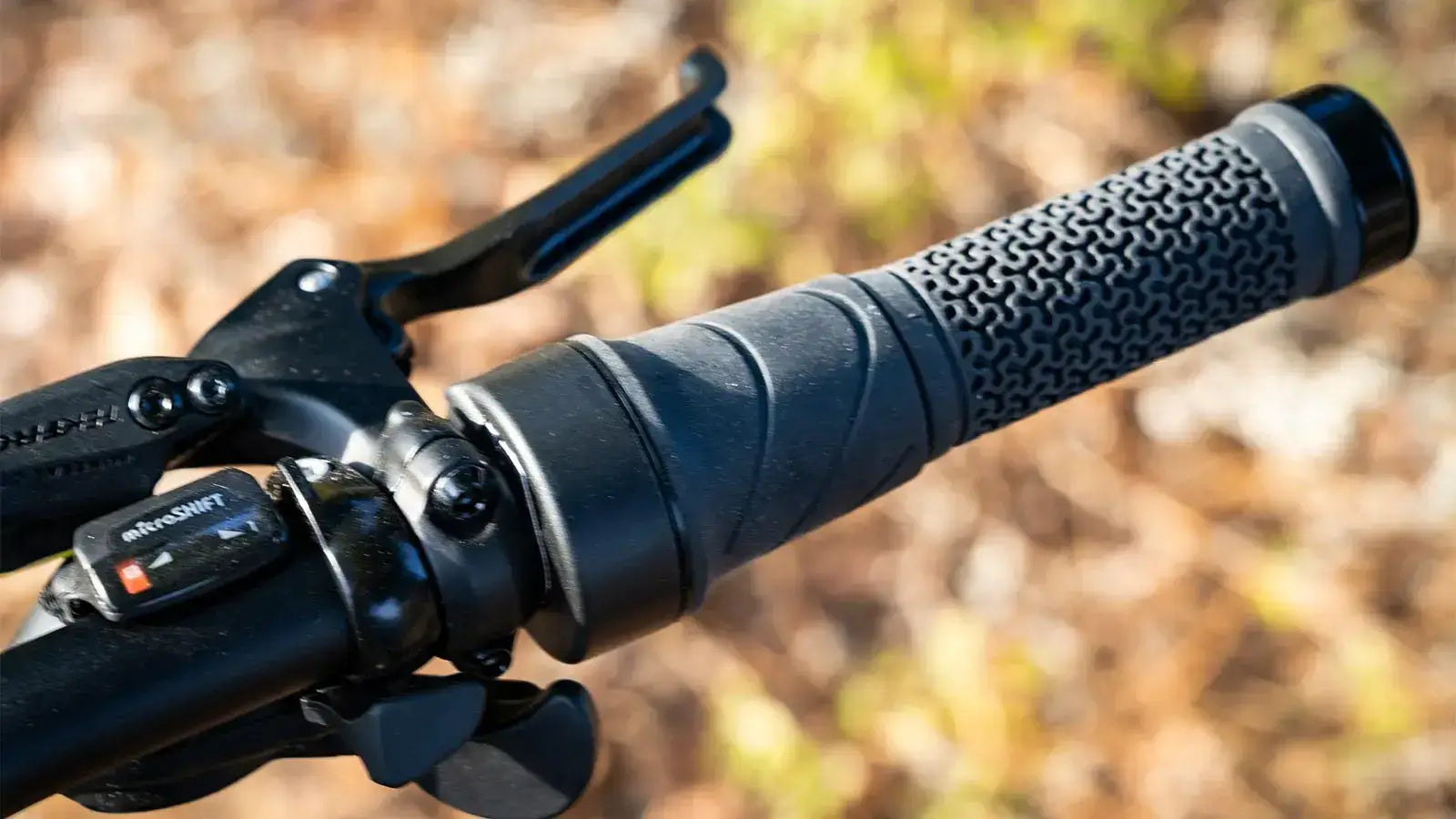

- Twist Throttles: These are built into the handlebar grip, like a motorcycle. You twist part of the grip toward you to speed up.
- Thumb Throttles: This is a small lever, usually near the handlebar grip, that you push with your thumb to engage the motor.
No matter the type, the technology is almost the same and involves three important parts. Understanding how an electric bike throttle works is key to finding any problems.
-
Throttle Sensor: Inside the throttle housing is a small magnetic sensor, usually a Hall effect sensor. When you twist the grip or push the lever, a magnet moves closer to or farther from this sensor. This movement changes the voltage of the signal the sensor sends out. A low voltage signal means "no power," and a higher voltage signal means "full power."
-
Controller: The controller is the brain of your e-bike. It's a small electronic box, usually inside the bike's frame or in a separate case. It gets the voltage signal from your throttle sensor. It also watches signals from the battery, pedal-assist sensor, and brake levers. Based on all this input, it calculates exactly how much electricity to send to the motor.
-
Motor: The motor, either in the hub of one of your wheels or built into the crankset (a mid-drive), is the muscle. It gets the electrical current from the controller and turns it into the spinning force that moves you forward.
This creates a clear sequence of events:
Rider Input (Twist/Push) → Throttle Sensor (Sends Voltage Signal) → Controller (Reads Signal) → Motor (Delivers Power) → Wheel Movement
When this system fails, the problem almost always lies in a break somewhere along this chain.
E-Bike Throttle Troubleshooting
Now for the practical part. When your throttle stops working, follow this process to find the problem. Before we touch any tools, the first thing we always check is the display and basic connections. This solves the problem more often than you'd think. We will move from the simplest checks to the more involved steps.
Step 1: The 60-Second Check
Start with a quick visual check of the entire system. This needs no tools and can often show the problem right away.
- Check the Display: Power on your electric bicycle. Does the display light up? If not, your problem is more basic, likely a dead or disconnected battery. If the display does light up, look for any error codes. These codes are specific to your bike's maker. Check your e-bike manual or the maker's website to understand what a specific code means. It might point you directly to the throttle or another part.
- Check the Throttle Housing: Look at the throttle unit itself. Is the plastic cracked? Is it loose on the handlebar? Damage from a fall or from leaning the bike against a wall can break internal wires or move the sensor out of place.
- Check Visible Wiring: Follow the wire coming out of your throttle. Look for any clear signs of damage—pinches, cuts, or scrapes. Pay close attention to areas where the wire bends sharply or might get stretched, such as around the headset where the handlebars turn.
Step 2: Basic System Resets
Electronic systems can sometimes get confused. A simple reset can often clear these temporary problems.
- Power Cycle: This is the classic "turn it off and on again" solution. Turn the e-bike's power completely off using the button on the display or battery. Wait at least 30 seconds to allow all the parts in the controller to fully discharge. Then, turn the power back on and test the throttle.
- Battery Check: A loose or low-charge battery can cause many power problems, including an unresponsive throttle. Remove the battery from the bike. Check the connection points for dirt or rust. Put the battery back in firmly, making sure it clicks and locks securely into place. Make sure it has enough charge.
Step 3: Deeper Connection Checks
If the basics didn't work, the next step is to check the key connection points in the wiring. Most e-bikes use waterproof connectors with arrows that show proper alignment.
- Find and Check Connectors: Follow the wire from your throttle to where it connects to the main wiring. This connector is often located near the front of the bike, bundled with other wires from the display and brake levers.
- Unplug and Replug: Carefully unplug this connector. Look at the pins inside. Are any of them bent or rusty? Blow out any dust or debris. Reconnect it firmly, making sure the arrows are aligned and it's fully seated. Do the same for any other major connectors you can reach between the controller and the motor.
Step 4: Finding the Fault
If the throttle is still not working, we need to determine if the throttle itself is the problem or if another part is preventing it from working. As many experienced riders in e-bike forums will tell you, brake sensors are a common problem.
- Test the Brake Cutoff Switches: Your brake levers have sensors that cut power to the motor whenever you pull them. This is an important safety feature. However, if one of these sensors is broken or stuck in the "on" position, it will permanently disable the motor, making it seem like your throttle is broken. To test this, find the wire coming from each brake lever and unplug its connector from the main wiring. Test the throttle after unplugging each one. If the throttle starts working after you unplug a specific brake lever, you've found your problem: a faulty brake sensor.
- Test the Pedal Assist System (PAS): If your e-bike has both a throttle and a pedal-assist system, test the PAS. Get on the bike and start pedaling. Does the motor turn on and provide help? If the pedal assist works perfectly but the throttle does nothing, this strongly points to a problem with the throttle unit itself or its specific wiring, since both systems use the same controller and motor.
Common Throttle Failure Causes
Based on your diagnosis, here are the most common failures and their solutions. We've organized this in a table to make it easy to connect symptoms to the right fix. For long-term reliability, properly maintaining e-bike electronics is important.
| Symptom / Likely Cause | Explanation | Solution |
|---|---|---|
| No Power At All | The problem is likely before the throttle. This could be a loose battery, a blown main fuse, or a major disconnection in the wiring. | Make sure the battery is fully seated and locked. Check the main fuse if you can reach it (check your manual). Look at all major wire connections from the battery to the controller. |
| Throttle is Unresponsive, but Display Works | This points to a failure in the throttle circuit. Common causes include a damaged wire, a faulty internal Hall sensor, or a brake cutoff switch that is stuck on. | Look at the throttle wire from the grip to the connector. Test the system by unplugging the brake lever sensors one at a time. If the problem continues, the throttle assembly itself likely needs to be replaced. |
| Intermittent or "Jerky" Power | This is often caused by a loose connection or a failing internal sensor. The vibration of riding causes the connection to make and break contact. | Carefully check that the throttle connector is secure. Gently wiggle the wire near the throttle housing to see if you can trigger the fault. If so, the wire is damaged internally. Replacement is often the most reliable solution. |
| Motor Runs Constantly (Uncontrolled Acceleration) | DANGEROUS. This is a rare but critical failure. It can be caused by a short circuit in the throttle wiring or a major failure within the controller that sends full power to the motor. | IMMEDIATELY POWER OFF THE BIKE at the battery. Do not try to ride it. This condition is unsafe and requires professional diagnosis and repair, likely involving the replacement of the controller or throttle. |
Throttle Preventive Maintenance
Prevention is better than repair. Taking a few simple, proactive steps can keep your e-bike's throttle and electrical system healthy for years to come, reducing the chance of being stranded.
- Regularly Check Wires: Once a month, give the wires coming from your handlebars a quick visual check. Look for any signs of rubbing, pinching, or stretching, especially after a bumpy ride or after carrying the bike on a car rack.
- Keep Connectors Clean and Dry: If you ride in wet or dusty conditions, sometimes unplug the main connectors and check for dirt or moisture. Putting a small amount of dielectric grease can help waterproof the connections and prevent rust.
- Protect from Impact: Be careful of how you park or store your bike. Avoid leaning it on its throttle side, which can put pressure on the housing and internal parts. Be careful not to let the handlebars swing and hit a wall.
- Understand Your E-Bike's Use: E-bikes are changing how far and how often people ride. As studies show e-bike riders tend to ride for longer distances than regular cyclists, the parts are subject to more wear and tear. Regular check-ups become even more important with increased use.
Conclusion: Ride with Confidence
That feeling of confusion when your electric bicycle doesn't respond is frustrating, especially when online searches lead you to misleading terms like the electronic throttle control light. We hope this guide has cleared up the confusion, replacing that confusion with confidence.
You now understand that your e-bike operates on a simple, direct system: throttle, controller, and motor. You have a clear, step-by-step process to logically find problems, from a simple loose wire to a faulty part. By following these troubleshooting steps and doing basic preventive maintenance, you can solve most common throttle problems yourself. You are no longer just a rider; you are a more knowledgeable and empowered owner, ready to enjoy every ride.
Frequently Asked Questions
Q: Can I use my electric bicycle if the throttle isn't working but the pedal assist still works?
A: Yes, if your pedal assist system is working properly, you can still ride your e-bike safely. The pedal assist will provide motor power when you pedal, even though the throttle doesn't respond. This actually confirms that your motor and controller are fine, and the problem is specifically with the throttle circuit.
Q: How much does it typically cost to replace a faulty throttle on an electric bicycle?
A: Throttle replacement parts usually cost between $15-50 depending on your bike model and throttle type. If you're comfortable with basic wiring, you can often replace it yourself in about 30 minutes. Professional installation at a bike shop typically adds $30-60 in labor costs.
Q: Is it safe to ride my e-bike if the throttle sometimes works and sometimes doesn't?
A: An intermittent throttle can be unpredictable and potentially unsafe, especially if it suddenly engages when you don't expect it. It's better to diagnose and fix the problem before riding regularly. You can still use pedal assist mode if available, but avoid relying on the faulty throttle until it's repaired.
Q: Why does my throttle work fine when the bike is stationary but not when I'm riding?
A: This usually indicates a loose connection that gets disrupted by vibration during riding. Check all wire connections from the throttle to the controller, paying special attention to areas where wires might flex or move. The constant vibration of riding can cause intermittent contact in damaged connections.
Q: Can weather conditions like rain or extreme cold affect my e-bike throttle?
A: Yes, moisture can cause temporary throttle problems if it gets into connections, and extreme cold can affect battery performance and electronic components. Most quality e-bikes have weather-resistant components, but it's good practice to dry off connections after wet rides and store your bike in moderate temperatures when possible.
