How Compact Is a Folding Electric Bike? Folded Size Guide

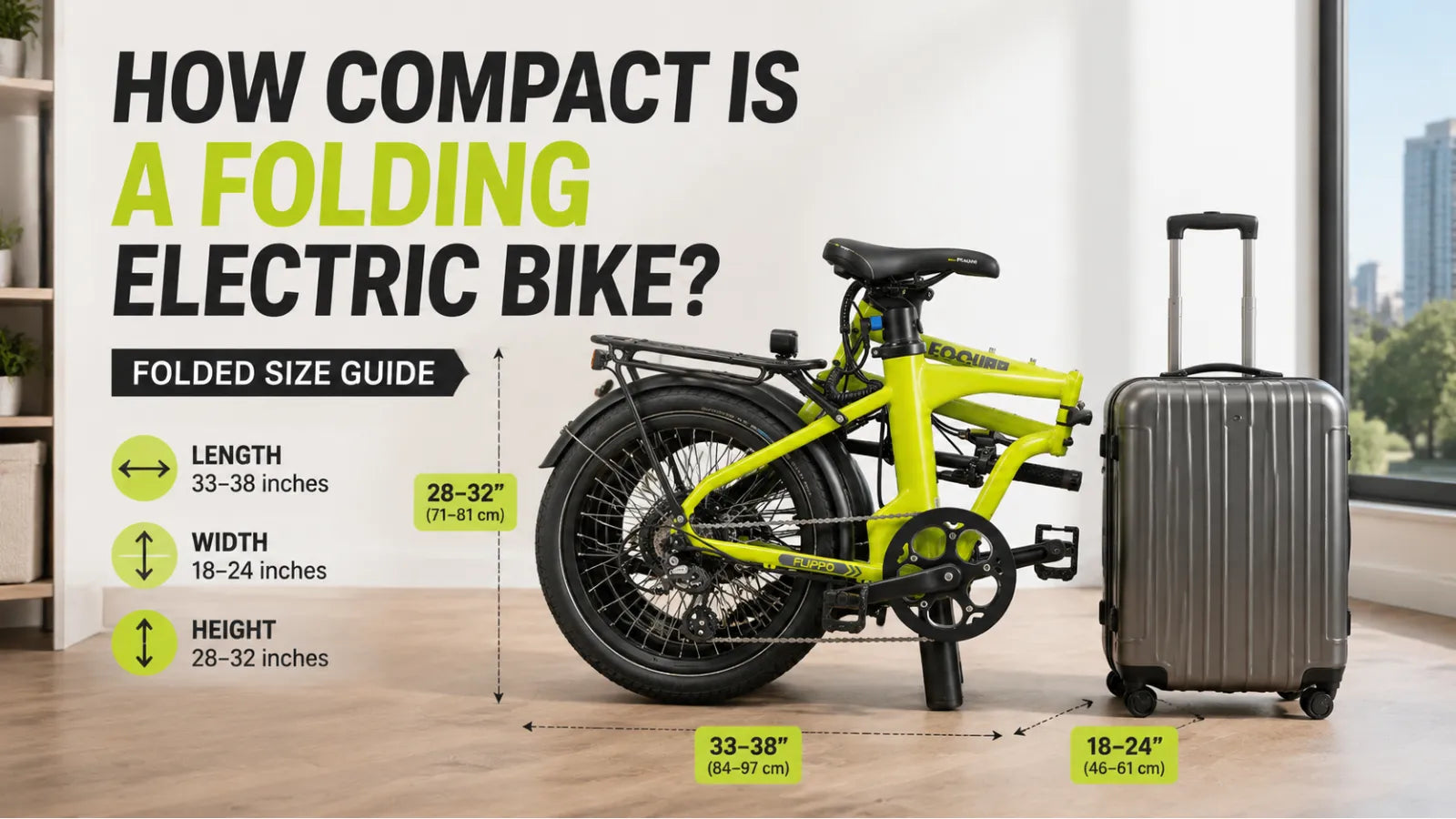

Let's establish a baseline first. Most popular folding electric bikes with 20-inch wheels fold down to a package that is roughly the size of a large suitcase or a small end table. While there are variations, you can expect a typical folding bike folded size to be within this range:
- Length: 33–38 inches (84–97 cm)
- Width: 18–24 inches (46–61 cm)
- Height: 28–32 inches (71–81 cm)
These dimensions are not universal though. As noted in Bicycling magazine's tests on various models, a bike's final size is heavily influenced by its wheel size and frame design. A model with 16-inch wheels will generally be more compact than a 20-inch model. Those with 24-inch wheels focus on ride comfort over portability, resulting in a larger folded package.
Understanding The Dimensions
When you look at a spec sheet, you'll see the folding electric bike dimensions listed as Length (L) x Width (W) x Height (H). Here's what each of those numbers means in the real world.
Folded Length
This is usually the longest measurement of the folded package. The length is the most critical dimension for determining if the bike will fit into a car trunk, a narrow hallway, or an RV storage bay. It's measured from the bike's front-most point to its rear-most point when completely folded.
Folded Width
Think of this as the "thickness" of the folded bike. This is arguably the most important dimension for tight storage spaces. A slim folded width allows the bike to slide into narrow spaces, such as between a wall and a cabinet, inside a closet, or under a desk at the office.
Folded Height
The folded height dictates whether the bike can slide under something, like an office desk or a workbench in your garage. It also determines if it will fit into a car trunk with a low ceiling or clear the opening of a smaller storage area.
Fitting in Your Car
One of the most common reasons to buy a folding ebike is for car trunk transport. But you can't assume it will fit based on your vehicle type alone. You must measure first.
Measure Your Trunk First
Before you buy, take five minutes to measure your trunk. This simple process can save you from a major headache later.
- Clear the Trunk: Start with a completely empty trunk for accurate measurements.
- Measure the Opening: Use a tape measure to find the height and width of the trunk opening. The bike must be able to pass through this space first.
- Measure Internal Space: Measure the usable length, width, and height inside the trunk. Pay close attention to wheel wells, sloped angles, or any other parts that reduce the total usable space.
- Compare and Confirm: Compare your measurements with the folding ebike dimensions listed by the manufacturer. We recommend leaving at least two inches of clearance on each side to make loading and unloading easier.
Car Type Compatibility
Here's a general guide for how a typical 20-inch folding electric bike fits into different vehicles. This is crucial for anyone looking for a folding ebike for RV trips or a folding ebike for car trunk convenience.
| Vehicle Type | Typical Fit | Key Considerations |
|---|---|---|
| Compact Sedan | Often Tight: | The trunk opening height is the biggest challenge. You may need to place the bike at an angle. Always measure first! |
| Mid-Size/Full-Size Sedan | Usually Yes: | Generally offers enough length and width. A standard 20-inch folding ebike is often a safe bet. |
| SUV / Hatchback | Almost Always Yes: | Ample space is available. The main challenge here can be the lift-over height and the weight of the e-bike. |
| RV / Van | Excellent Fit: | A compact folding electric bike is perfect for storage bays or inside the living area, a top choice for RV life. |
Home Storage Solutions
For those in apartments or condos, storage is key. A folding ebike for small spaces needs to disappear when not in use.
Apartment and Condo Storage
Common storage spots include entryway closets, the space under a staircase, or a corner of the living room. A bike with a folded width under 20 inches can often tuck neatly into a standard coat closet alongside jackets. The key is to check the width dimension against your available space.
Storing Under a Desk
This is a popular goal for office commuters who want to keep their bike nearby. The answer is yes, but typically only the most compact models will fit properly. Standard desk clearance is around 28-30 inches high. Many 20-inch wheel ebikes have folded heights of 28 inches or more, making it a very tight squeeze. Models with 16-inch wheels are far more likely to slide underneath with room to spare.
Office and Hallway Movement
Getting the bike into your apartment or office involves navigating elevators, doorways, and hallways. This is where practical design really shines. Some folded bikes have small built-in roller wheels, allowing you to wheel them around like luggage. Others must be carried everywhere. This is an important, often overlooked feature that greatly impacts the daily user experience.
Key Factors in Size
Not all folding ebikes are created equal when it comes to size. Several key design choices determine the final folding electric bike dimensions.
Wheel Size
This is the single biggest factor in determining folded size. Smaller 16-inch wheels allow for the most compact fold but can feel less stable on rough roads. Larger 24-inch wheels offer a ride closer to a standard bike but result in a much larger folded package. The 20-inch folding electric bike has become the industry standard because it offers a great balance of ride comfort and manageable folded size.
Frame and Folding Method
The way a bike folds greatly impacts its shape when folded. A simple mid-frame "bi-fold" design is common and creates a long, relatively flat package. More complex "tri-fold" methods, found on premium models, create a smaller, more square-shaped, and often thicker package that is easier to roll and carry.
Folding Parts
True compactness comes from the small details that matter. Folding handlebars and pedals can shave several inches off the final width, which is critical for narrow storage. A telescoping or fully removable seatpost is also essential for reducing the overall folded height and length.
Battery and Motor Placement
Most folding ebikes use a space-saving rear hub motor for efficiency. Mid-drive motors are rare as they take up valuable space in the frame needed for the folding mechanism. Likewise, frames with fully integrated batteries may have different folded dimensions than those with external, removable batteries.
Size Versus Weight
A compact folded size doesn't always mean it's easy to carry around. Weight is the other half of the portability equation that you need to consider.
Why Folders Are Heavier
A folding electric bike weight is typically between 50 and 70 pounds (23-32 kg). This is significantly heavier than a non-electric folding bike because of the added mass of the motor, the battery pack, and a frame that's been strengthened to handle the extra forces and the folding hinge.
Does a Removable Battery Help?
Yes, it helps significantly with weight management. A removable electric bike battery typically weighs 7-10 pounds (3-4.5 kg). Taking it off before lifting the bike into a car or up a flight of stairs makes the task much more manageable. It also allows you to charge the battery separately from the bike, which is a huge convenience for apartment dwellers.
How Long to Fold?
With a little practice, most owners can fold or unfold their electric bike in 15 to 60 seconds. Models designed for daily multi-modal commuting often feature faster, more user-friendly mechanisms. Those designed more for occasional storage in an RV or closet might take a few extra steps to complete.
Public Transport Use
A folding electric bike for commuting is an excellent tool for mixed-mode journeys that combine biking with other transport. Most bus and train systems allow folded bikes on board as regular luggage. However, it's wise to check your local transit authority's rules, as some have specific dimension or weight limits. For this use case, a bike that folds quickly and can be rolled easily is far superior to one that must be carried.
Ensuring a Perfect Fit
To avoid disappointment with your purchase, follow these three simple steps before buying.
Measure Your Space First
Before you even start shopping for a bike, measure the exact space where you plan to store it. This includes your car trunk, your closet, or the spot under your desk. Write the numbers down and keep them handy.
Check Folded Dimensions
Don't just look at the folding bike wheel size when comparing models. Compare the manufacturer's official folded dimensions (L x W x H) with your measurements carefully. A cleverly designed 20-inch bike can sometimes fold smaller than a poorly designed 16-inch one.
Think About Lifting
Consider how often you'll need to lift the bike versus just rolling it around. If you live on the third floor with no elevator access, the folding electric bike weight might be more important to you than its folded dimensions.
Leoguar Flippo Folded Size
The Leoguar Flippo is a prime example of a modern 20-inch folding electric bike designed for versatility in various situations. Its folded dimensions are 36.22" × 18.5" × 29.92" H, making it a practical choice. This specific folding bike folded size makes it a strong candidate for a variety of uses. The 34-inch length fits comfortably in the trunk of most mid-size sedans and SUVs, and the slim 19-inch width allows it to be stored in a closet without taking up all the space. At 29 inches high, it can slide under many workbenches and some taller desks.
Is It Worth It?
For anyone struggling with storage space, a folding electric bike is absolutely worth the investment. It solves the fundamental problem of where to keep a bike in a modern urban environment, an RV, or a crowded garage. It eliminates the need for a car rack and provides a secure storage solution by allowing you to bring the bike inside. The key is to do your research and choose a model whose dimensions and weight align with your specific needs and lifestyle.
Frequently Asked Questions
Do all 20-inch folding ebikes have the same folded size?
No, they don't have the same folded size at all. The frame design, folding mechanism, and components like handlebars and pedals all have a major impact on the final folded dimensions. Always check the specific L x W x H measurements for the exact model you are considering before making a purchase.
How much heavier is a folding e-bike than a non-electric one?
A folding e-bike is typically 20-30 pounds heavier than its non-electric counterpart. This extra weight comes from the battery (7-10 lbs), the motor (8-12 lbs), and the reinforced frame needed to support the additional components and folding mechanism.
Can a folding e-bike fit in a standard closet?
Yes, most folding e-bikes can fit in a standard closet. The critical dimension to check is the folded width of the bike. A bike with a folded width of 22 inches or less will generally fit into a standard closet, though you may need to store it at an angle depending on your closet's layout.
What is the smallest folding electric bike wheel size available?
The smallest common wheel size for adult folding electric bikes is 16 inches. These models offer the most compact folded package available, making them ideal for daily public transport commuters and those with extremely limited storage space at home or work.
How long does it take to fold and unfold a folding electric bike?
With a little practice, most owners can fold or unfold their electric bike in 15 to 60 seconds. The exact time depends on the specific folding mechanism and how often you use it. Models designed for daily commuting typically fold faster than those designed primarily for storage.
