What Disc Brake Bikes Really Cost to Maintain?
On most modern bikes, disc brakes are standard because they provide strong stopping power and work well in different weather conditions. But how much do bike disc brakes actually cost over time? The cost starts with the bike itself, but maintenance is also important. Hydraulic and mechanical disc brakes have different maintenance needs, so the long-term cost can vary quite a bit.
Our purpose is to provide you with practical solutions; a simple pad replacement can be a cheap do-it-yourself job and only cost between $20 and $40 for the parts. In contrast, having a professional carry out a complete hydraulic system replacement will cost between $200 and $300. Since the bike industry views the road disc setup as a means of progressing bike technology, it has become more important than ever to understand these costs.
This guide will provide:
- A comparison between hydraulic and mechanical disc brakes.
- A simple guide to regular upkeep you can handle at home.
- A detailed account of the costs involved in replacing parts and labour.
- Advice on whether to do it yourself or to hire a professional.
Hydraulic vs. Mechanical Brakes
If you want to understand the cost of maintenance, it is first necessary to know what type of system you have. Although all disc brakes function by pressing the pads against a rotor at the hub of the wheel, it is the way in which they achieve this that distinguishes them.
Mechanical disc brakes work by means of a steel cable, just as do conventional rim brakes. Upon pulling the brake lever, the cable is pulled and this causes the brake caliper to move. The principal benefits of such brakes are their simplicity and the ease with which they can be repaired. Almost any adjustment can be carried out using ordinary hex keys, which is why they are ideal for commuters and home mechanics.
Hydraulic disc brakes have a sealed system that is filled with mineral oil or DOT fluid. When the lever is pulled, the fluid is pushed through a hose to the caliper, where it forces the pistons and pads against the rotor. The system provides a great deal of power and better control, which is the precise control you have over your braking force. It also adjusts itself as the brake pads wear. That is the reason they are used as the standard in mountain biking and on high-performance road bikes, since they offer superior stopping power, particularly in poor conditions. Here's a direct comparison:
| Feature | Mechanical Disc Brakes | Hydraulic Disc Brakes |
|---|---|---|
| Stopping Power | Good | Excellent |
| Modulation/Feel | Firmer, less nuanced | Smoother, more precise |
| Maintenance | Simpler (cable adjustments) | More complex (bleeding) |
| Cost | Lower | Higher |
| Best For | Commuters, budget-conscious riders, DIY mechanics | Performance riders, mountain biking, wet conditions |
Routine Brake Maintenance Checks
The best method for ensuring safety and avoiding costly repairs is preventative maintenance; if you carry out a number of simple checks from time to time, your disc brakes will remain in perfect working order for many years.
The 2-Minute Pre-Ride Check
- When carrying out a visual inspection of the brake caliper, look at it from the top or from the side so that you can see the brake pad material. Most brake pads are equipped with wear indicator grooves. If the material appears to be thin—less than 1mm, or roughly the thickness of a dime—then you should plan to replace it.
- Squeeze the two brake levers firmly. They ought to seem solid and should come to a stop before reaching the handlebar. If a lever feels spongy, soft, or if it pulls all the way to the grip, then there is a problem—this is probably due to air in the line with hydraulic brakes or a stretched cable with mechanical brakes.
- Check for rubbing: Raise one wheel at a time and then turn it. It should rotate smoothly with only a slight whooshing noise; if there is any scraping, grinding, or regular chinging, this means that the rotor is touching the pads and will need to be adjusted.
Monthly Cleaning Routine
Oil, dirt and all kinds of grime are detrimental to disc brakes since they lead to a decrease in performance and produce a loud, high-pitched squeal. It is important to keeping your rotors and calipers clean.
Based on our experience, the simplest method is to use a clean cloth and isopropyl alcohol. You should wipe the braking surface of the rotor on both sides until the cloth comes away clean. It is important not to do the following: never apply bike-specific degreasers, lubricants, or soap to your rotors. Great care must be taken with overspray from chain lubricant; always cover your rear rotor with a cloth when you are lubricating the chain. When your pads become contaminated, you will know because of the terrible noise and the lack of power. In many cases they cannot be repaired and will have to be replaced.
With mechanical brakes, it may be necessary from time to time to tighten the cable since it tends to stretch. You can easily do this by turning the barrel adjuster at the point where the cable enters the brake lever or caliper.
When to Replace Components
Since all the parts that make up the brakes are consumable, they wear at different speeds. If you know the signs that indicate wear, you'll know when to replace the parts and thus save money while also making sure your bike remains safe.
Brake Pads
- The braking material should be worn down to a thickness of 1mm or less and you should not wait until you can hear the metal backing plate grinding against the rotor.
- You notice a big and clear drop in how well the brakes work.
- There is a sound like metal on metal. This is a serious warning sign that the pad material has entirely disappeared and that you are damaging the rotor.
- The pads have become contaminated with oil and this does not improve their performance.

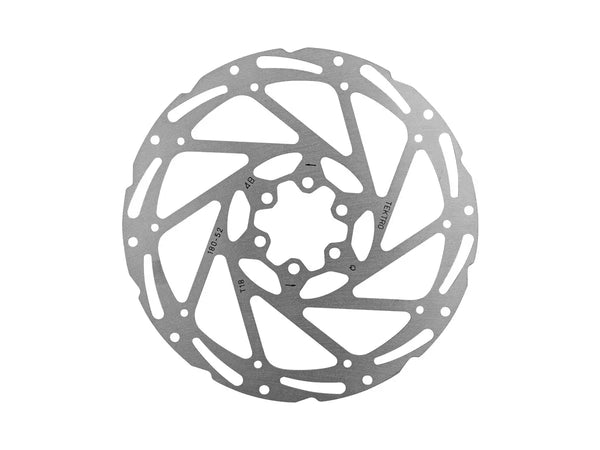

Brake Rotors
- Most rotors are marked with a minimum thickness, usually indicated as "Min. TH 1.5mm"; they generally have a thickness of either 1.8mm or 2.0mm. When they wear down to this minimum thickness they have to be replaced since they may overheat and fail.
- A rotor which has heavy scoring, has a dished or concave surface due to wear, or can be seen to be bent or warped should be replaced; although a bent rotor can at times be straightened, a worn or warped one cannot.
Hydraulic Fluid
- What is a Bleed? Bleeding consists in getting rid of the old fluid and any air bubbles that are in the system and then replacing it with new fluid.
- As for bleeding the brakes: we suggest that you have your hydraulic brakes bled at least once every year as a form of preventative maintenance. In the case where you ride a lot, under difficult conditions, or are a heavy brake user, you might find it necessary to do this more frequently. Whenever your brake lever feels soft, then it's time to bleed the brakes.
Real-World Ownership Costs
If you want to plan a budget for owning a bike it's useful to know the possible costs since prices depend on the brand (such as Shimano, SRAM, and Tektro) and on the level of the components, although this chart provides a realistic average for both do-it-yourself and professional servicing.
| Service / Part | DIY Parts Cost (per wheel) | Professional Labor Cost (per wheel) | Total Pro Cost (per wheel) | Notes |
|---|---|---|---|---|
| Mechanical - Pad Replacement | $15 - $30 | $15 - $25 | $30 - $55 | The easiest and most common DIY job. |
| Mechanical - Cable/Housing | $10 - $20 | $20 - $30 | $30 - $50 | Needed when the cable is frayed or sticky. |
| Hydraulic - Pad Replacement | $20 - $40 | $20 - $30 | $40 - $70 | Simple DIY, but be careful of contamination. |
| Hydraulic - Brake Bleed | $25 - $40 (for bleed kit) | $30 - $50 | $30 - $50 (plus fluid) | Messy; many riders prefer a professional for this. It helps to understand how this all goes together. |
| Rotor Replacement (Either) | $25 - $60+ | $15 - $25 | $40 - $85+ | Price varies greatly with rotor quality and size. |
| Full System Replacement | $50 - $100+ (Mechanical) | $75 - $150+ | $125 - $250+ | A major repair or a performance upgrade. |
DIY vs. Professional Service
A major advantage of today's bicycles is the ease with which they can be maintained. If you have some tools and a bit of confidence, you can look after the usual maintenance jobs yourself.
When to DIY
A home mechanic who has basic tools can easily carry out the replacement of the pad and the rotor. It is absolutely essential for all owners of disc brakes to carry out regular cleaning. Not only does doing these jobs yourself save money, it also increases your knowledge of your bicycle.
When to Call a Pro
If you're undertaking a hydraulic brake bleed for the first time, we advise that you get professional assistance since it can be both messy and frustrating without the appropriate tools and experience. When a brake lever feels spongy or when you're uncomfortable using tools, or if a problem still remains after you've tried to repair it yourself, a reliable mechanic is indeed worth their weight in gold.

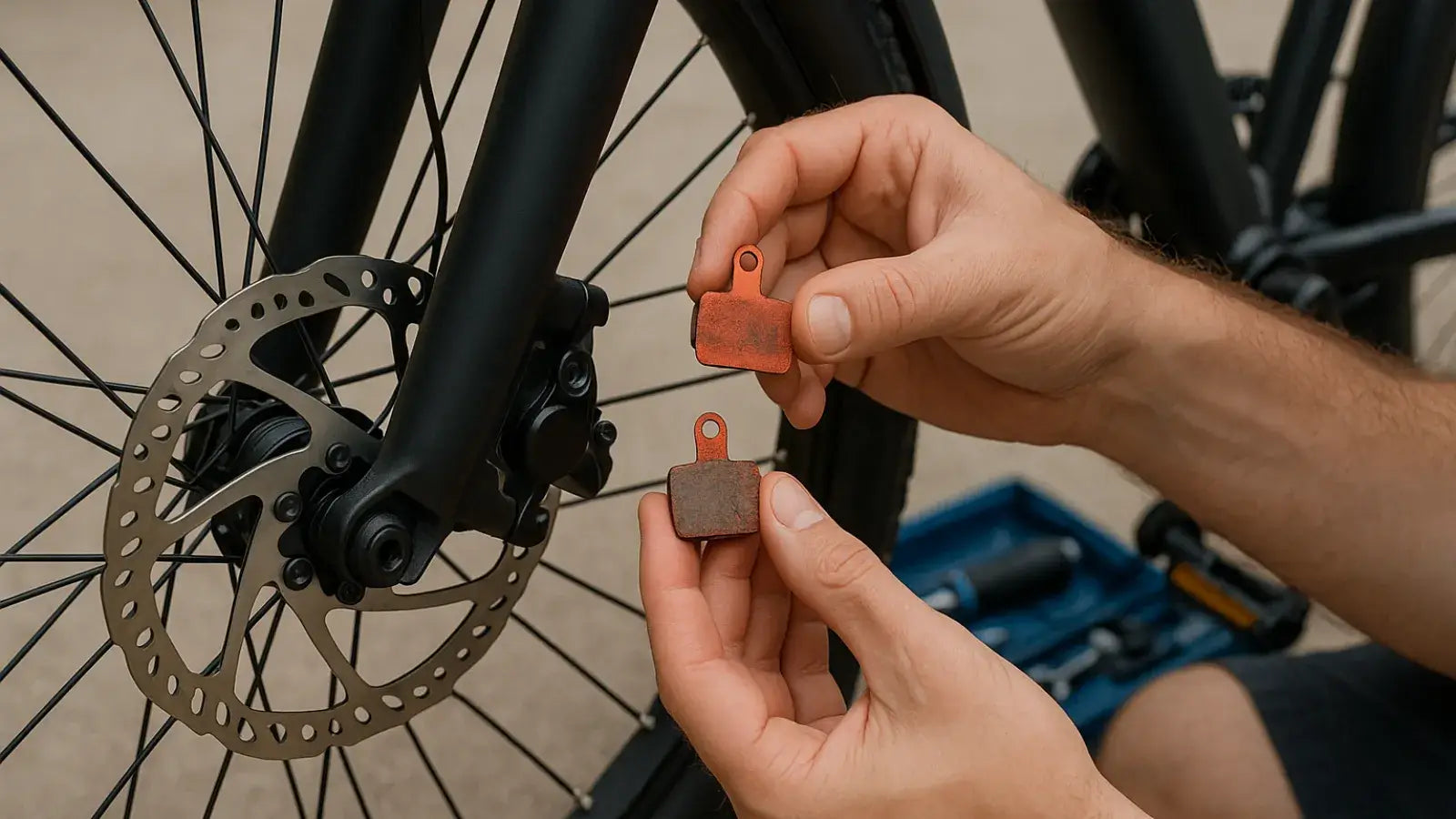

A Simple Guide to Your First Pad Replacement
For the preparation, collect all the necessary items: a set of hex keys, your new brake pads (be certain that they are the right model for your brakes), a piston press or a clean plastic tire lever, isopropyl alcohol, and some clean rags. The first step is to take the wheel off the bicycle.
Take the pads out: Examine the caliper. The pads are held in place by either a retaining pin with a small clip or by a threaded bolt. Use pliers to remove the clip and then pull the pin out, or simply unscrew the bolt. The old pads should now be loose and can be pulled out of the caliper, making sure to note the way both the pads and the spring between them are oriented.
The Pistons should be reset since your new pads are thicker than the ones you have just taken out. To allow room for them, you have to push the caliper's pistons back into the caliper body. Do not use a screwdriver for this as it might damage the pistons; instead, use a special piston press tool or the flat, wide end of a clean plastic tire lever. Each piston should then be gently and slowly pushed until it is level with the inside surface of the caliper body.
To fit the new pads, place the metal spring between the two pads so that it looks exactly like the old pair that you took out. Carefully push the new pad assembly into the opening of the caliper, making sure that the friction material is directed inward. Then reinsert the retaining pin or bolt and fasten it using its clip.
Fit the wheel and the bed-in brakes: Place the wheel onto the bike again. The rotor should glide between the new brake pads without making contact. Pull the brake lever a few times; it will feel soft at first but will then become firm as the pistons settle into position. The final and most important step is to carry out the bed-in procedure for the new pads. Locate a safe and open area and ride at a moderate speed (10 to 15 mph). Firmly and smoothly apply one brake until the bike has almost come to a stop, without causing the wheel to lock. Carry out this action 10 to 15 times. Repeat the same procedure with the other brake. This process involves transferring a layer of pad material onto the rotor, which is necessary for attaining maximum performance and for preventing noise.
Good brakes are not only about braking power since they also contribute to safety, reduce the need for maintenance, and result in money savings over time. The Leoguar disc brake replacement eBike, is constructed using durable parts that keep servicing costs low at the same time as providing you with reliable and confident braking on every journey.
Frequently Asked Questions
1. Q: How frequently should you replace your disc brake pads?
A: It all depends on the way you ride and the conditions you encounter, but generally speaking most riders will need to replace their pads every 500 to 1000 miles; you should check them once a month and substitute them when the material has been worn down to 1mm in thickness.
2. Q: Are brake pads capable of being used on my disc brakes?
A: No, brake pads are designed for your particular type of brake. To make sure you buy the right replacement pads, you should always verify your brake manufacturer and model number.
3. Q: Why do my disc brakes squeal?
A: When squealing occurs it is generally a sign that the pads or rotors are contaminated. Remove the contamination by cleaning the rotors with isopropyl alcohol and a clean cloth. However, if the noise still persists, then the pads are probably contaminated and will need to be replaced.
4. Q: How can I tell if my hydraulic brakes need bleeding?
A: If your brake lever feels spongy, soft, or pulls closer to the handlebar than usual, your brakes likely need bleeding. This should be done at least once a year as preventative maintenance.
5. Q: Is it worth upgrading from mechanical to hydraulic disc brakes?
A: If you ride in wet conditions, do a lot of mountain biking, or want the best possible braking performance, hydraulic brakes are worth the upgrade. However, mechanical brakes are perfectly adequate for commuting and casual riding.
